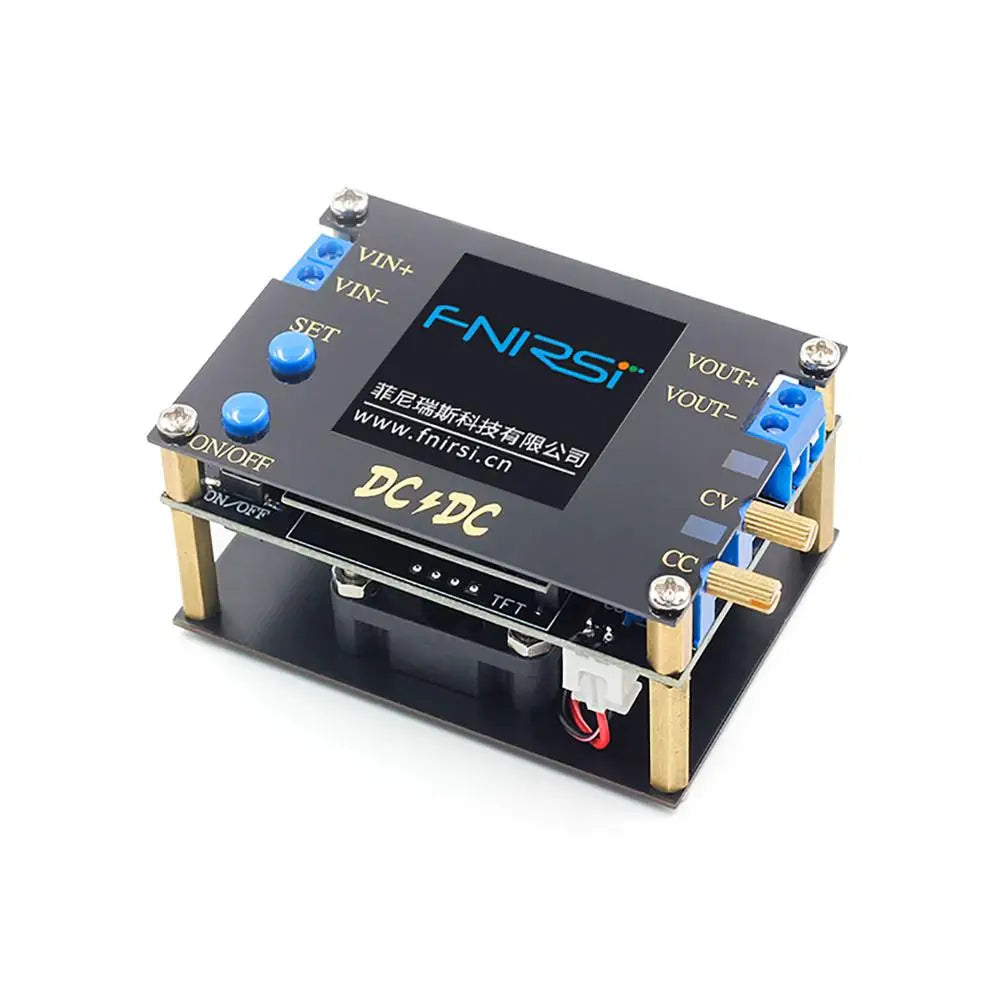

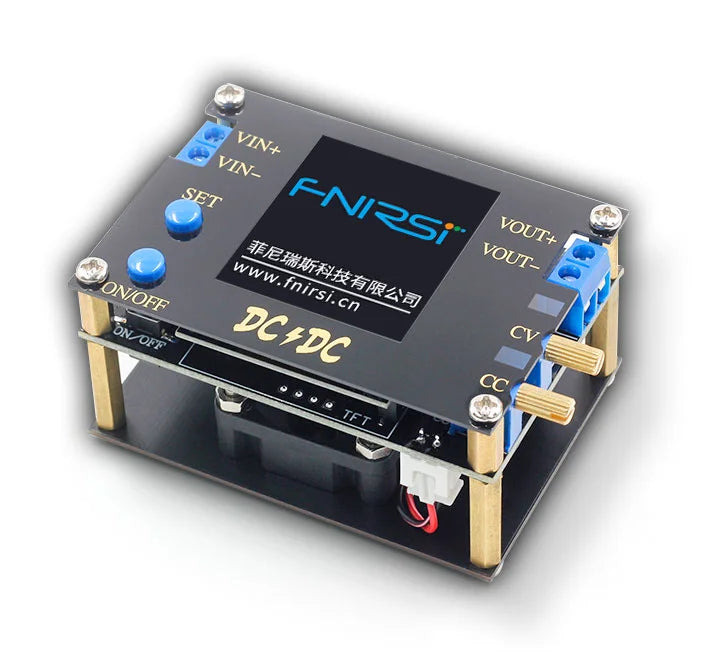

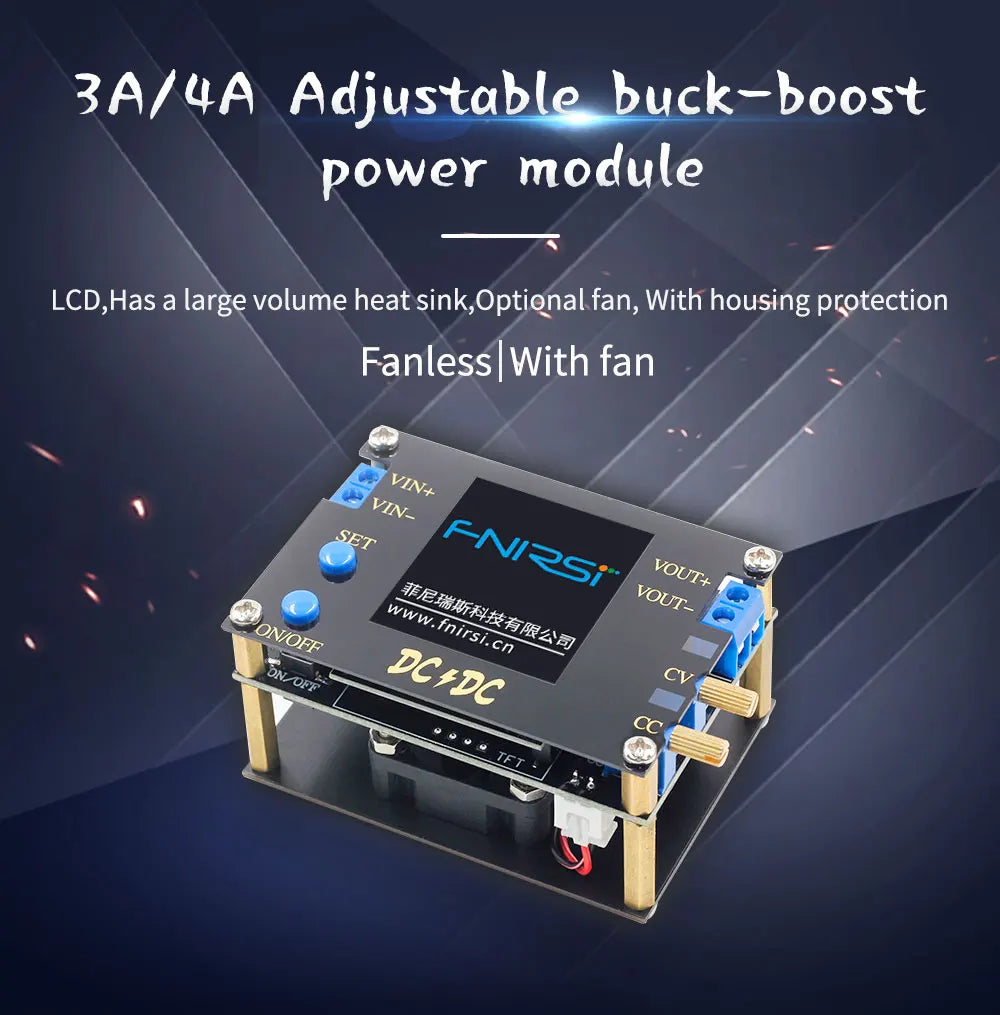

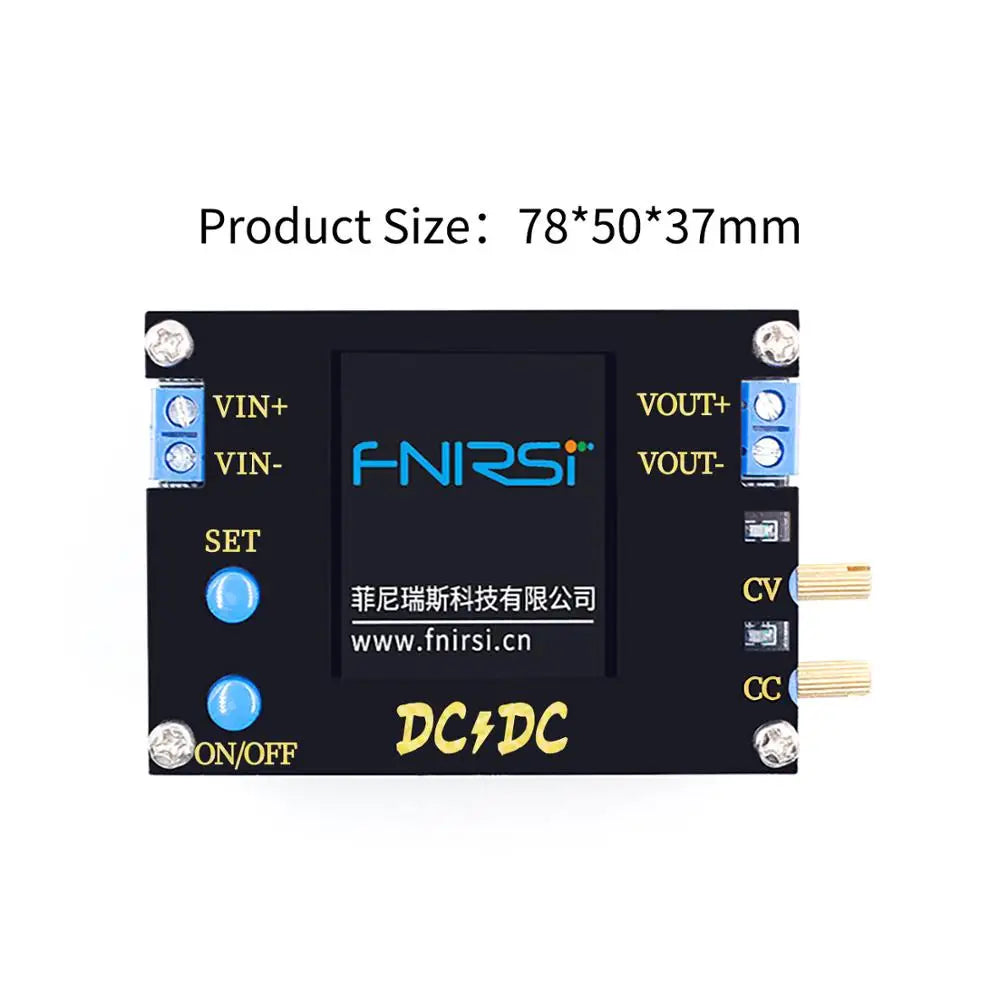

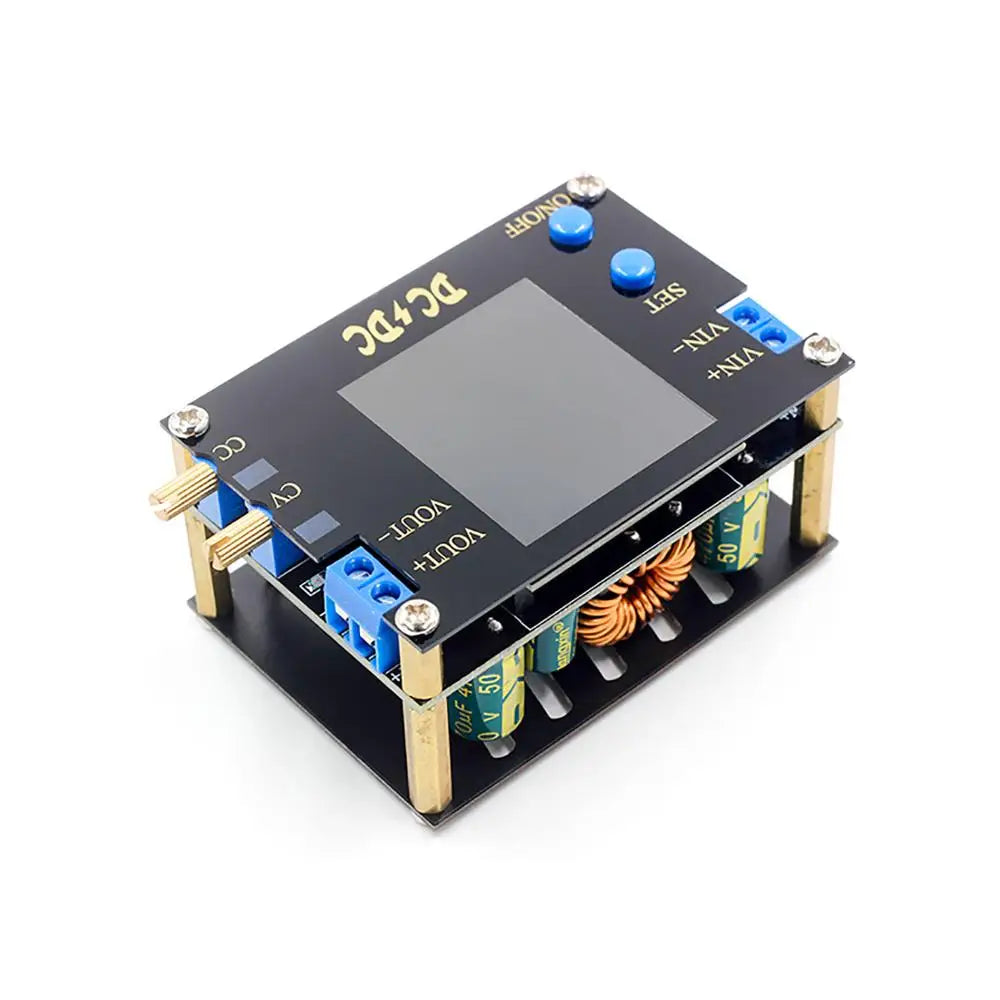

4A NC Lifting and Adjustable Power Module

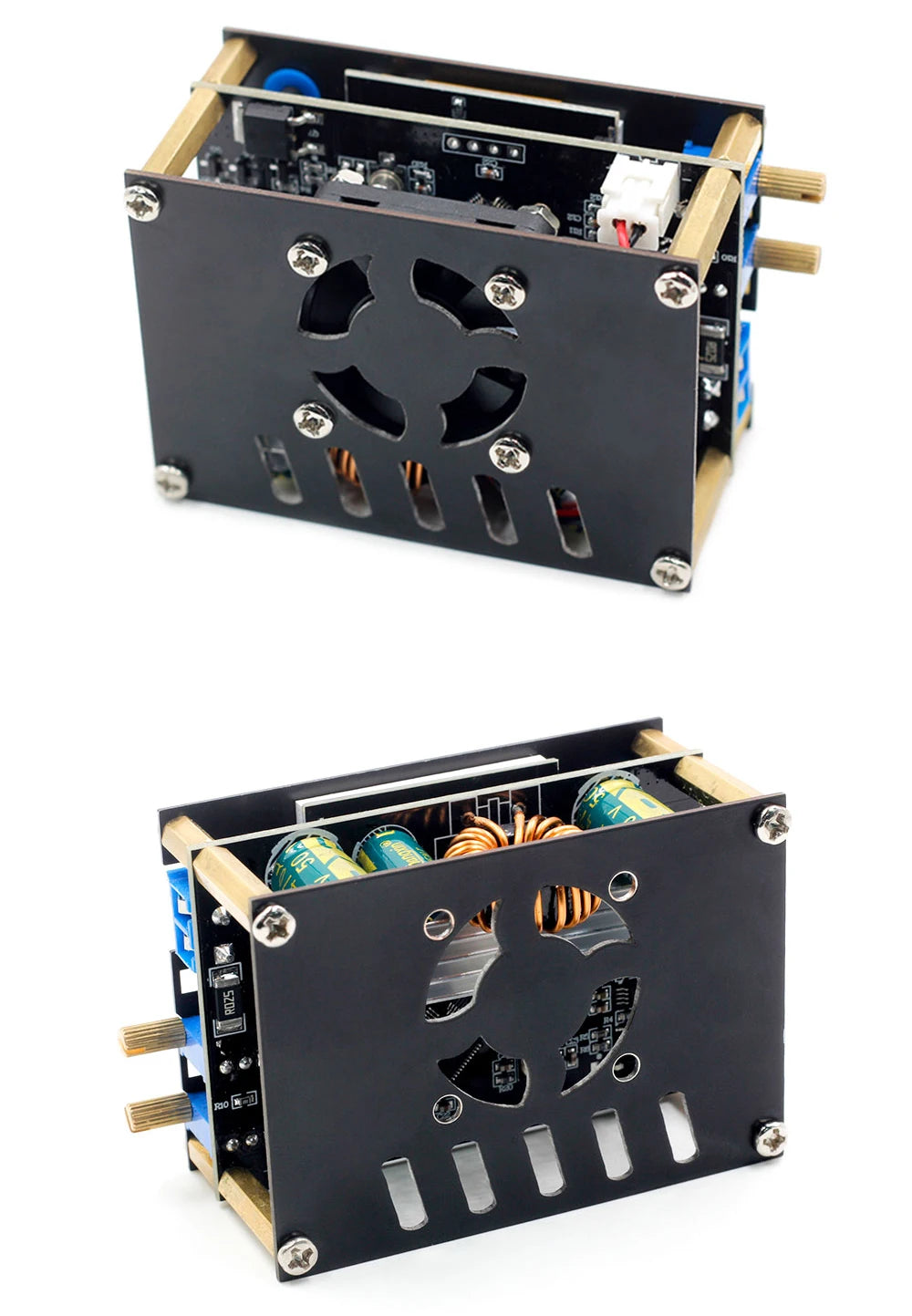

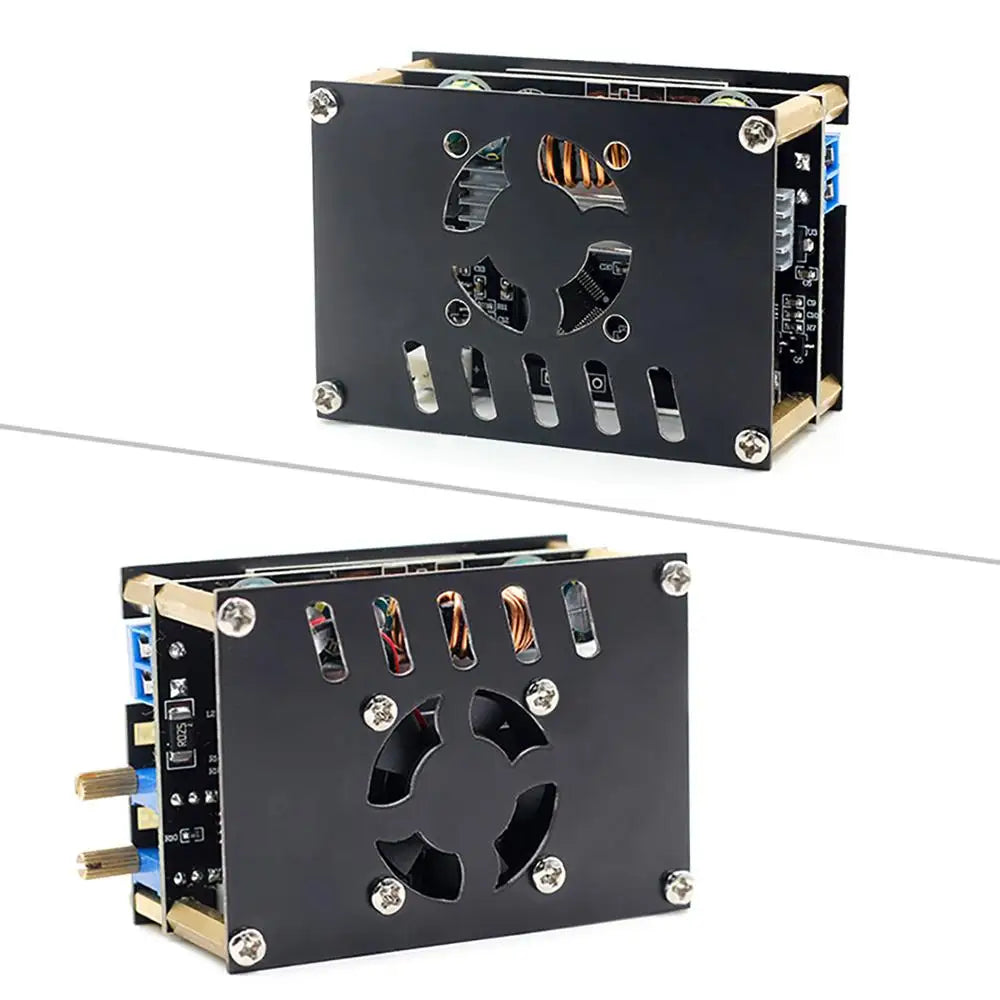

LCD,Has a large volume heat sink,Optional fan, With housing protection

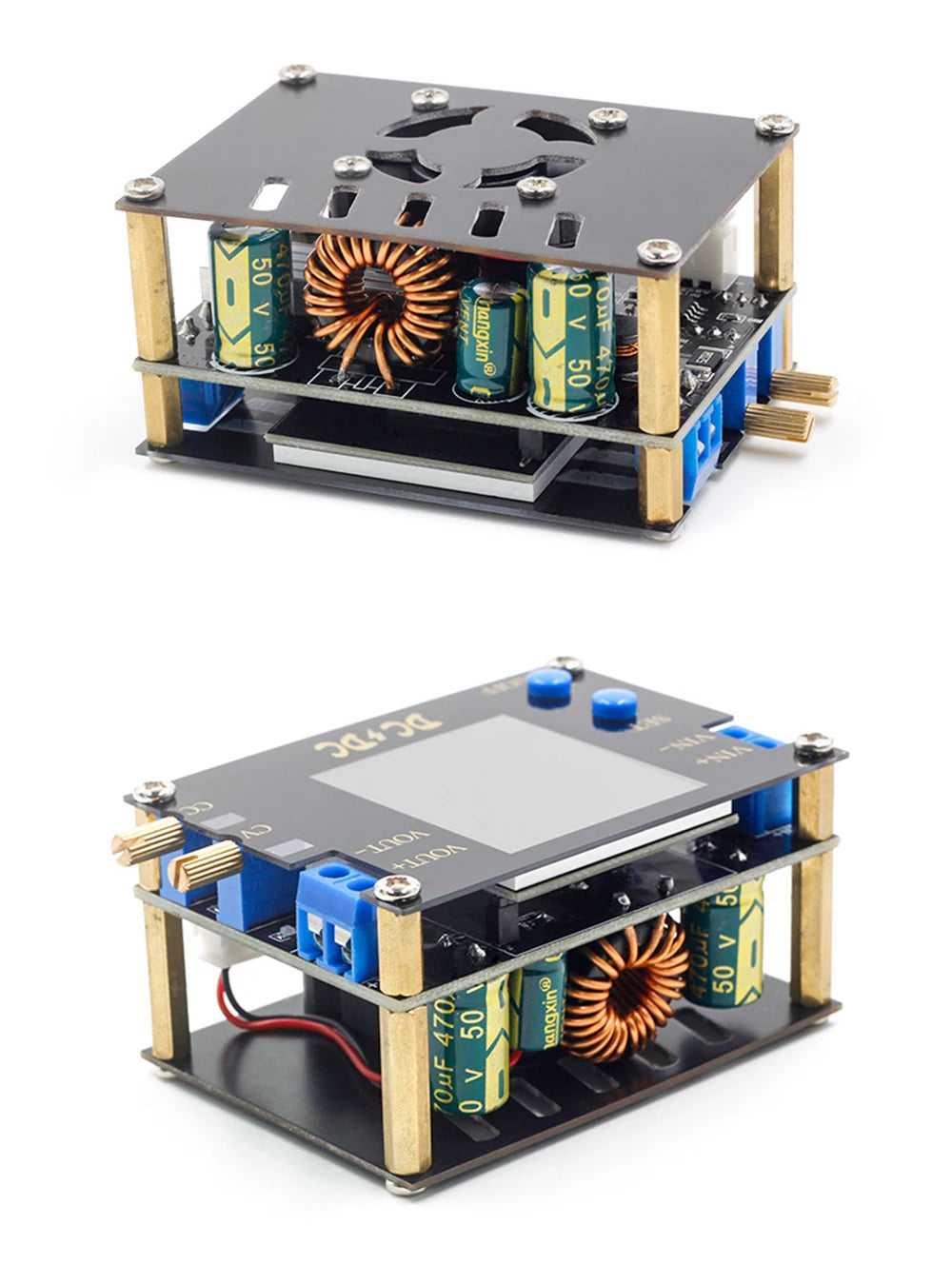

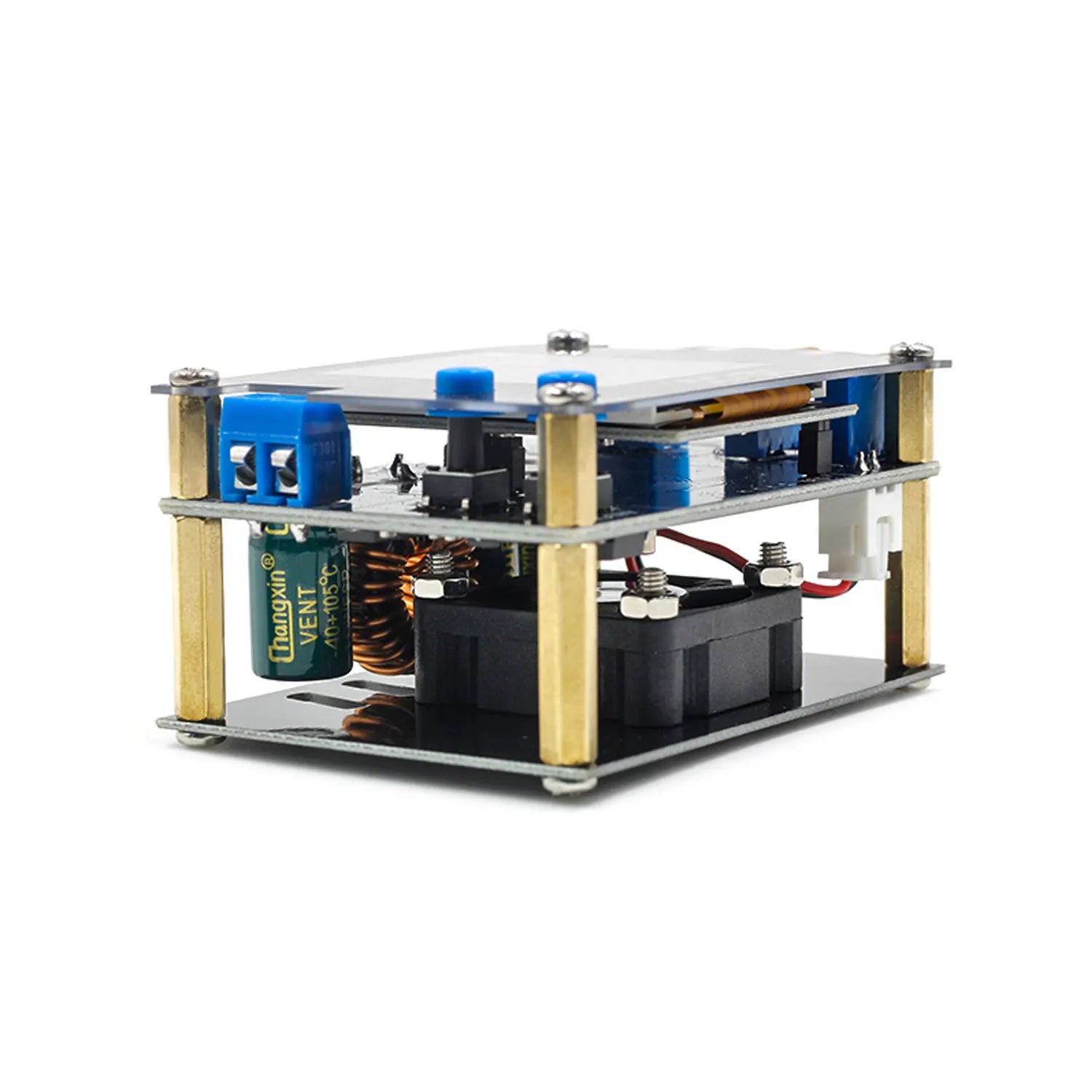

With fan / Fanless

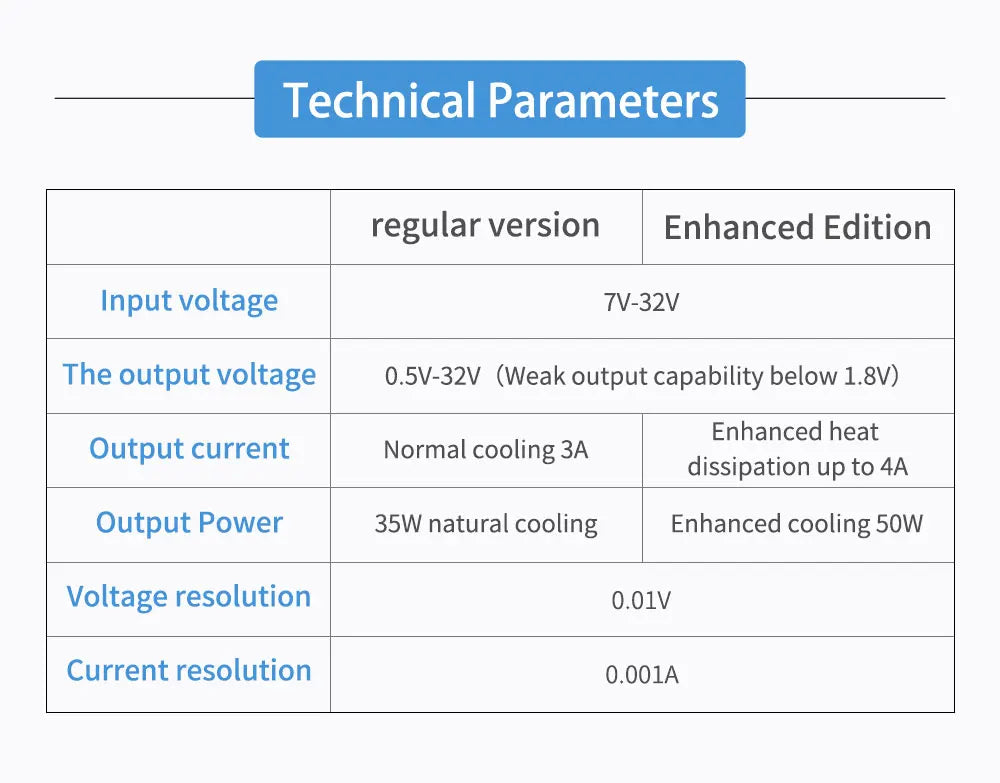

Technical Parameters

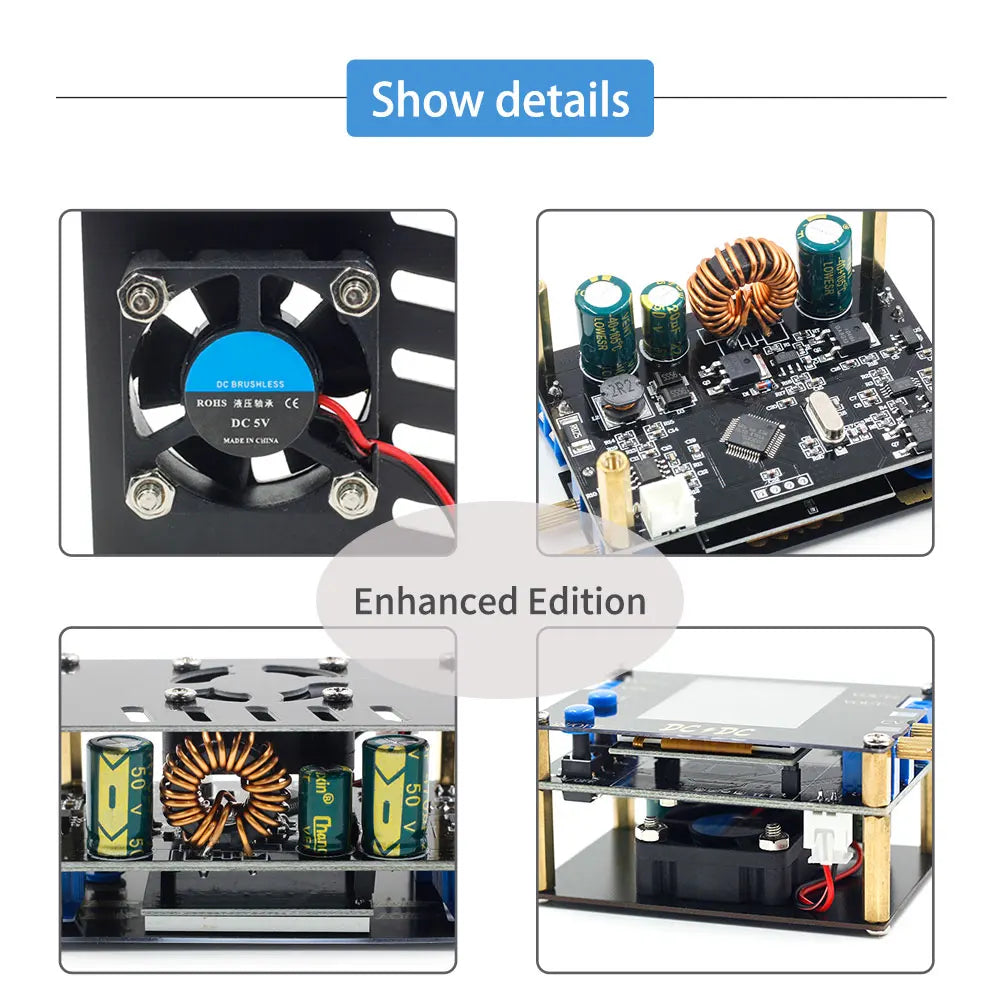

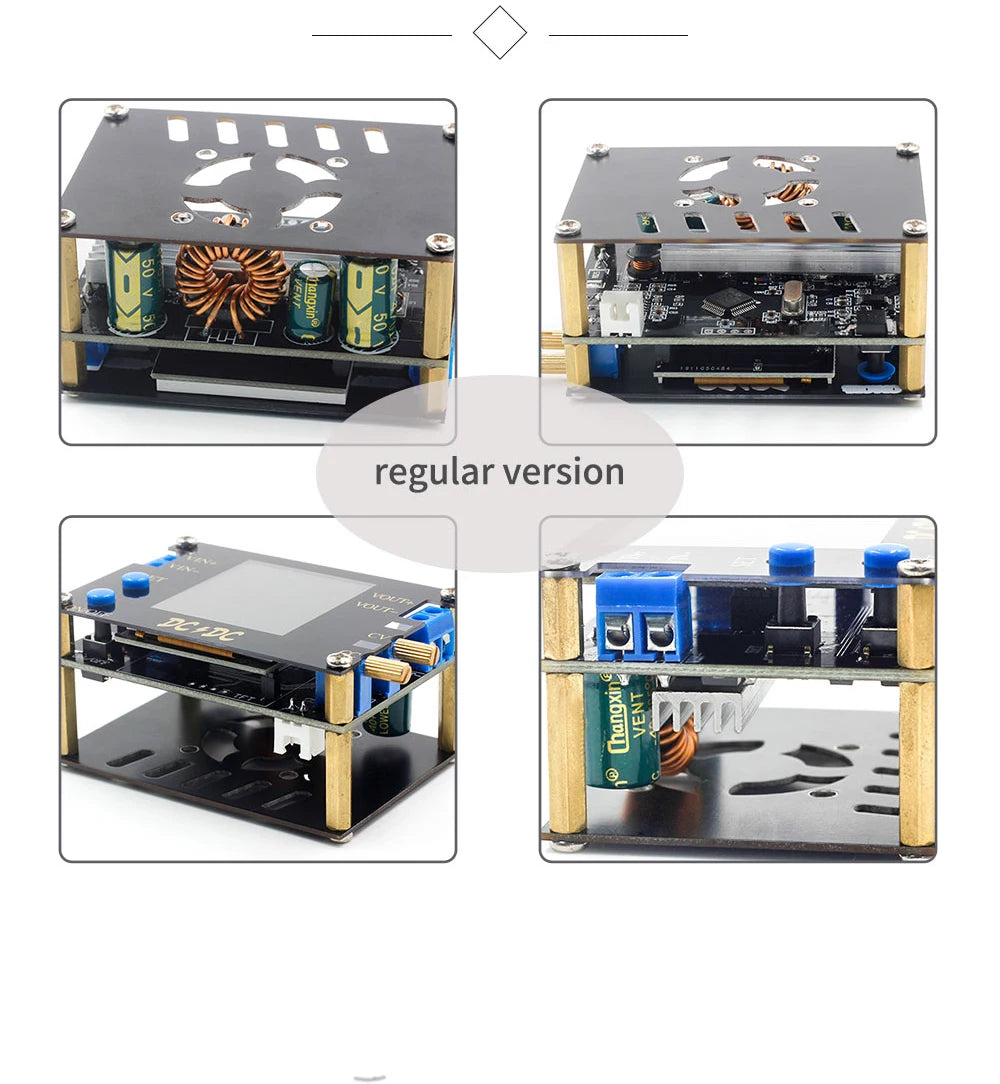

	regular version	Enhanced Edition
Input voltage	7V-32V
The output voltage	0.5V-32V(Weak output capability below 1.8V)
Output current	Normal cooling 3A	Enhanced heat dissipation up to 4A
Output Power	35W natural cooling	Enhanced cooling 50W
Voltage resolution	0.01V
Current resolution	0.001A

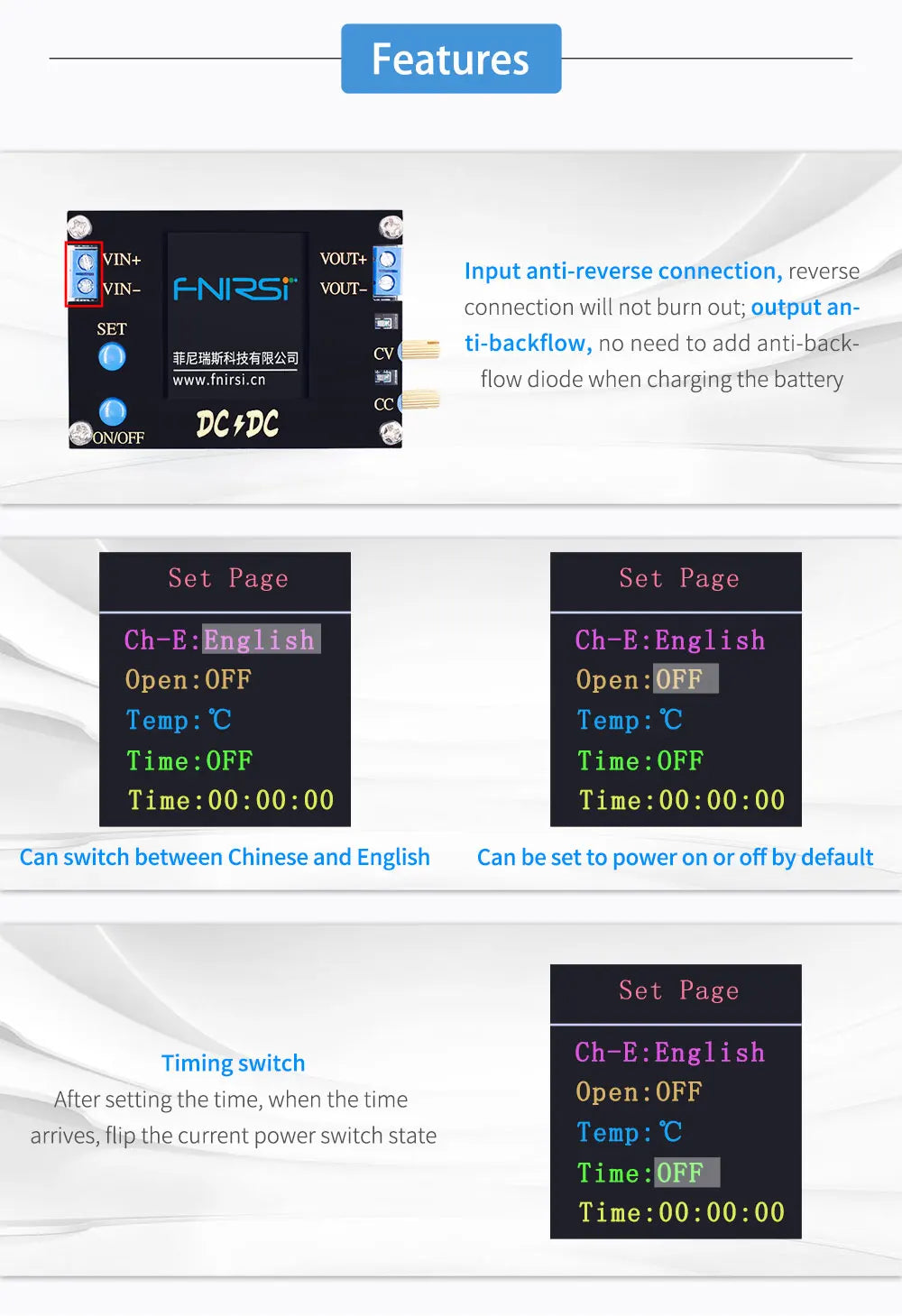

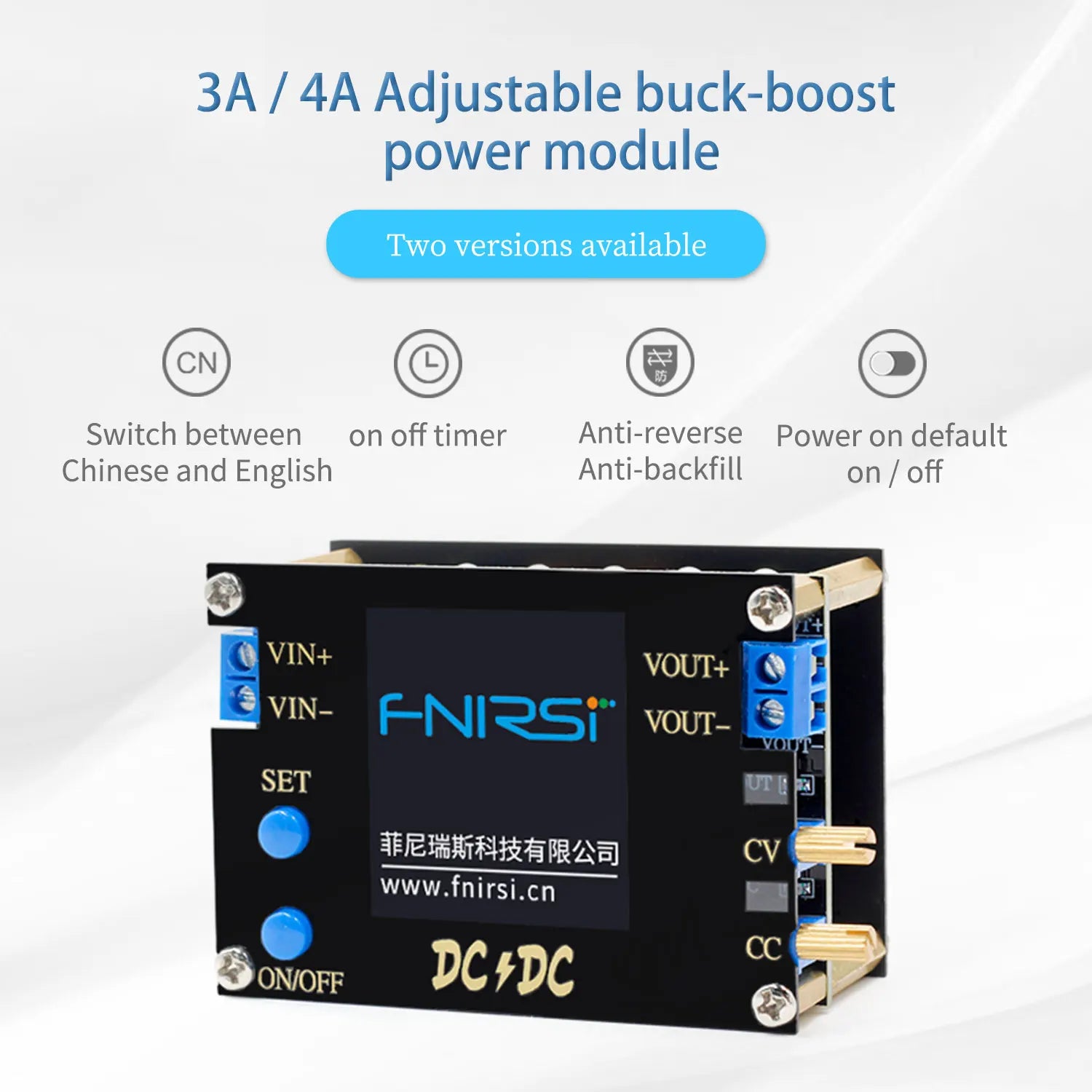

Features

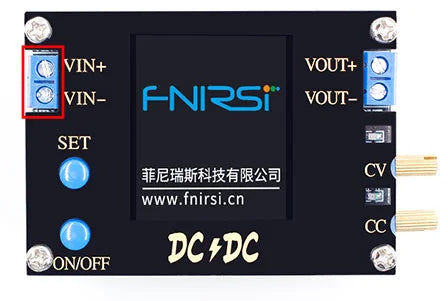

Input anti-reverse connection, reverse connection will not burn out; output anti-backflow, no need to add anti-backflow diode when charging the battery

 Can switch between Chinese and English

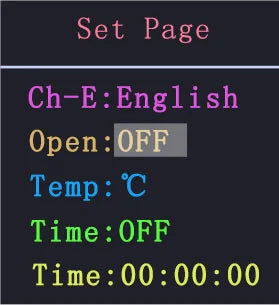

 Can be set to power on or off by default

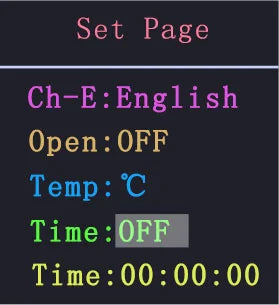

Timing switch,After setting the time, when the time arrives, flip the current power switch state

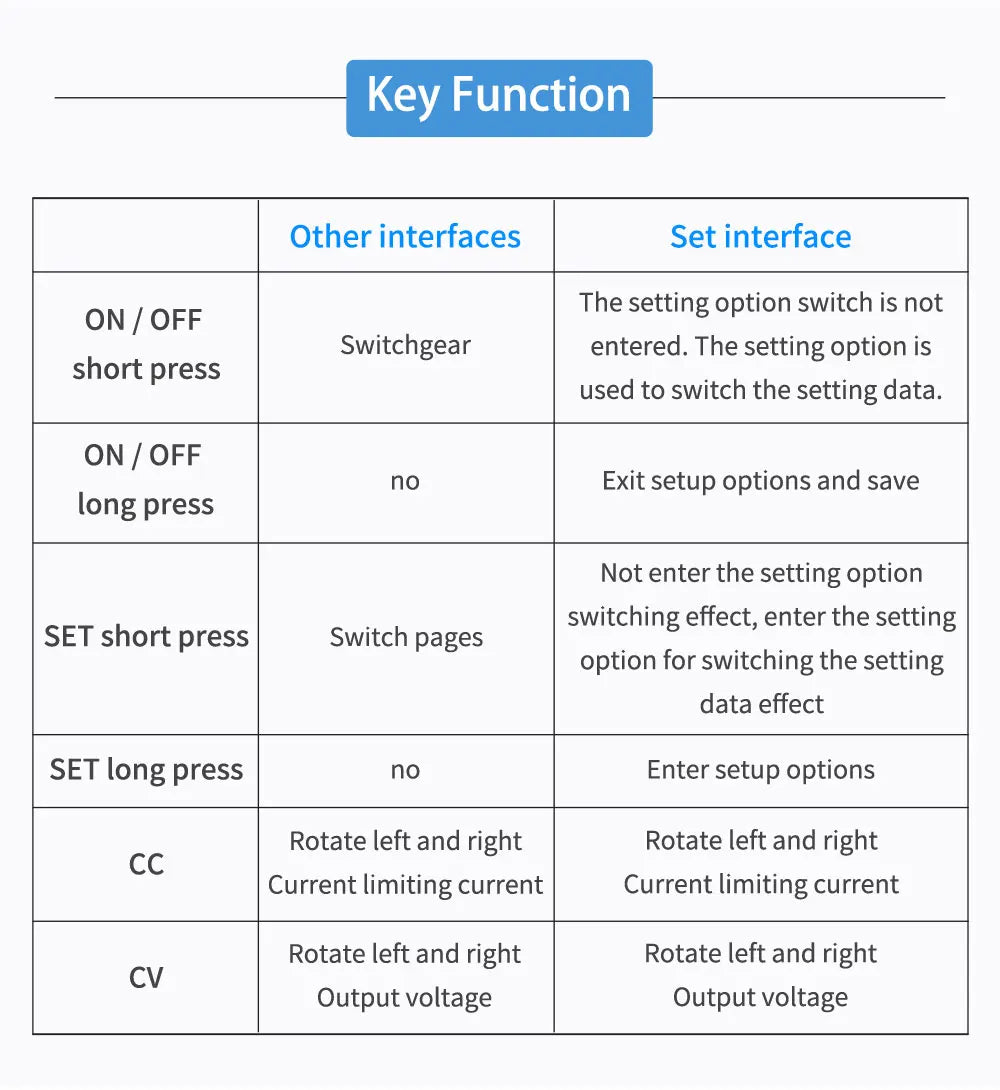

Key Function

	Other interfaces	Set interface
ON / OFF short press	Switchgear	The setting option switch is not entered. The setting option is used to switch the setting data.
ON / OFF long press	no	Exit setup options and save
SET short press	Switch pages	Not enter the setting option switching effect, enter the setting option for switching the setting data effect
SET long press	no	Enter setup options
CC	Rotate left and right Current limiting current	Rotate left and right Current limiting current
CV	Rotate left and right Output voltage	Rotate left and right Output voltage

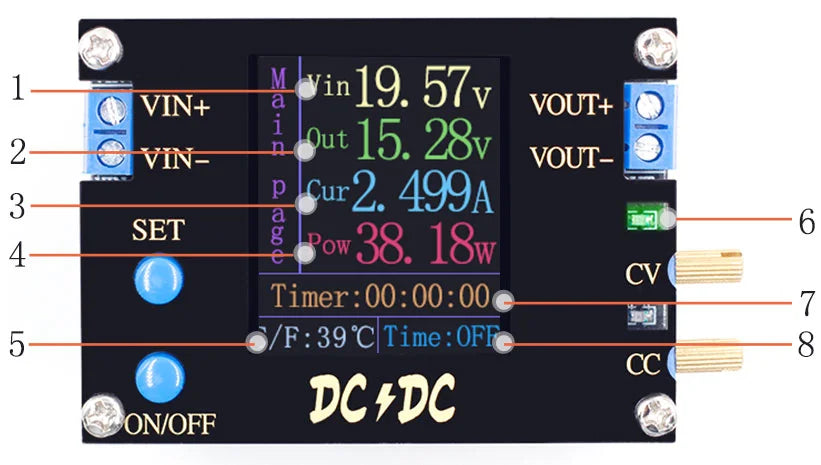

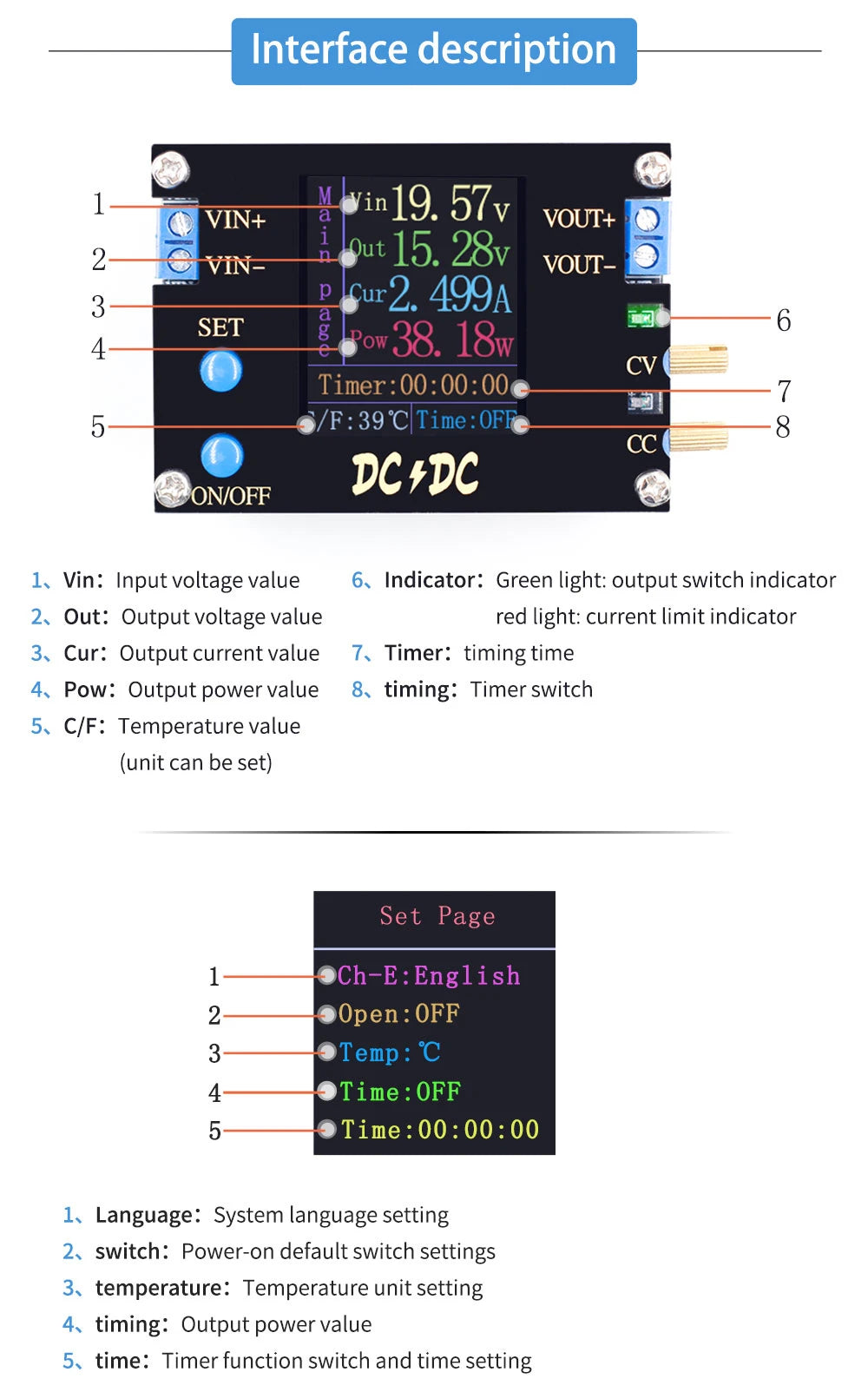

Interface description

1,Vin:Input voltage value

2,Out:Output voltage value

3,Cur:Output current value

4,Pow:Output power value

5,C/F:Temperature value (unit can be set)

6,Indicator:Green light: output switch indicator

            red light: current limit indicator

7,Timer:timing time

8,timing:Timer switch

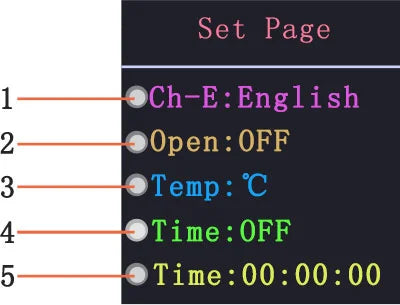

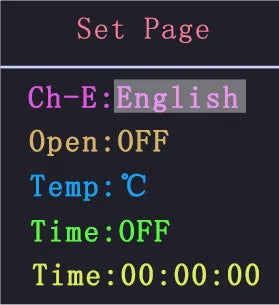

1,Language:System language setting

2,switch:Power-on default switch settings

3,temperature:Temperature unit setting

4,timing:Output power value

5,time:Timer function switch and time setting

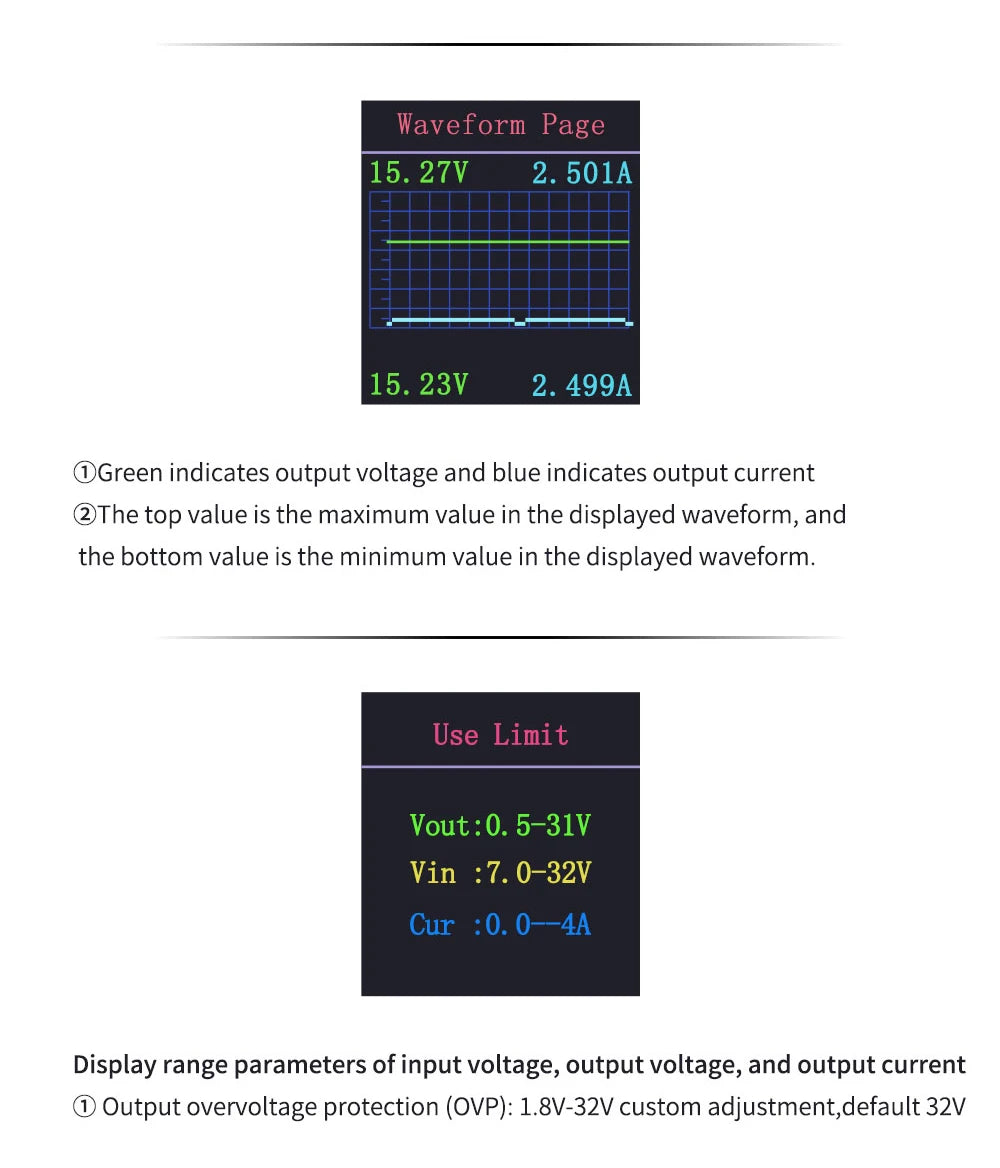

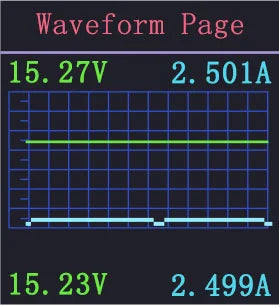

①Green indicates output voltage and blue indicates output current;

②The top value is the maximum value in the displayed waveform, and the bottom value is the minimum value in the displayed waveform.

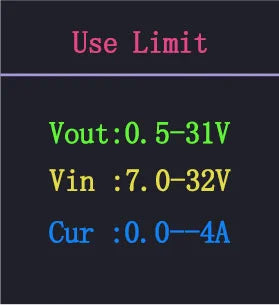

Display range parameters of input voltage, output voltage, and output current

① Output overvoltage protection (OVP): 1.8V-32V custom adjustment,default 32V
