FNIRSI DSO-TC3 Portable Digital Oscilloscope Transistor Tester 3 in 1 Multi-function Multimeter Diode Voltage LCR Detect PWM Out
FNIRSI DSO-TC3 Portable Digital Oscilloscope Transistor Tester 3 in 1 Multi-function Multimeter Diode Voltage LCR Detect PWM Out
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: FNIRSI
FNIRSI Model: DSO-TC3
Origin: Mainland China
DIY Supplies: ELECTRICAL
AC Voltage: 10:1 probe: 800Vpp (±400V)
Display Type: Digital display
DC Voltage: 10:1 probe: 800Vpp (±400V)
AC Current: NO
Measuring Resistance Range: 0.01Ω - 50MΩ
Certification: CE
DC Current: NO
Measuring Capacitance Range: 25pF - 100mF
Operating Mode: Automatic / Manual
Model Number: FNIRSI DSO-TC3
Is Smart Device: no
Measuring Inductance Range: 10uH - 1000uH
Dimensions: 10cm*8cm*3cm
Operating Temperature: 0 - 40 ℃

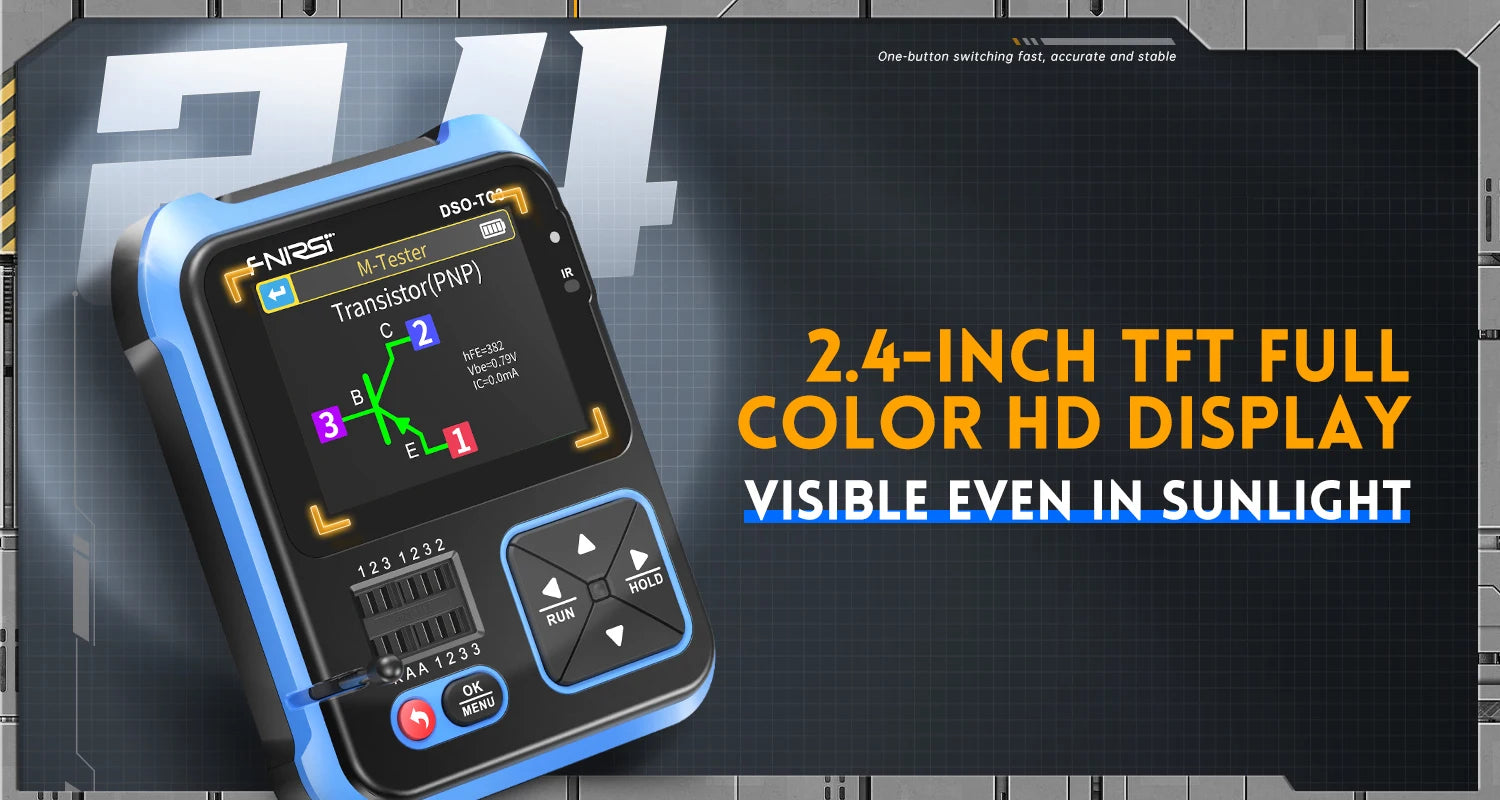

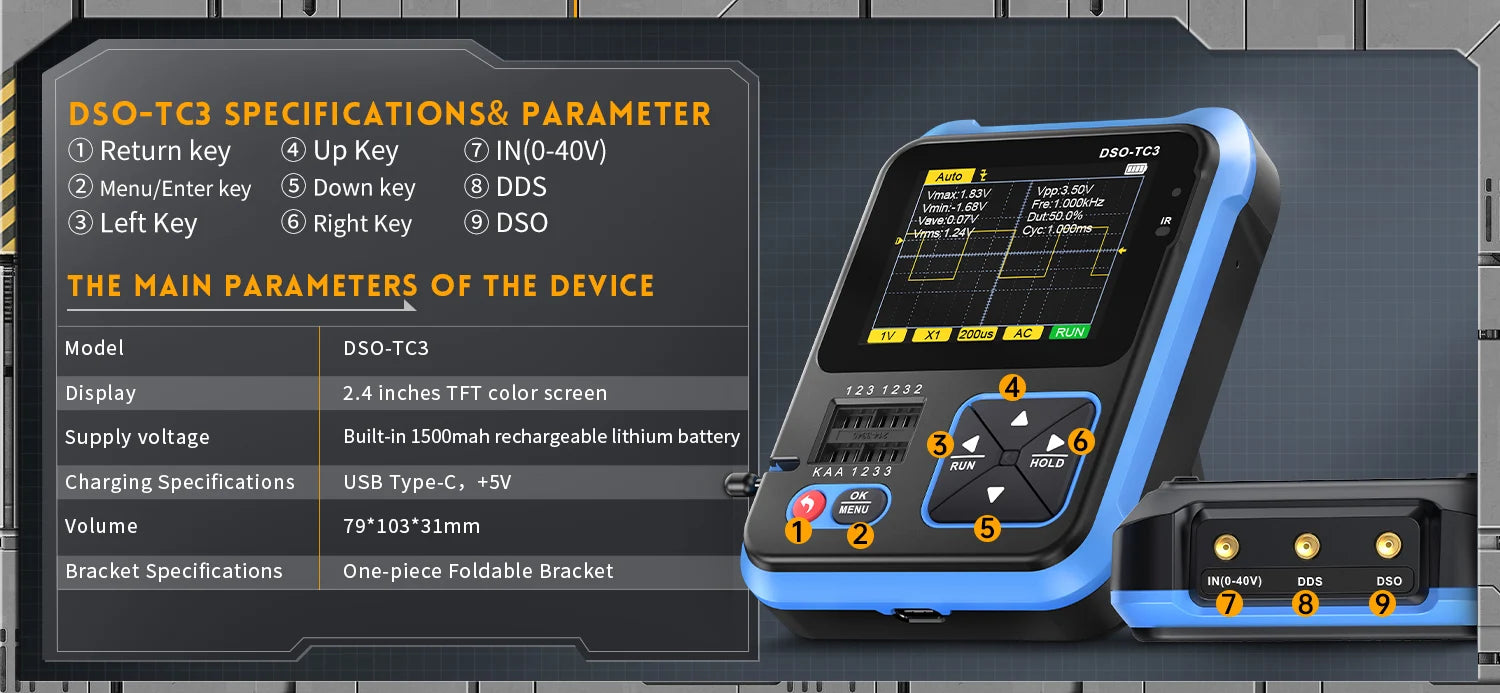

Display screen: 2.4 inch TFT color screen

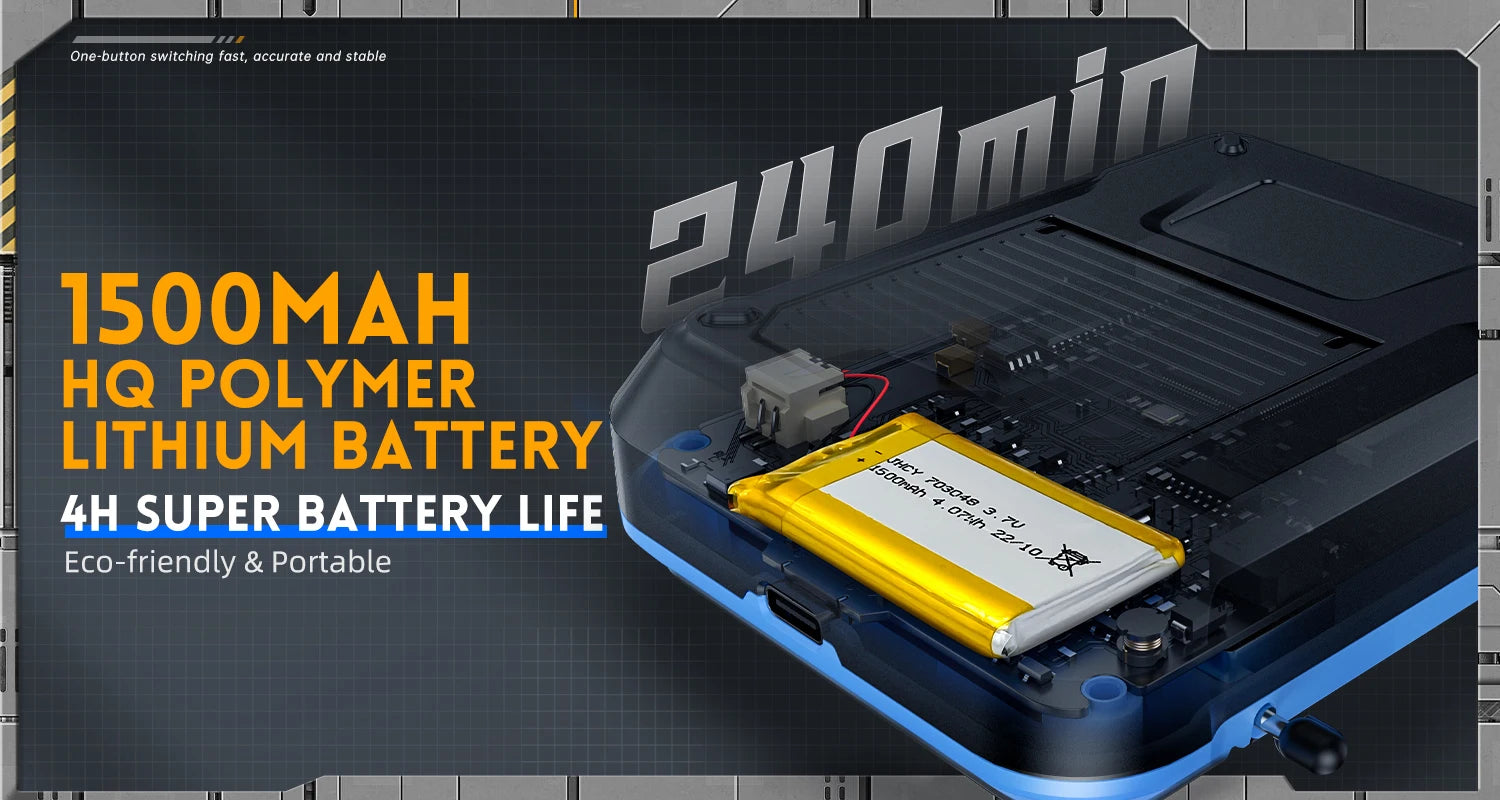

Supply voltage: Rechargeable lithium battery
Charging specifications: Type-C 5V

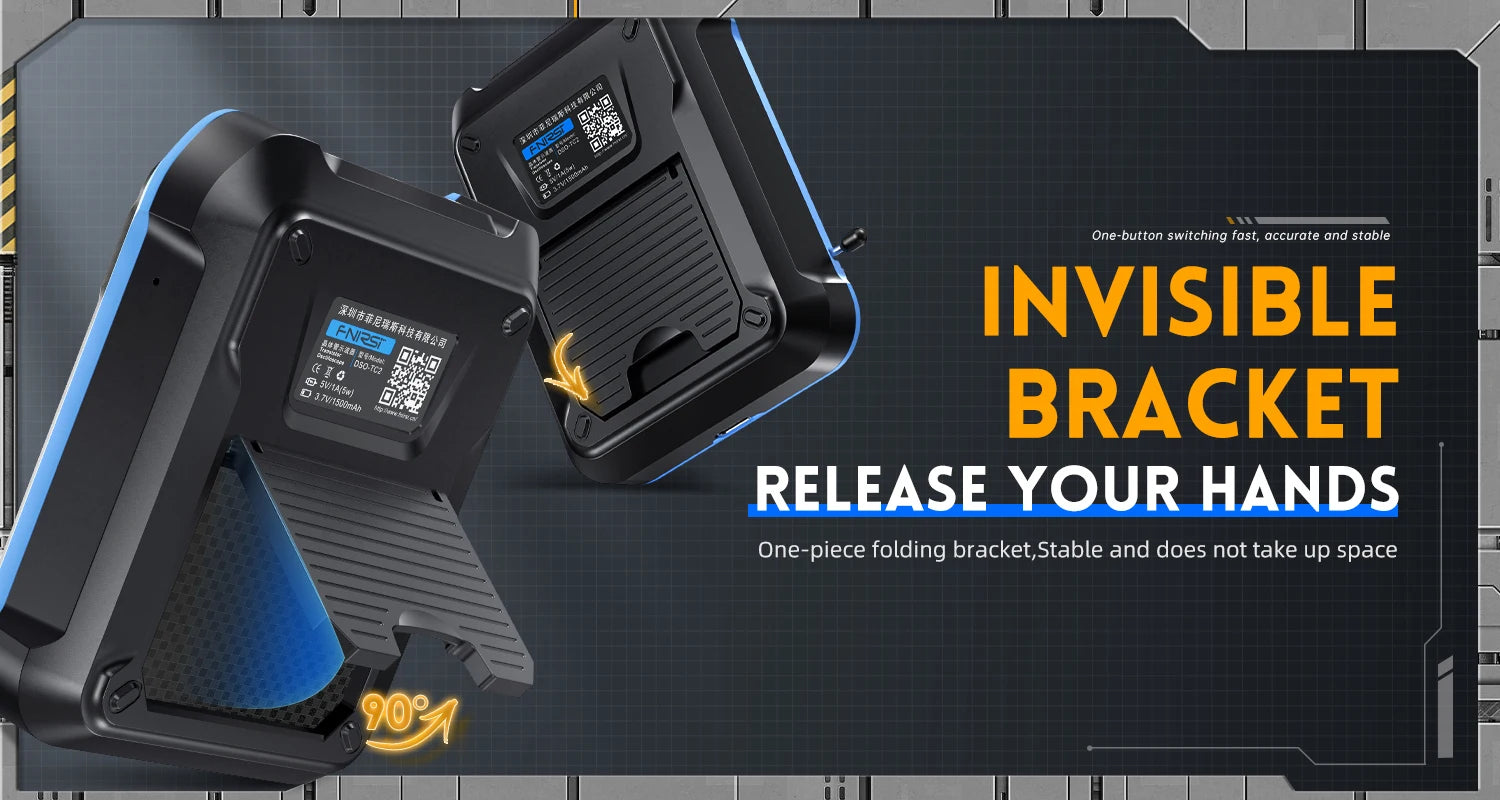

Bracket specifications: All-in-one foldable stand
Real-time sample rate: 10MSa/s
Analog Bandwidth: 500Khz
Input resistance: 1MΩ
Coupling method: AC/DC
Test voltage range: 400V
Vertical Sensitivity (x1): 10mV-10V
Horizontal time base range: 1us-10s
Trigger mode: Auto / Normal / Single
Trigger type: Rising edge / Falling edge
Waveform Freeze: Yes
Automatic measurement: Yes
Diodes: Forward voltage drop <4.5V
Reglulated diode: 0.01~4.5V
MOSFET: JFET IGBT MOSFET
SCR: Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor: 5pF~100mF
Resistor: 0.01Ω~50MΩ
Inductor: 10uH~1000mH
Battery: 0.1~4.5V
Input voltage: 0~40V
DS18B20: 0-85℃
DHT11: 0-60℃/5-95%
0-60℃/5-95%: NEC protocol infrared code
Triangle wave: 1-10KHz/0-3.3V/50%
Square wave: 1-100KHz/3.3V/50%
Pulse wave: 1-100KHz/3.3V/0-100%
Triangle wave: 1-10KHz/0-3.3V/50%
Ramp: 1-10KHz/0-3.3V/0-100%
DC: 0-3.3V

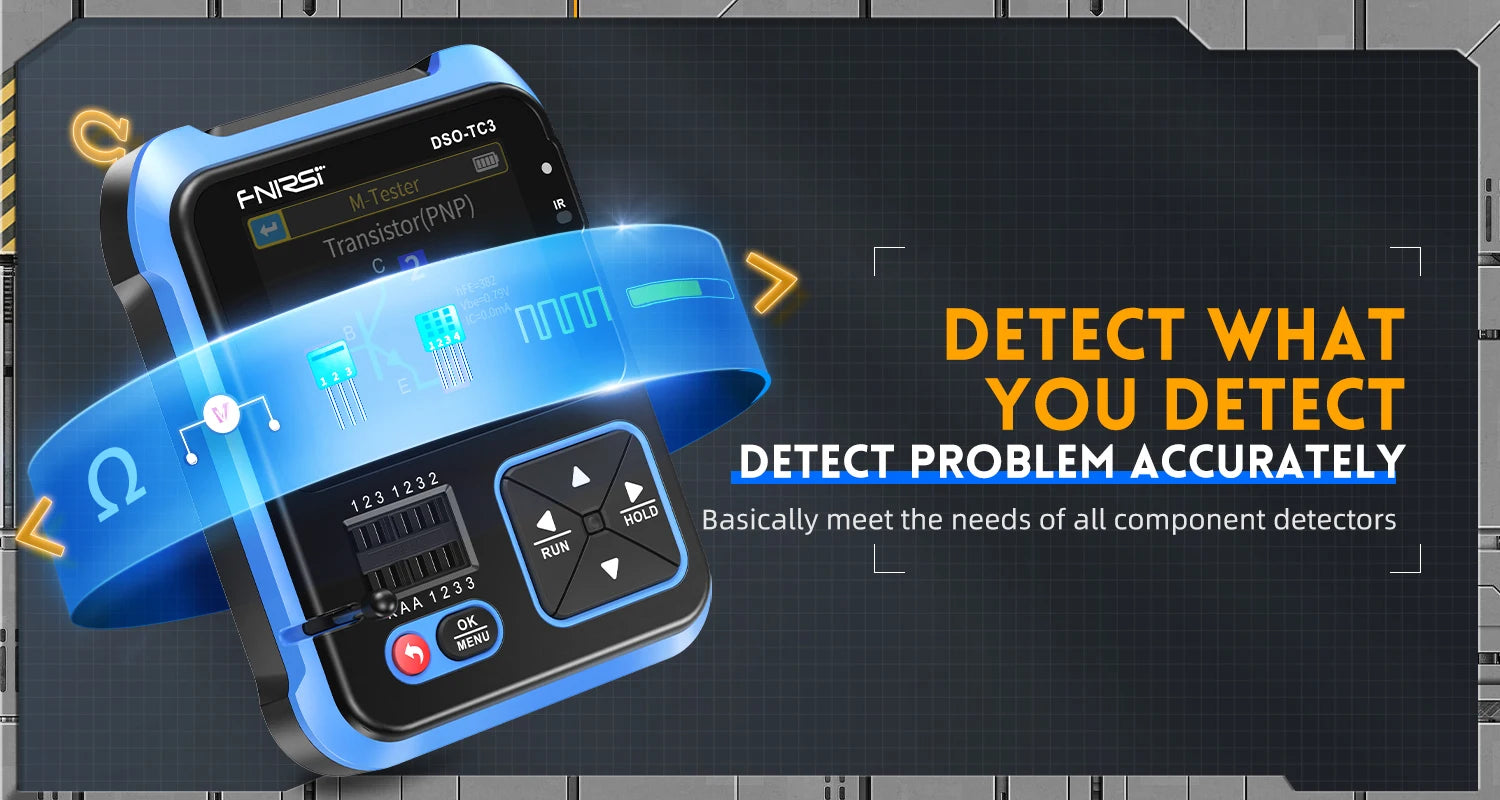

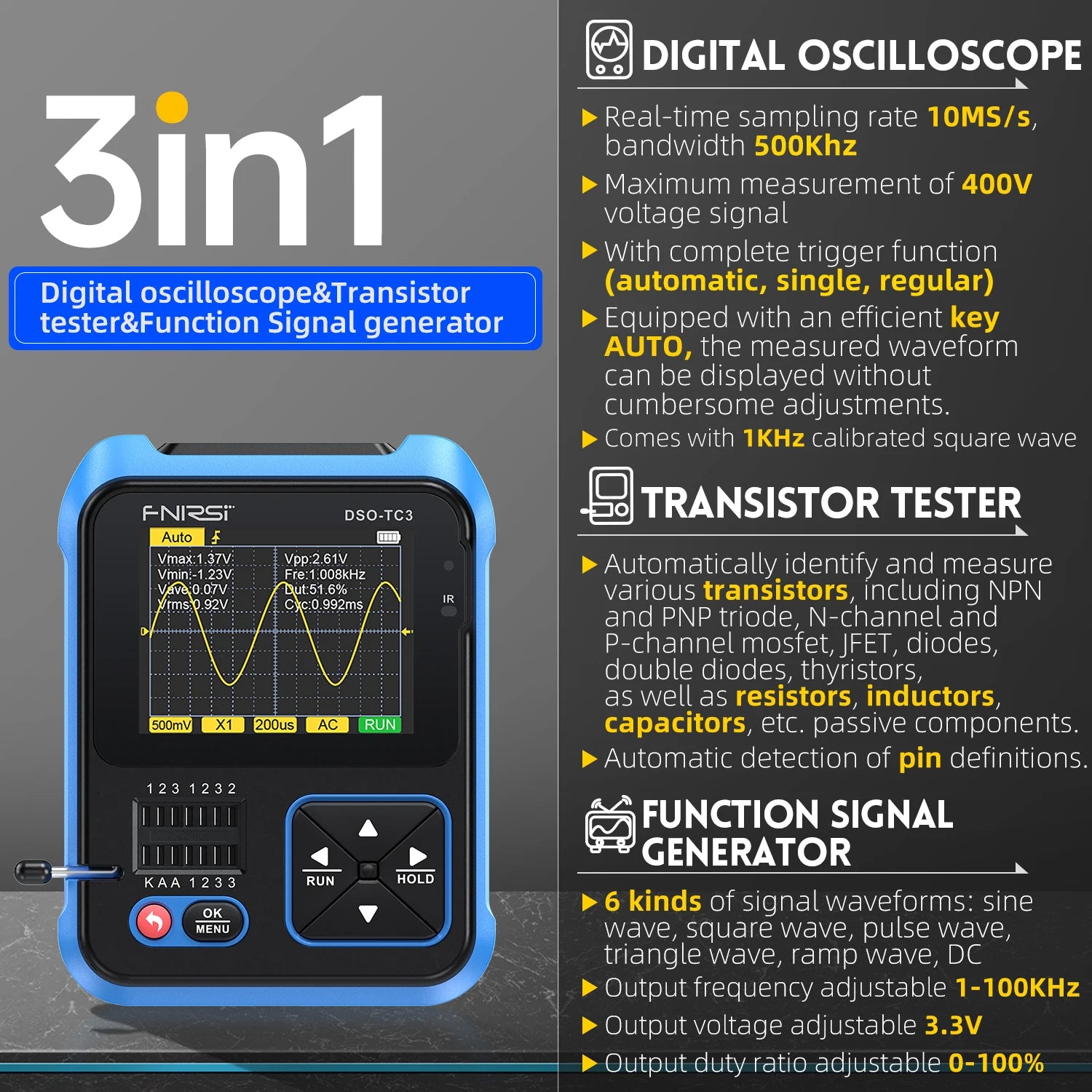

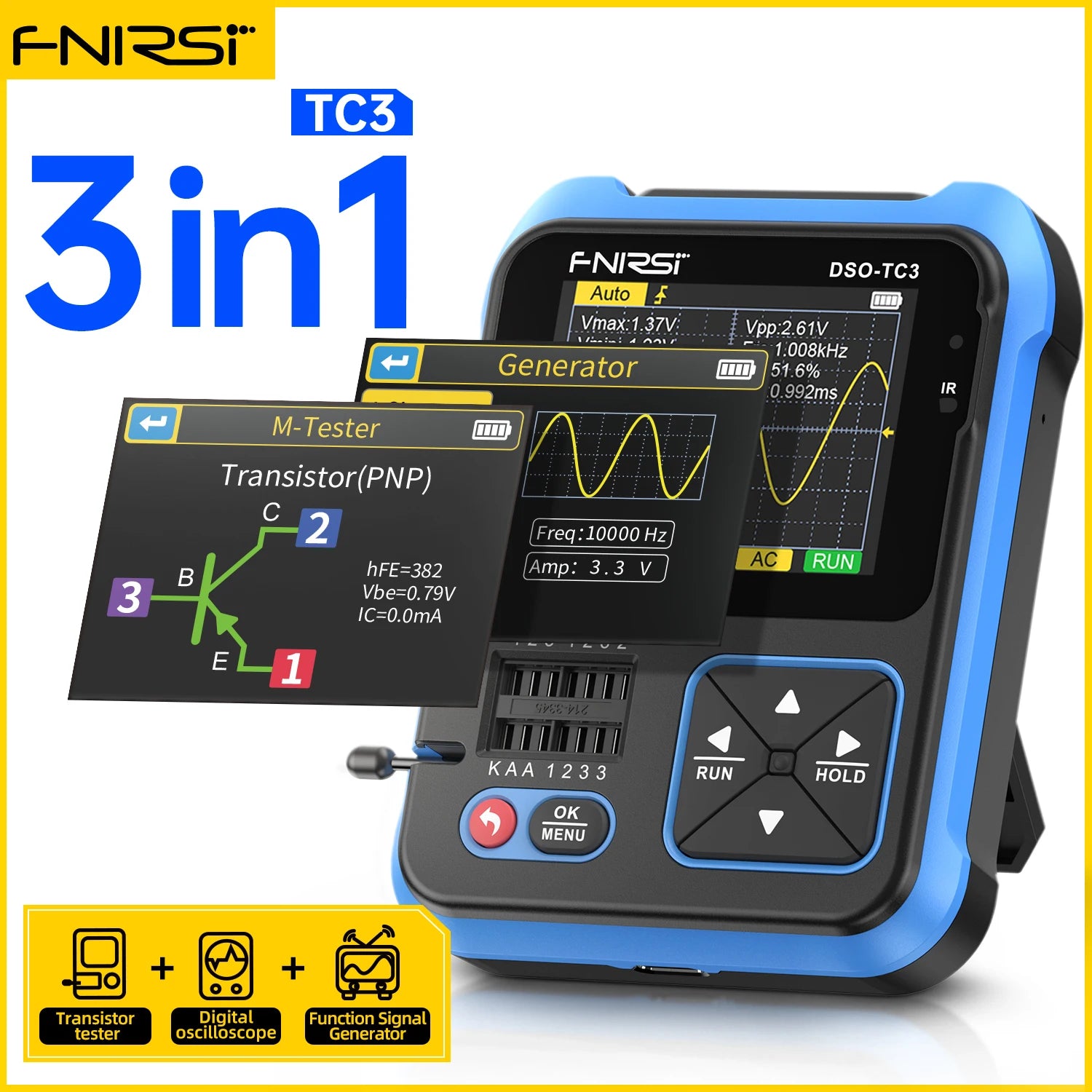

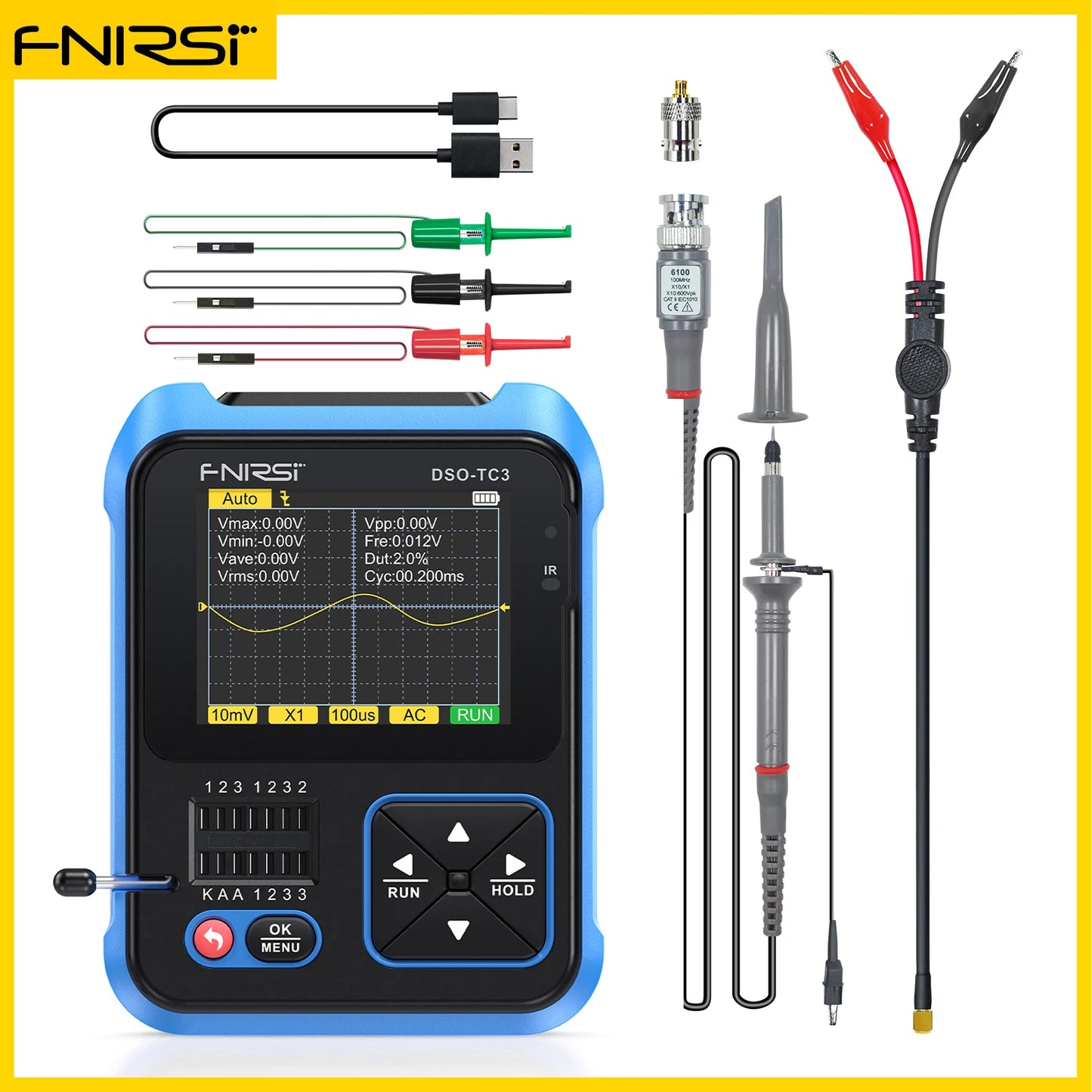

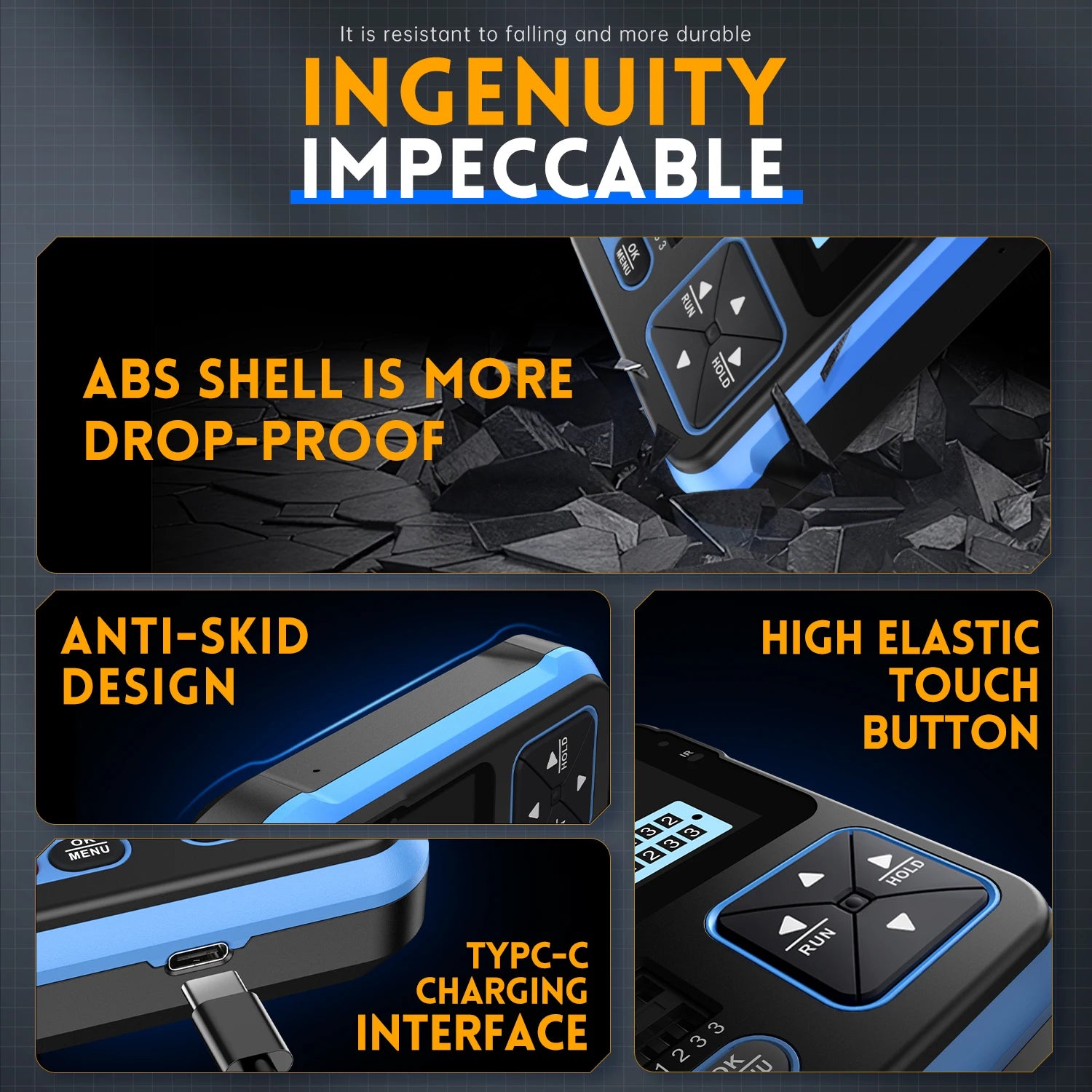

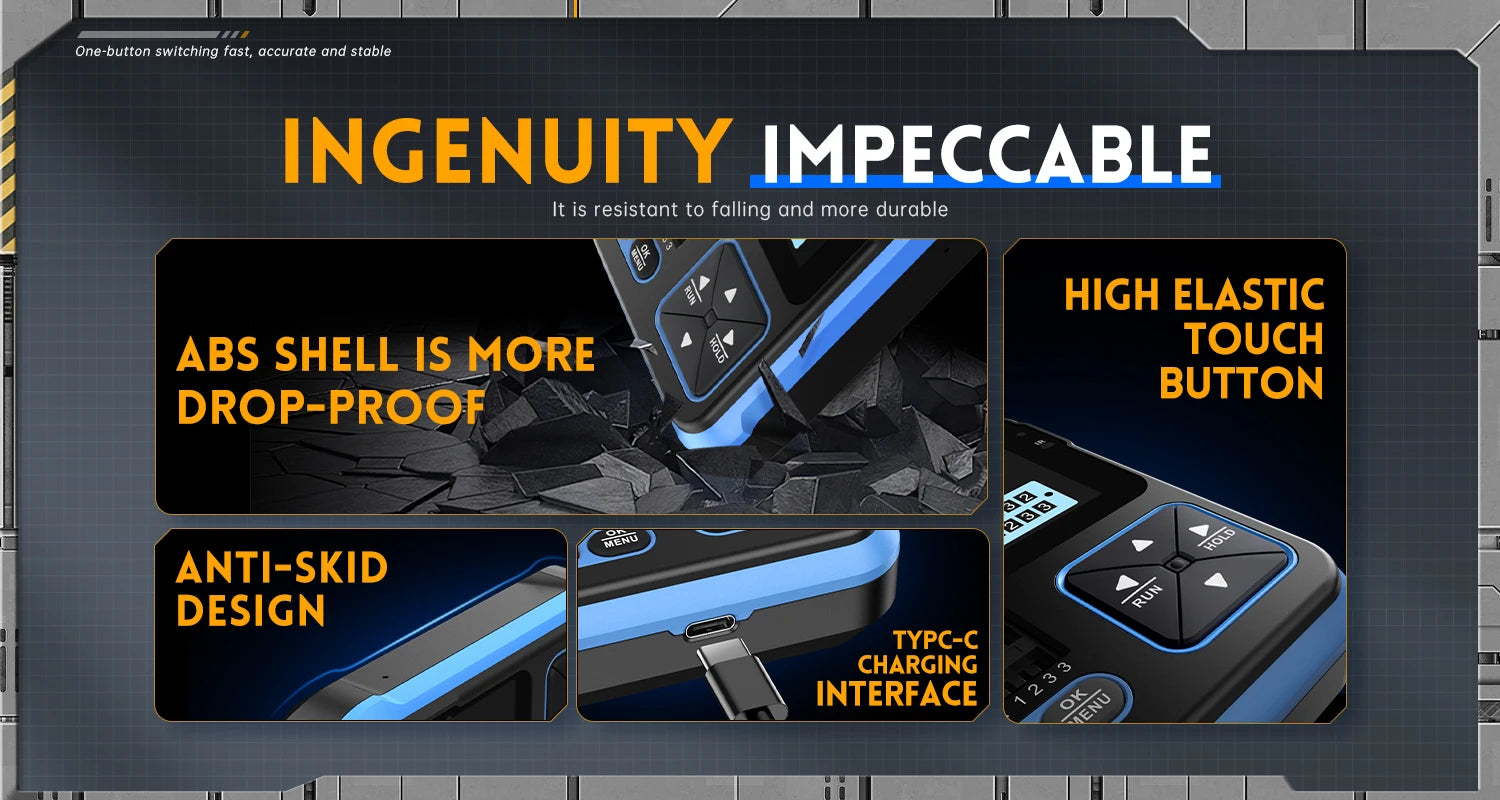

FNIRSI DSO-TC3 combines a digital Oscillograph, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.
FNIRSI DSO-TC3 is an upgraded version of DSO-TC2. On the basis of DSO-TC2, it has upgraded capacitance ESR detection, function signal generator output, Oscillograph bandwidth and sampling rate improvement, input voltage and diode detection range increase and so on. The improvement in performance and function of DSO-TC3 makes the device more stable and accurate in the detection process.

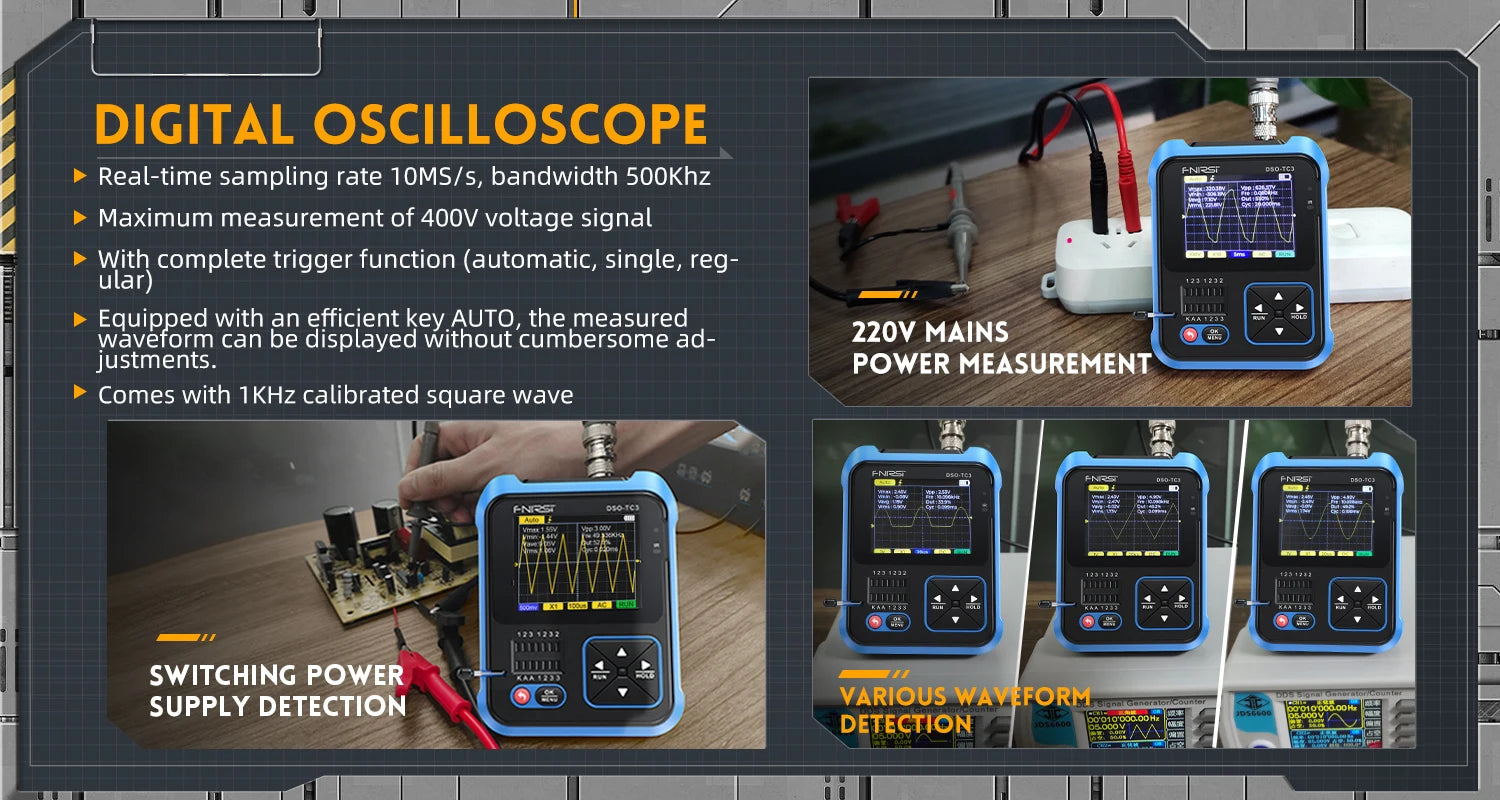

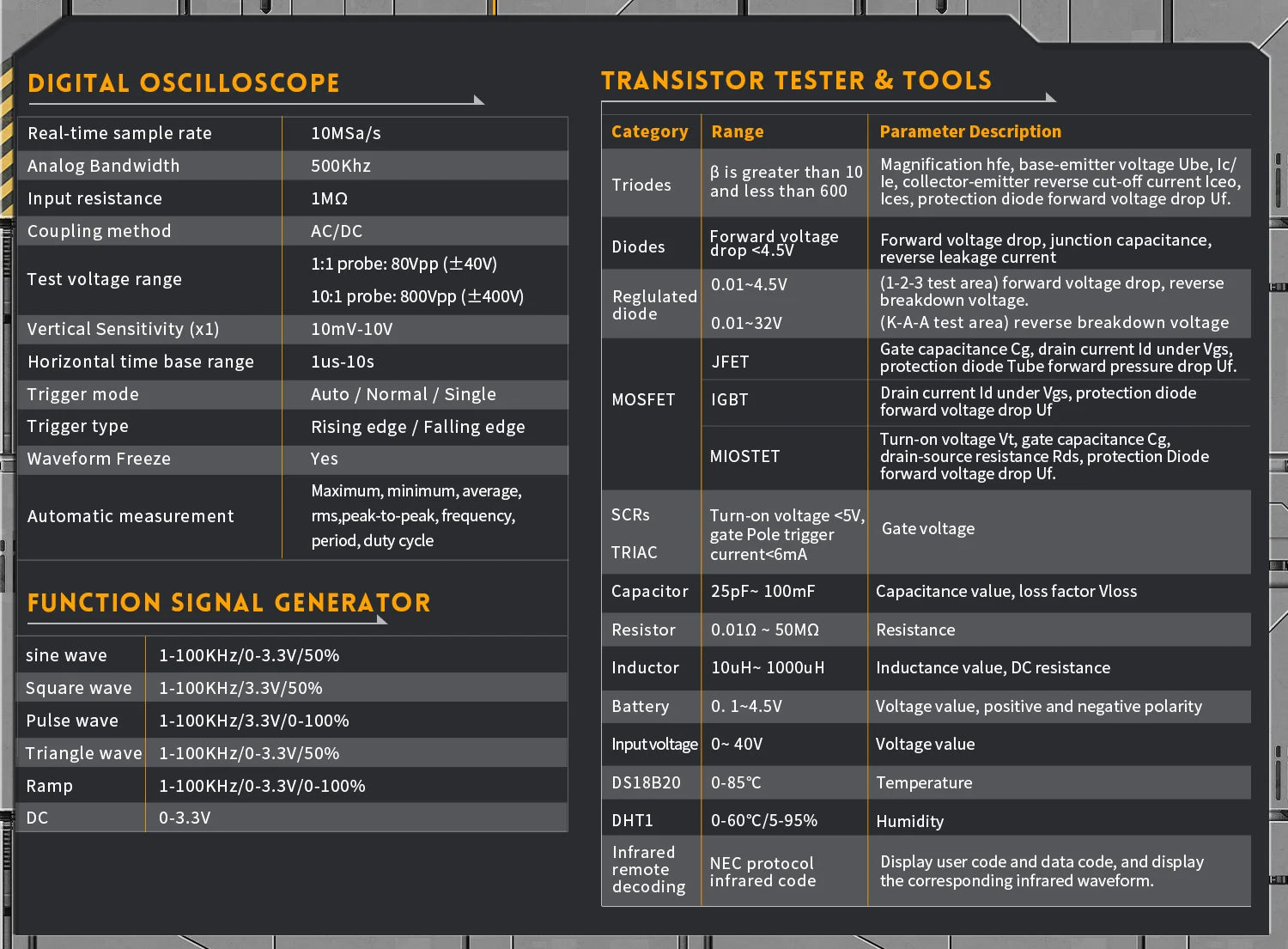

Oscillograph
Real-time sample rate：10MSa/s
Analog Bandwidth：500Khz
Input resistance：1MΩ
Coupling method：AC/DC
Test voltage range：400V
Vertical Sensitivity (x1)：10mV-10V
Horizontal time base range：1us-10s
Trigger mode：Auto / Normal / Single
Trigger type：Rising edge / Falling edge
Waveform Freeze：Yes
Automatic measurement：Yes

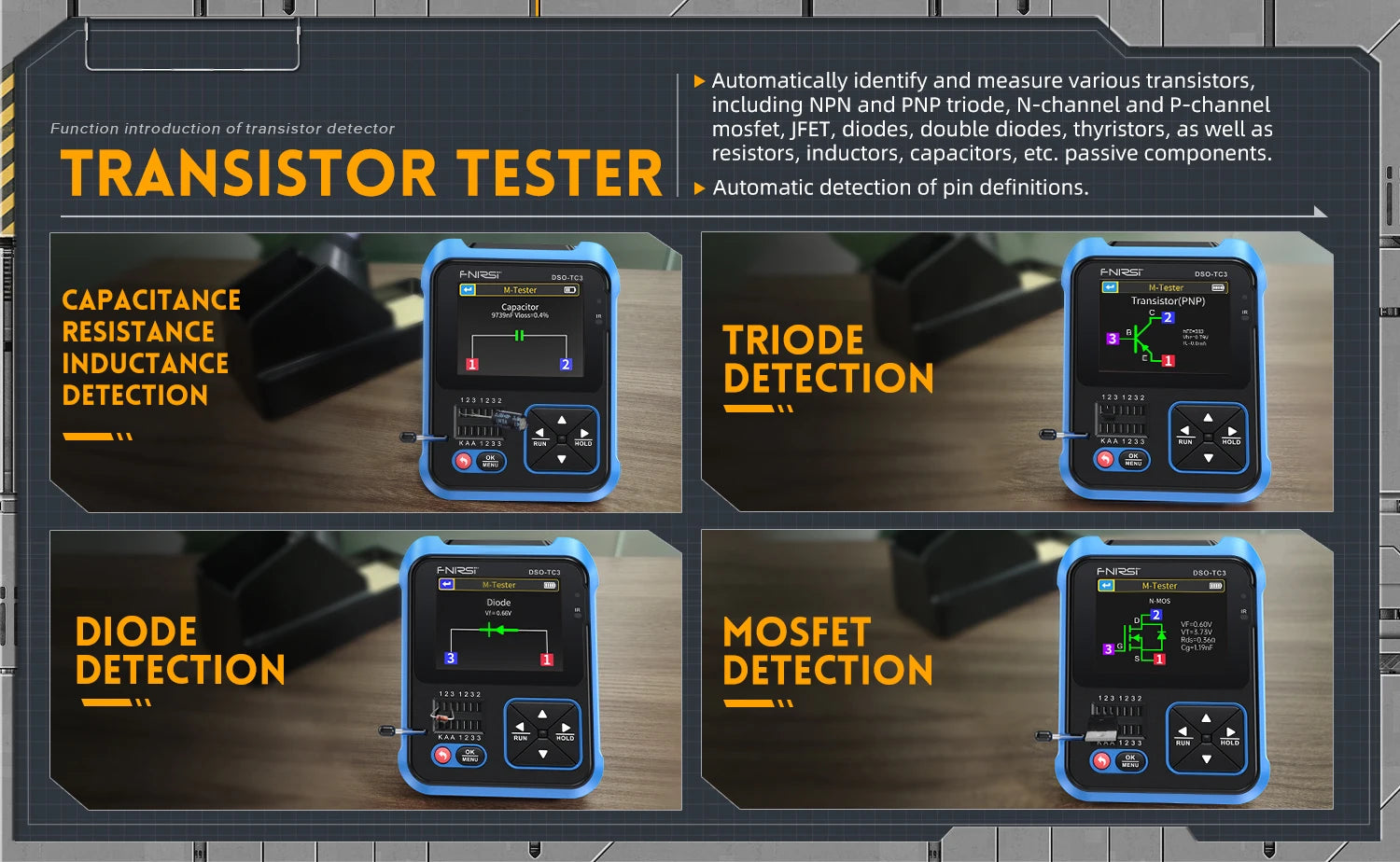

Transistor tester
Triodes：β is greater than 10 and less than 600
Diodes：Forward voltage drop <4.5V
Reglulated diode：0.01~32V
MOSFET：JFET，IGBT，MOSFET
SCRs：Turn-on voltage <5V, gate Pole trigger current <6mA
TRIAC：Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor：25pF~100mF
Resistor：0.01Ω~50MΩ
Inductor：10uH~1000mH
Battery：0.1~4.5V

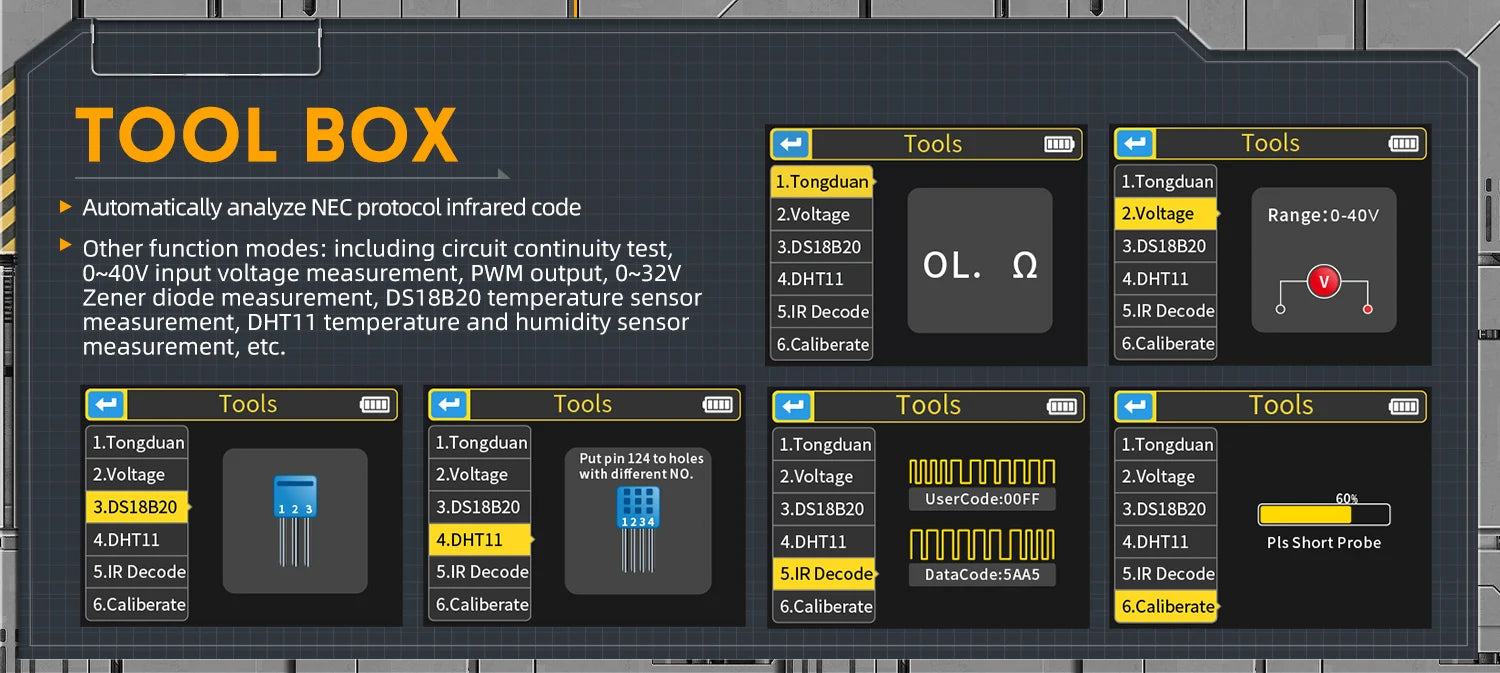

Input voltage：0~40V
DS18B20：0-85℃
DHT11：0-60℃/5-95%
Infrared remote decoding：NEC protocol infrared cod
NOTE：
①Ices, Iceo, Uf are only displayed when they are valid.
② Junction capacitance and reverse leakage current are only displayed when they are valid.
③The turn-on or turn-off voltage of the FET must be less than 5V.
④ Displayed only when there is a protection of diode.
⑤Vloss is only displayed when it is valid.
⑥Two-legged components and measure the inductance when the resistance is less than 2.1kΩ.

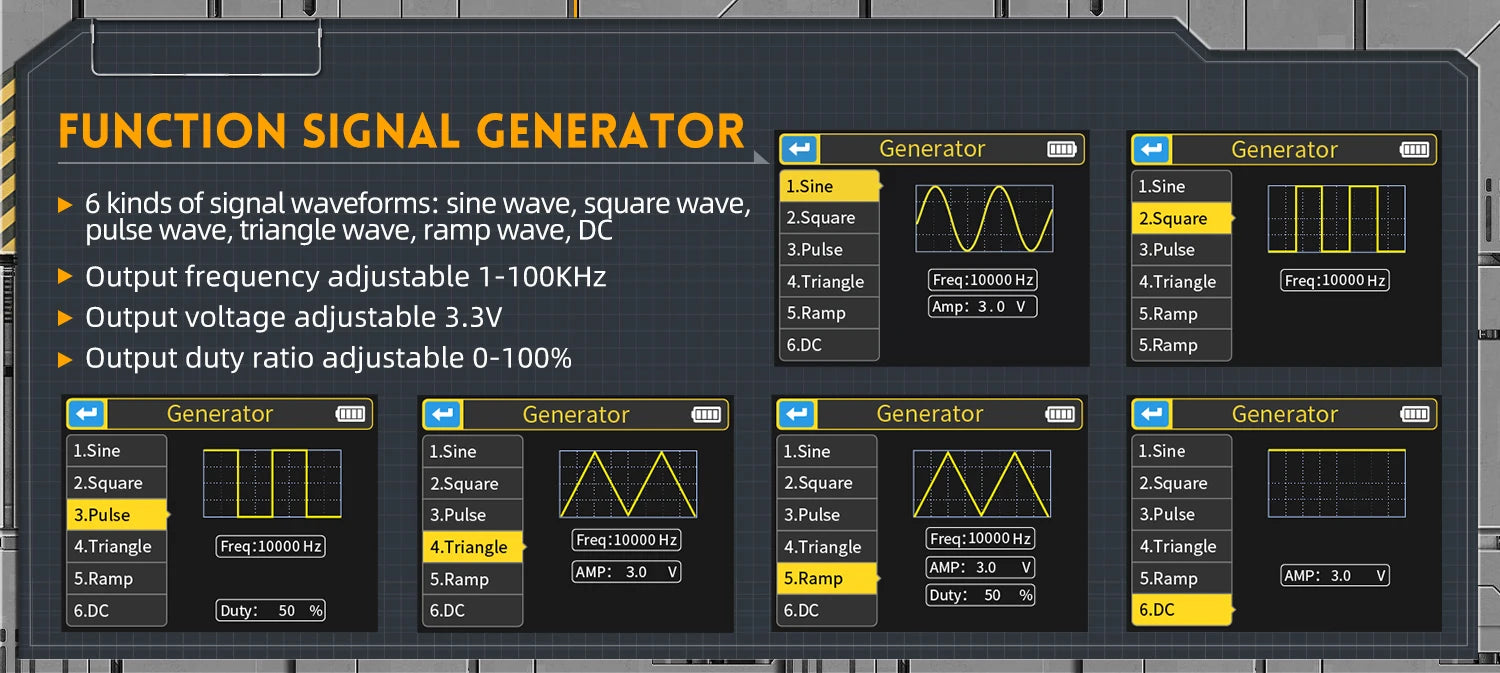

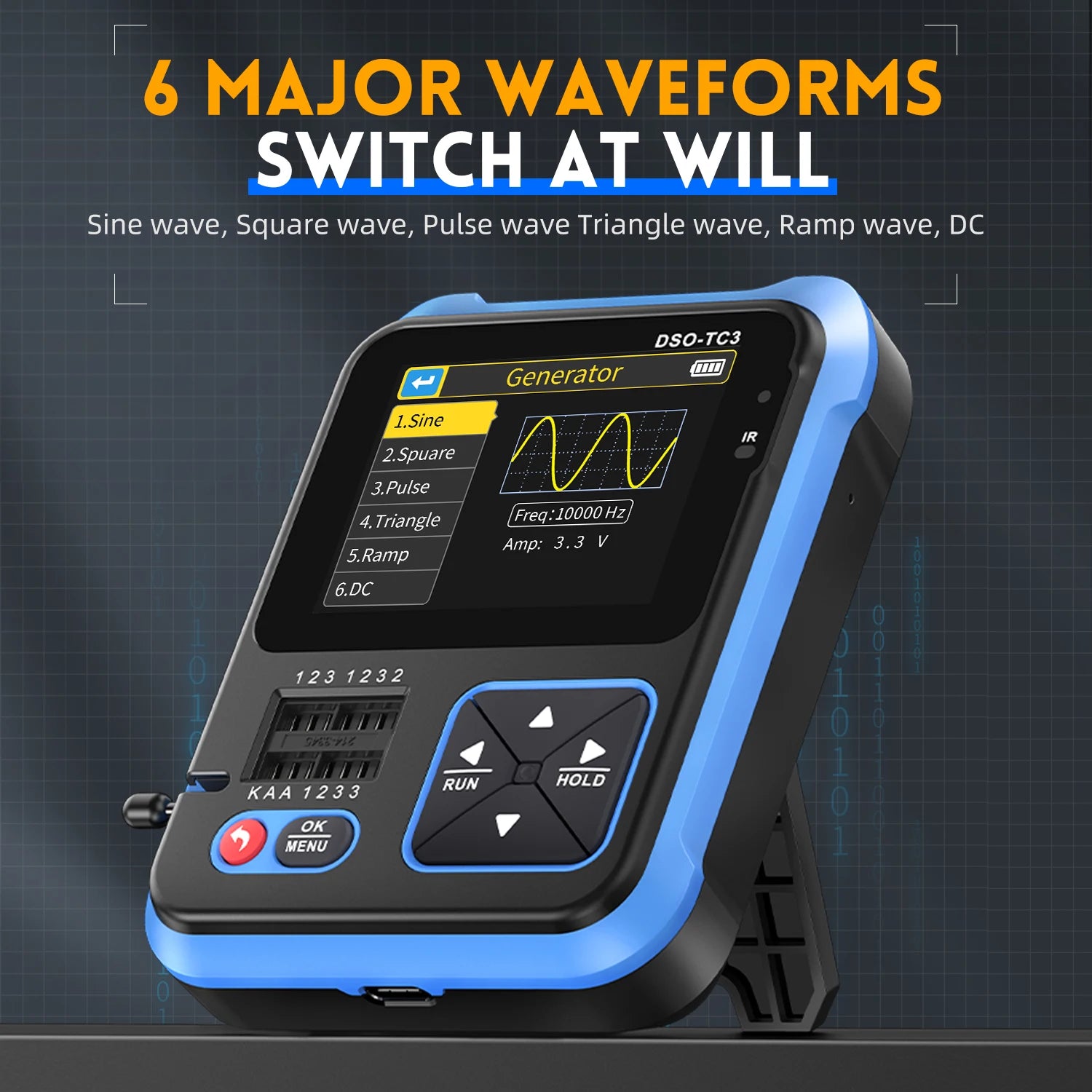

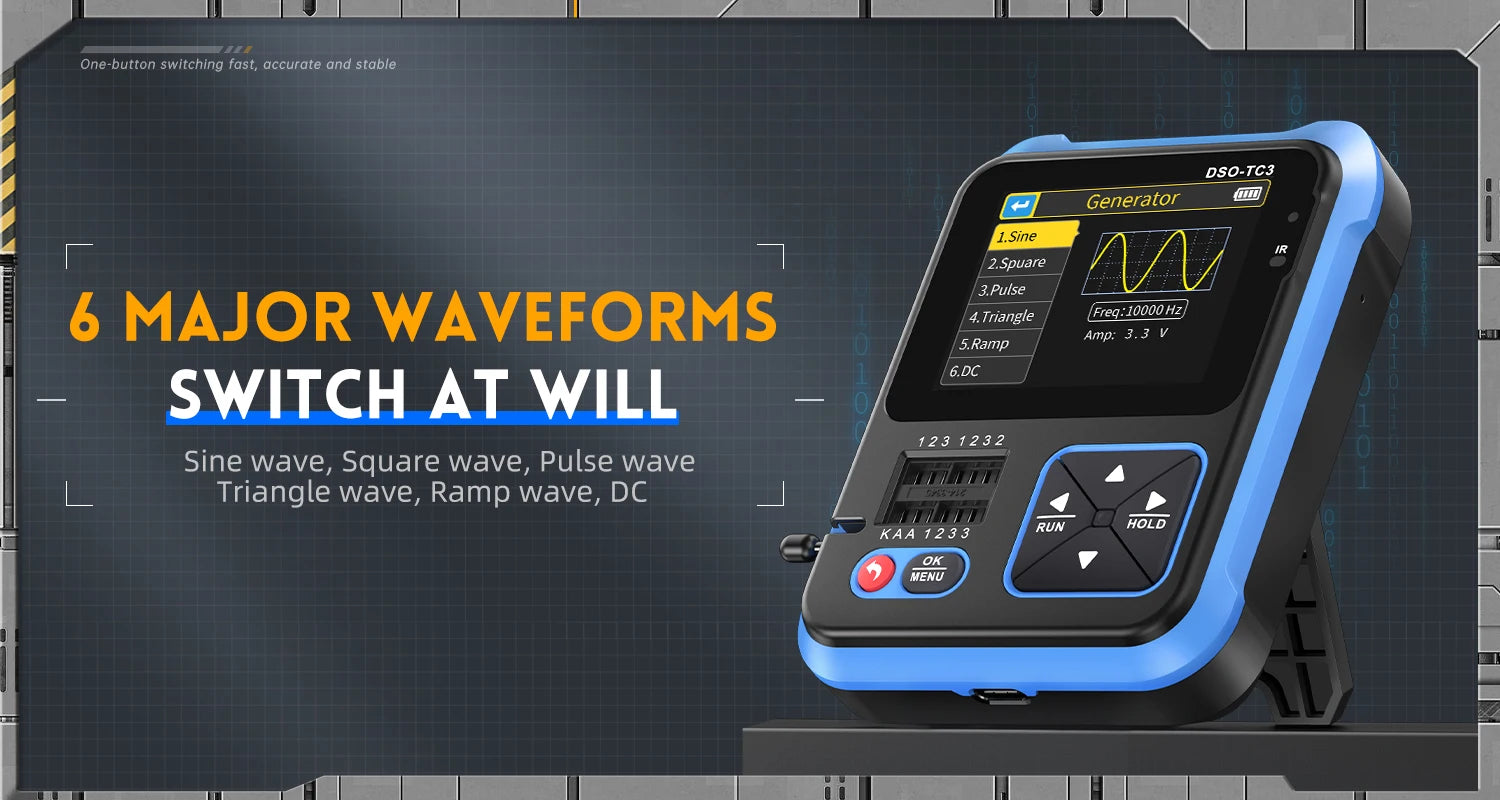

Function Signal Generator
sine wavel：1-100KHz/0-3.3V/50%
Square wave：1-100KHz/3.3V/50%
Pulse wave：1-100KHz/3.3V/0-100%
Triangle wave：1-100KHz/0-3.3V/50%
Ramp：1-100KHz/0-3.3V/0-100%
DC：0-3.3V

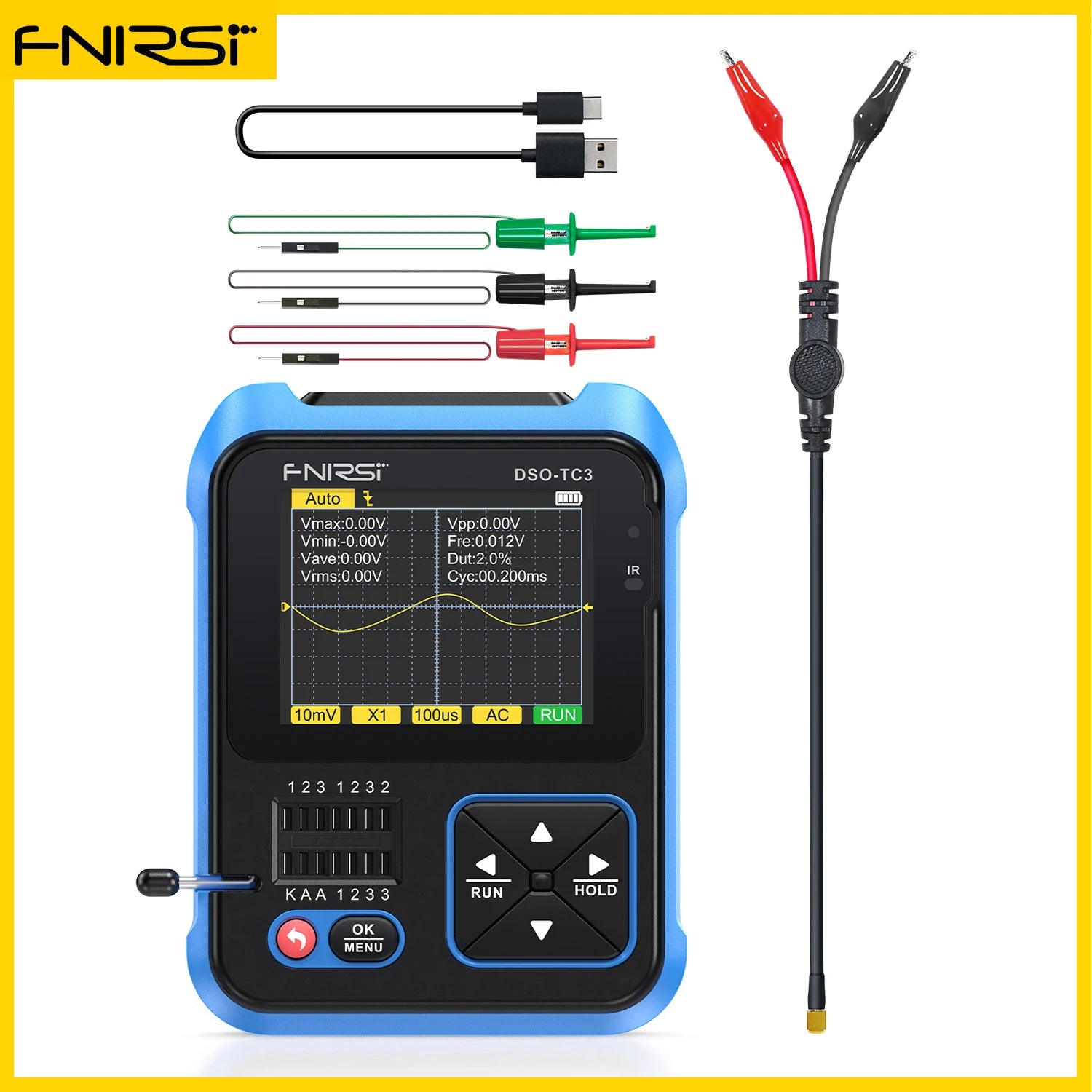

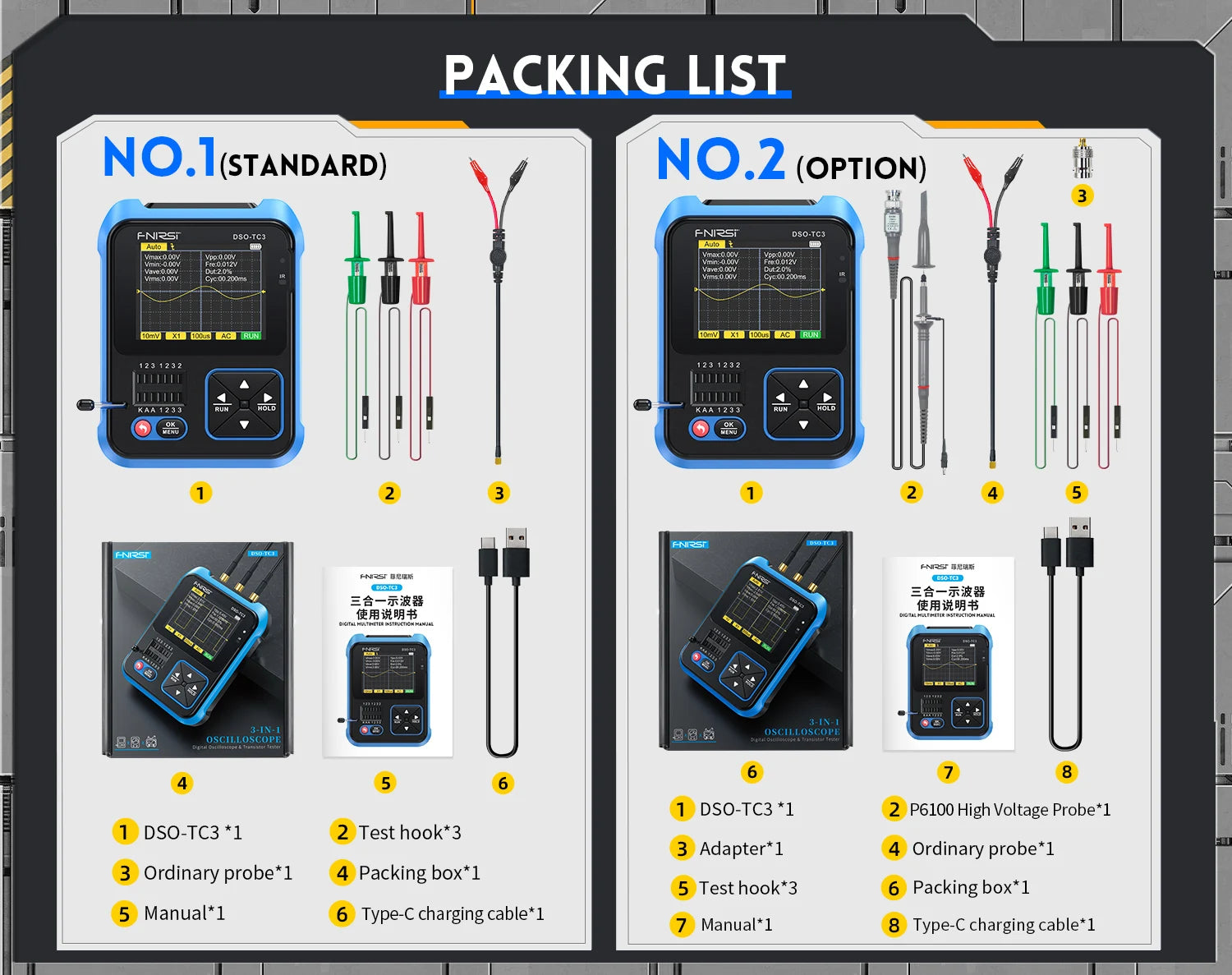

NO.1(Standard)
DSO-TC3 *1
Ordinary probe*1
Test hook*3
Type-C charging cable*1
Packing box*1
Manual*1
NO.2(Option)
DSO-TC3 *1
P6100 High Voltage Probe*1
Ordinary probe*1
Test hook*3
Adapter*1
Type-C charging cable*1
Packing box*1
Manual*1
