SPECIFICATIONS

Brand Name: Hti

Is Smart Device: No

Origin: Mainland China

Choice: yes

Note:

This device has 2 temperature measurement ranges, low temperature range (-20°C~120°C) and high temperature range (120°C~550°C). When measuring temperature, please choose the correct measurement range according to the actual situation to avoid Temperature measurement error

Features:

1. 256*192 infrared resolution, with 25Hz high frame rate images

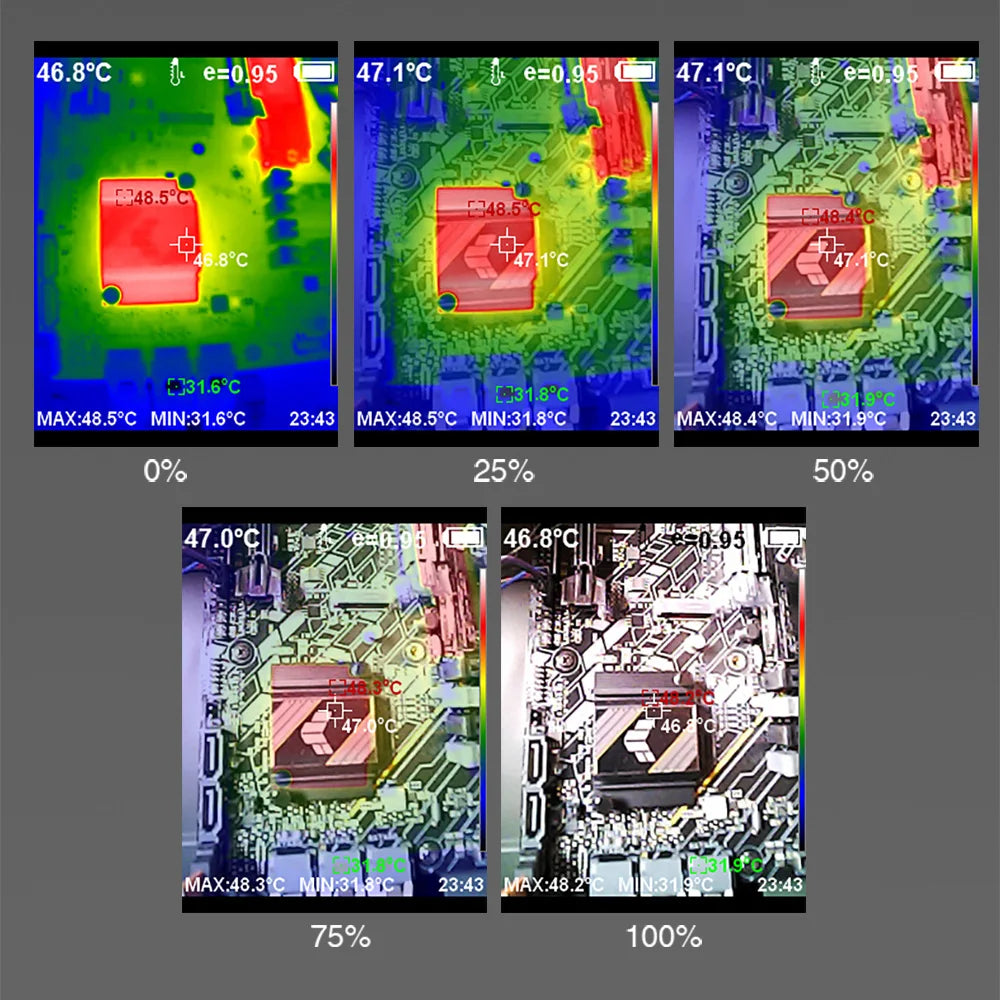

2. infrared mode and visible light mode, the fusion rate can be manually adjusted(0%,25%,50%75%,100%)

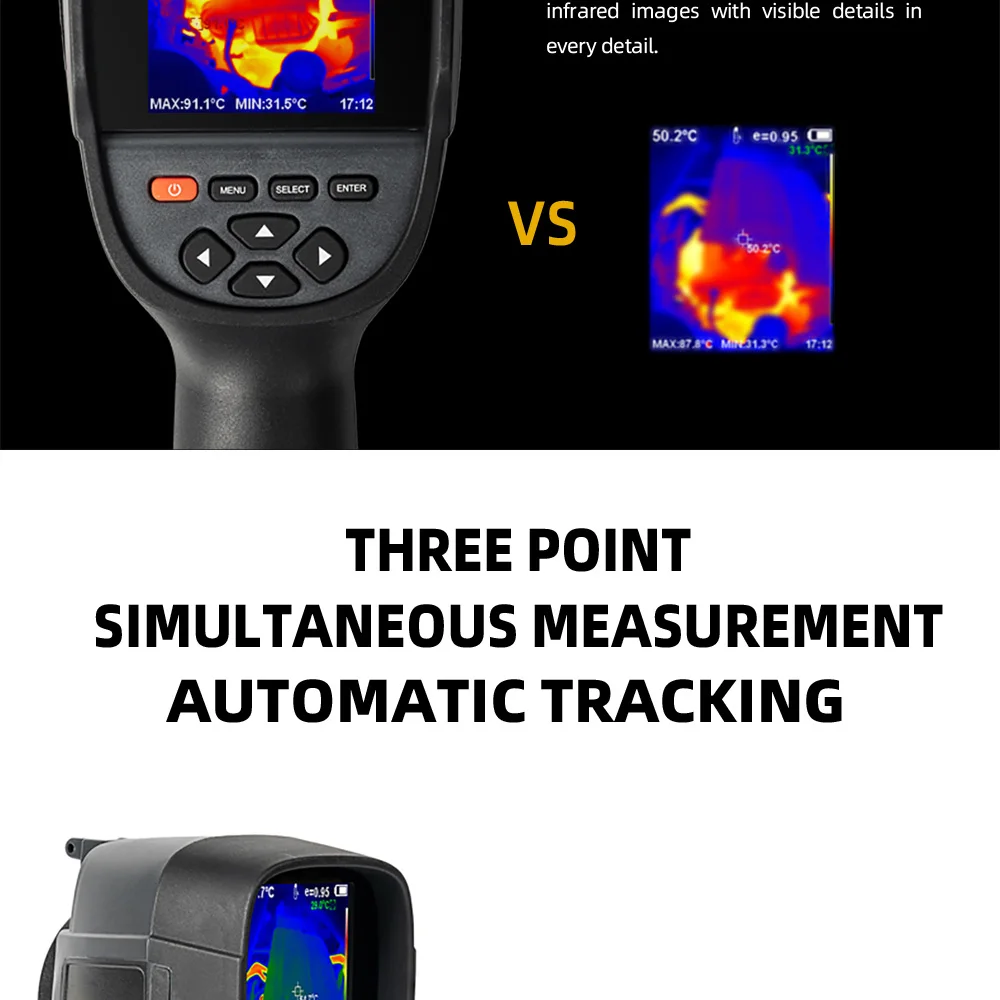

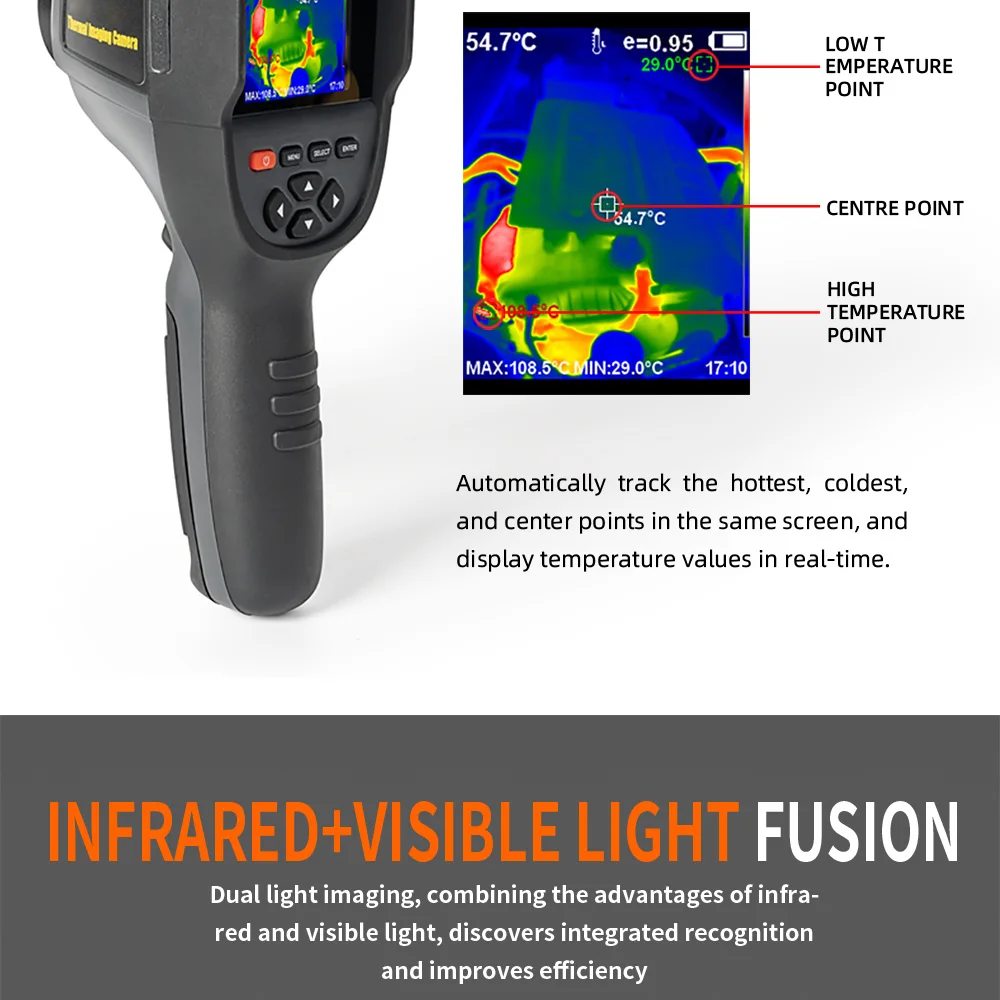

3. hot, cold and center temperature Real-time measurement

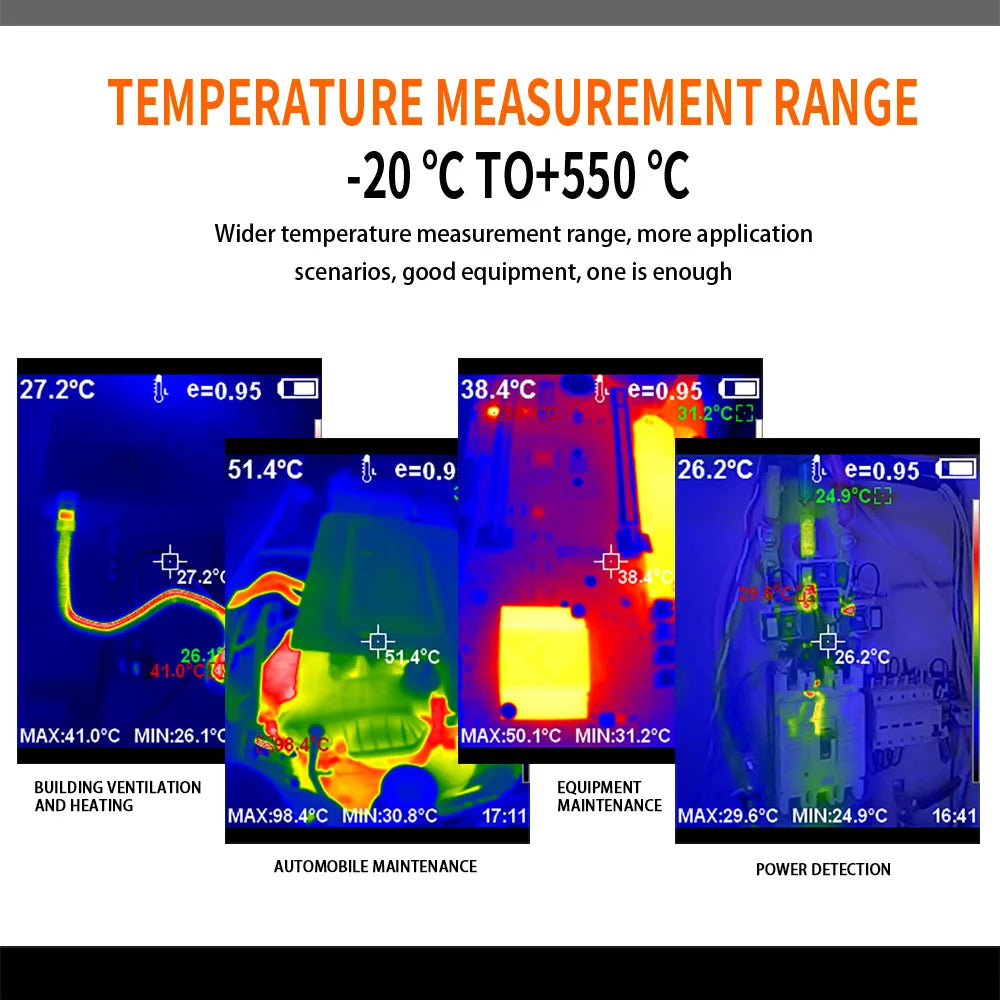

4. -20℃ to +550℃/-40℉ to +1022℉ measurement ranges, support ℃ and ℉ switch.

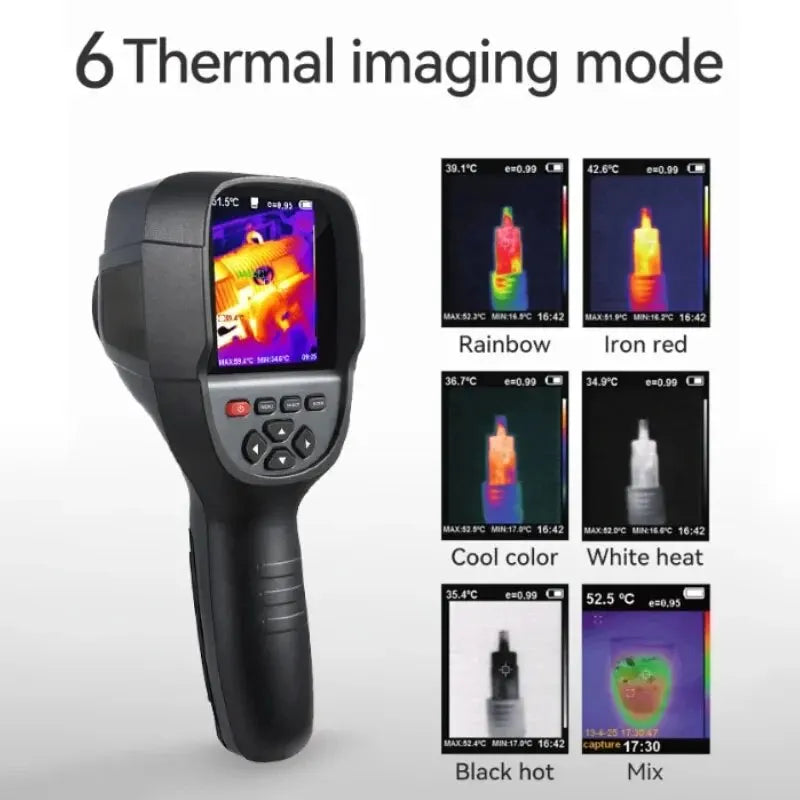

5. Rainbow, iron oxide red, cold color, black & white, white & black five 5 imaging modes

6.support Chinese/English/German/Italian , time and date setting

7.Built-in 6.6G storage space, supports taking photos and video recording

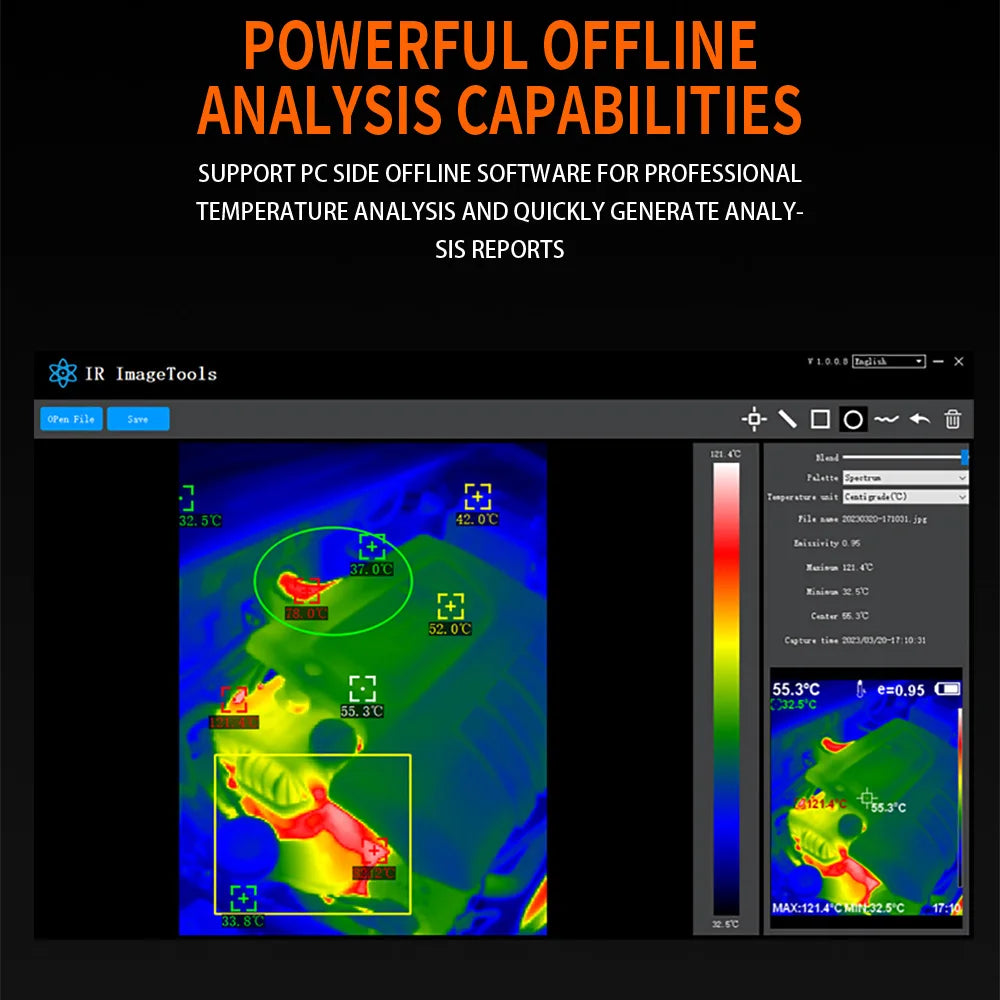

8.Data can be easily transferred to the computer through Type-C cable, compatible with WinXP, Win7, Win8, and Win10 systems, and supports offline data analysis.

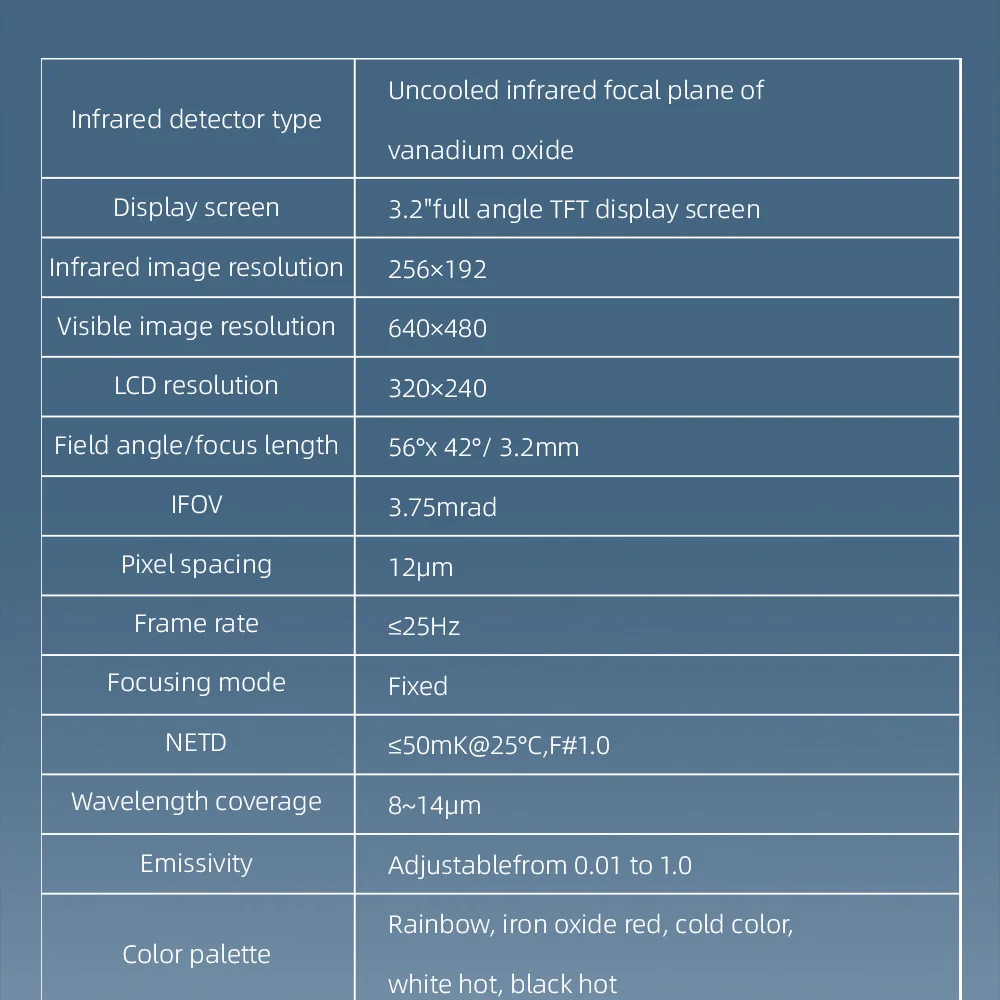

Specification:

Infrared detector type: Uncooled infrared focal plane of vanadium oxide

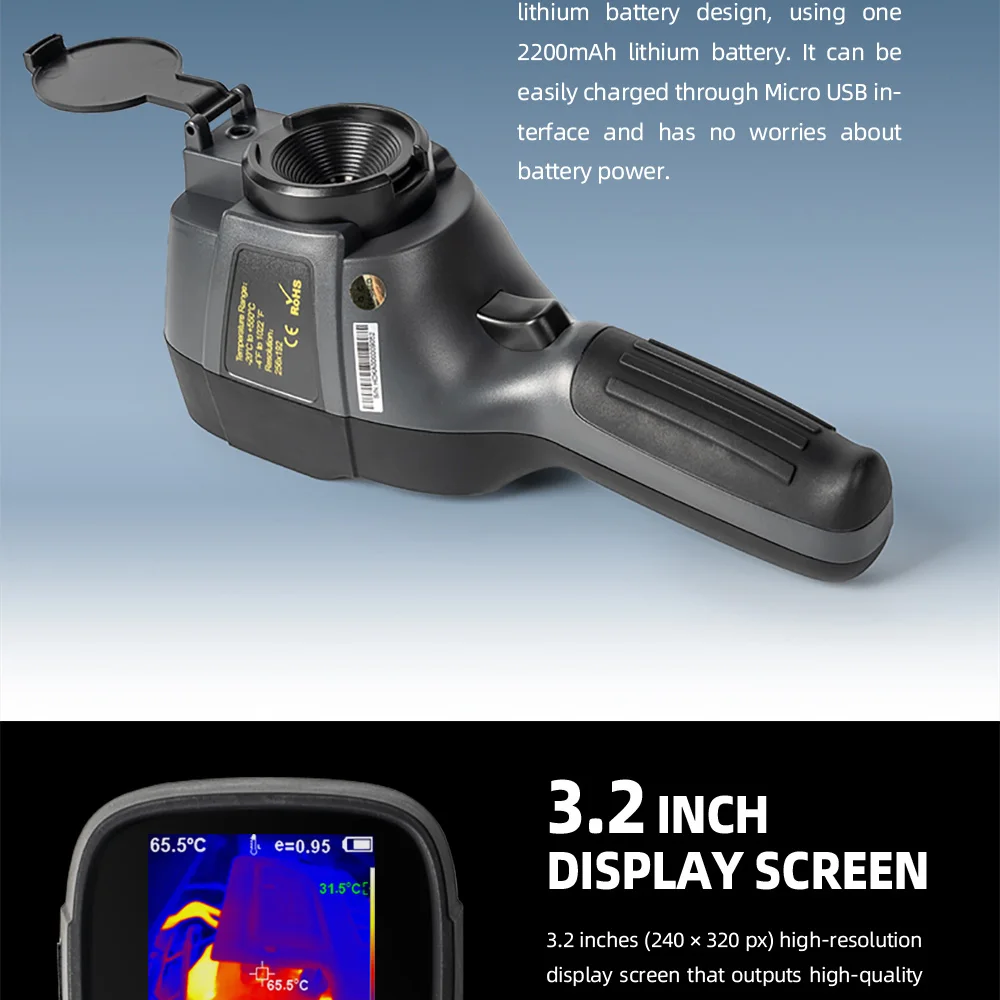

Display screen:3.2Inches

Infrared image resolution：256x192

LCD resolution：320x240

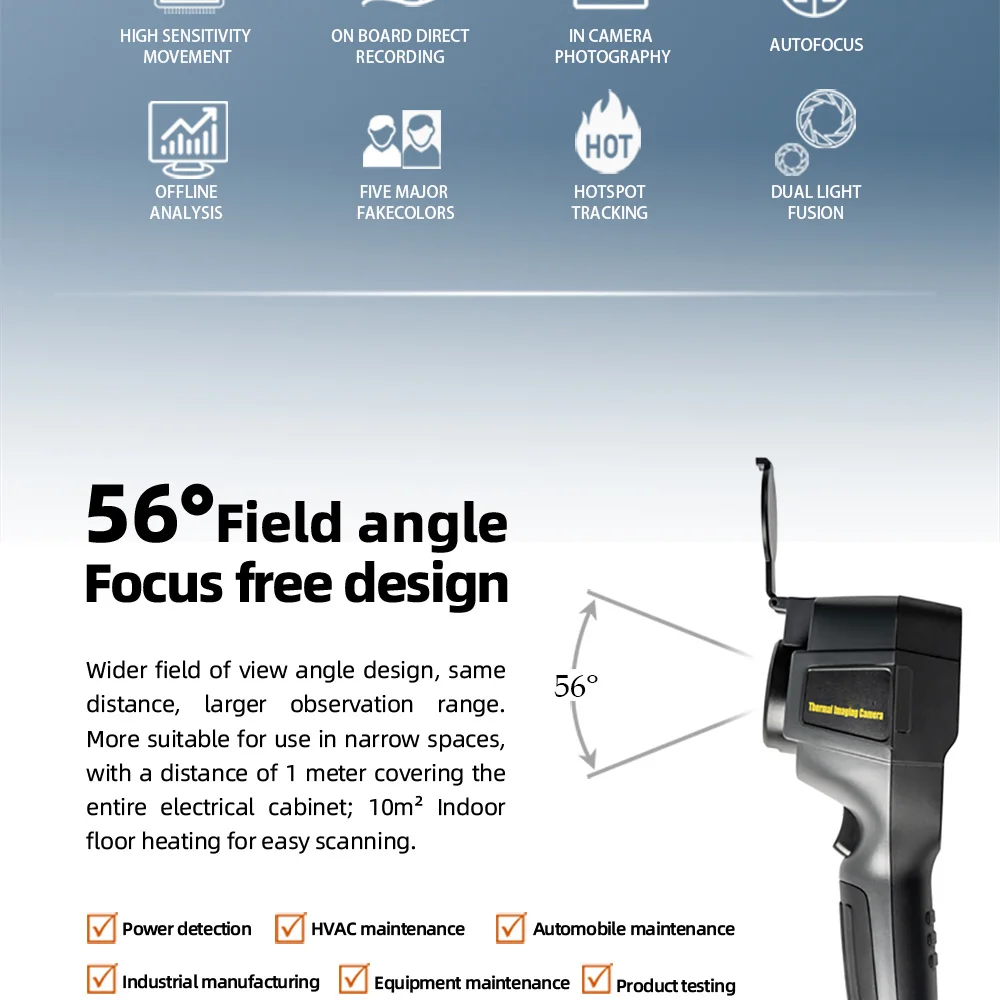

Field angle/focus length：56°x42°/ 4.0mm

IFOV：3.75mrad

Pixel spacing：12um

Frame rate：≤25Hz

Focusing mode：Fixed

NETD:<50mK@25℃,F#1.0

Wavelength coverage:8~14um

Image display mode: Infrared/visible light/dual light fusion

Emissivity: Adjustable from 0.01 to 1.0

Color palette: Rainbow, iron oxide red, cold color, white hot, black hot

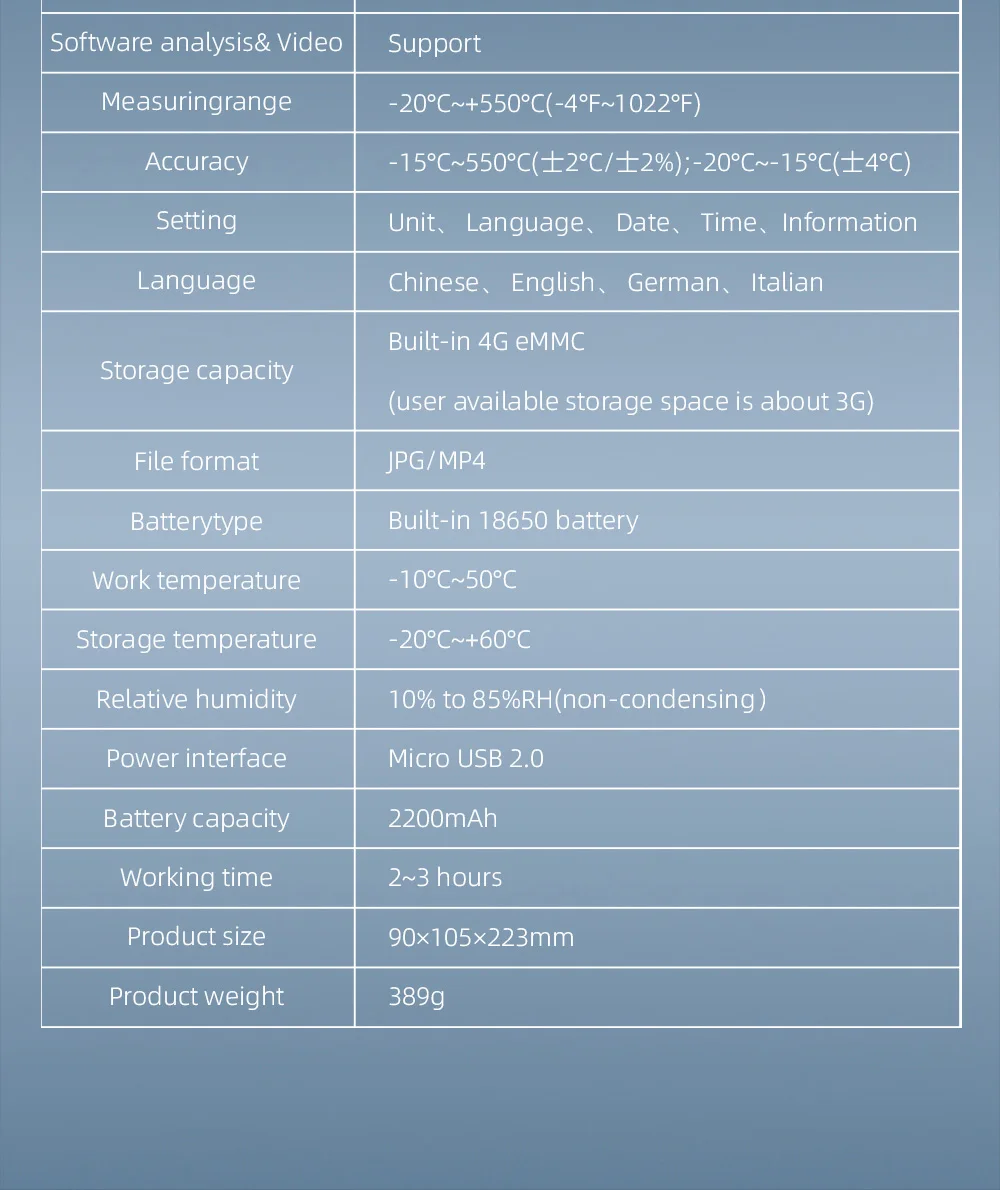

Software analysis& Video: Support

Measuring range：20℃~+550℃(-4℉~1022℉)

Accuracy:-15 ℃ ~ 550 ℃ (± 2 ℃/± 2%);-20 ℃ ~-15 ℃ (± 4 ℃)

Setting：Unit、 Language、Date、 Time、Information

Language：Chinese、English、German、 Italian

Storage capacity：Built-in 8G(user available storage space is about 6.6G)

File format：JPG/MP4

Battery type：Built-in 18650 battery

Work temperature：-10℃~50℃

Storage temperature：-20℃~+60℃

Relative humidity：10% to 85%RH

Power interface：Type-C

Battery capacity:2200mAh

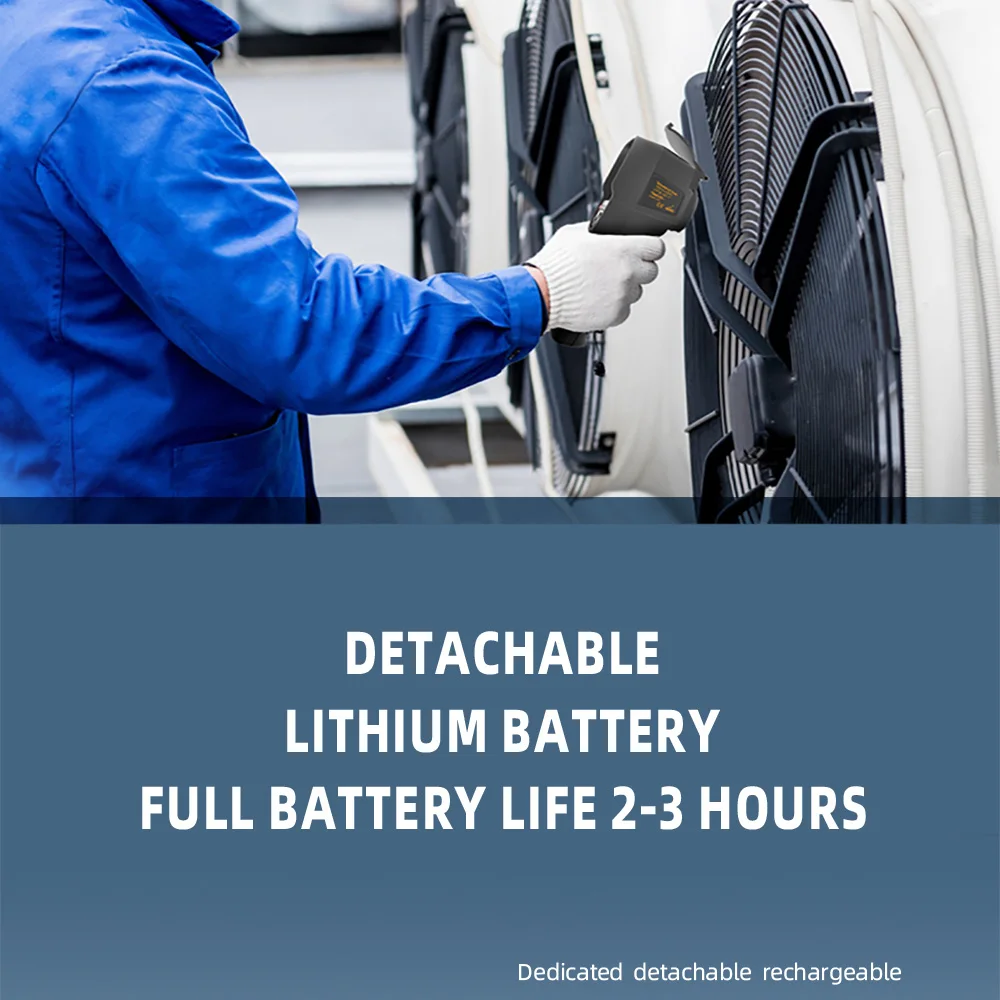

Working time:2~3hours

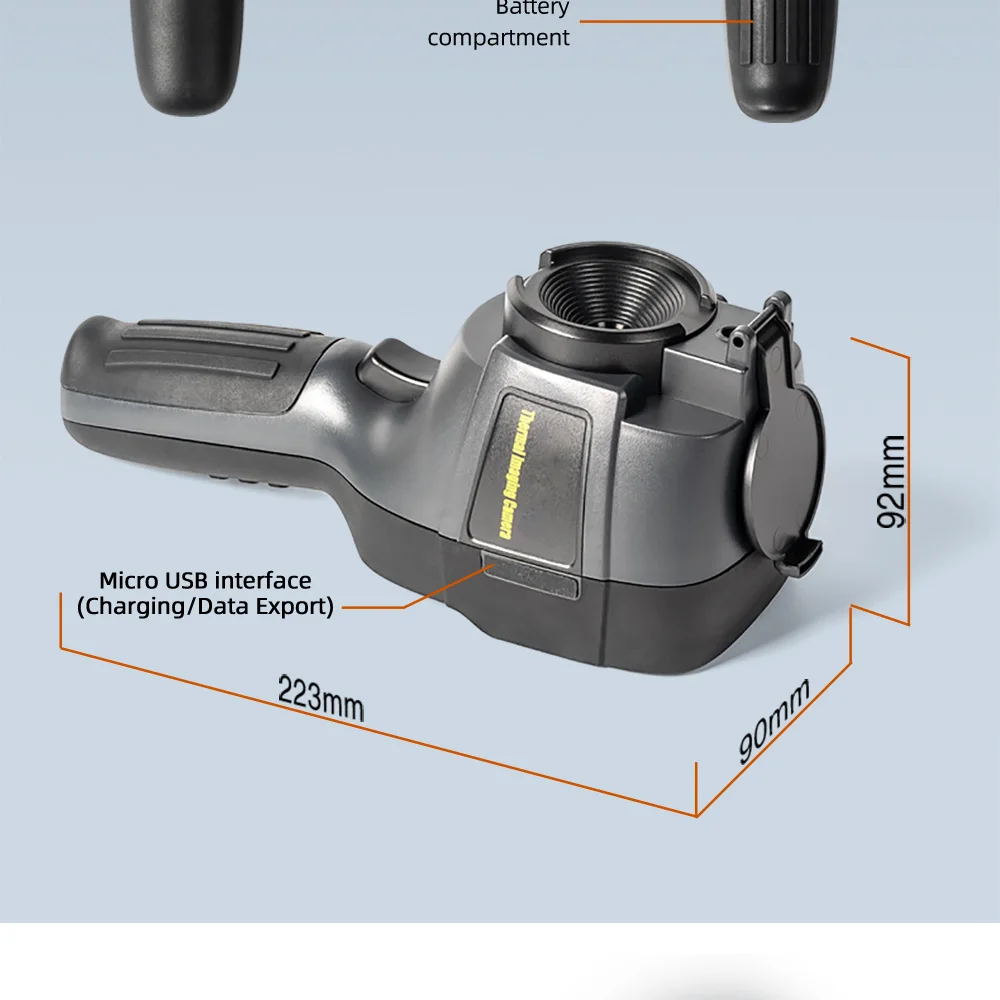

Product size:90x105x223mm

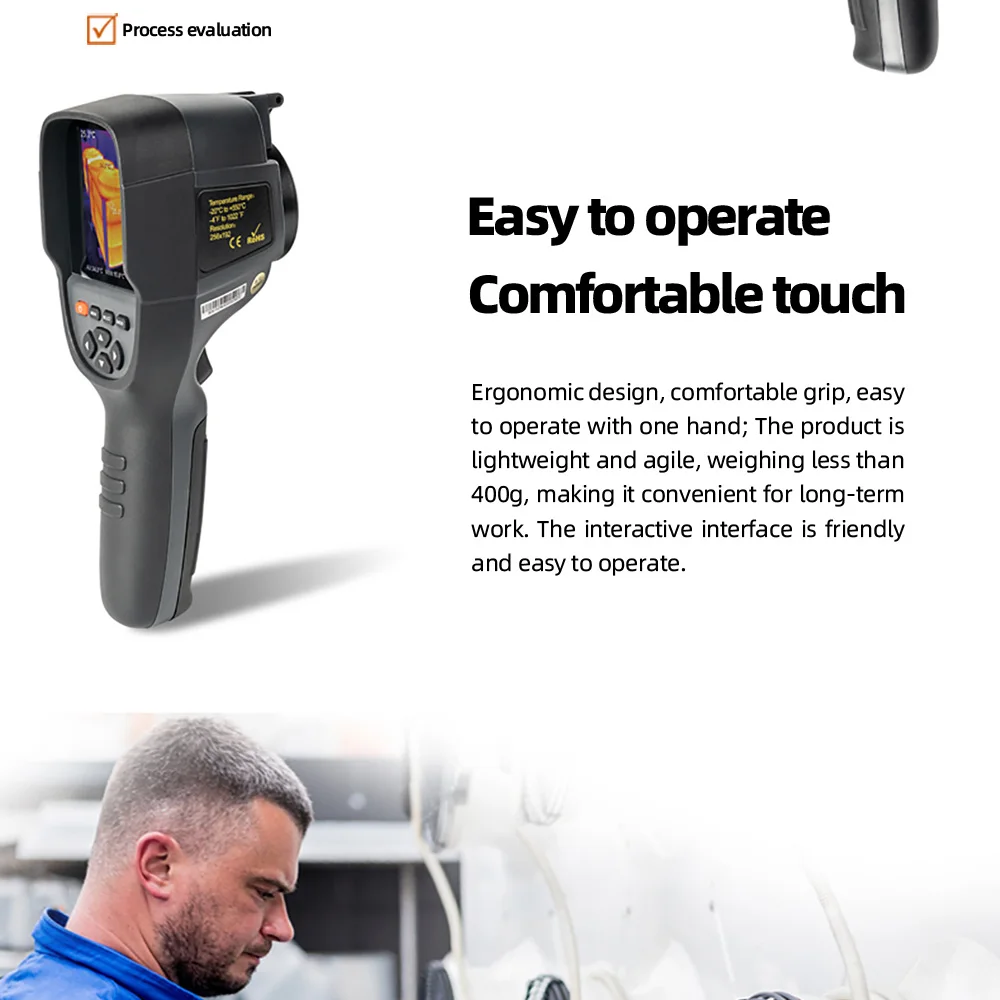

Product weigh:389g

Package List

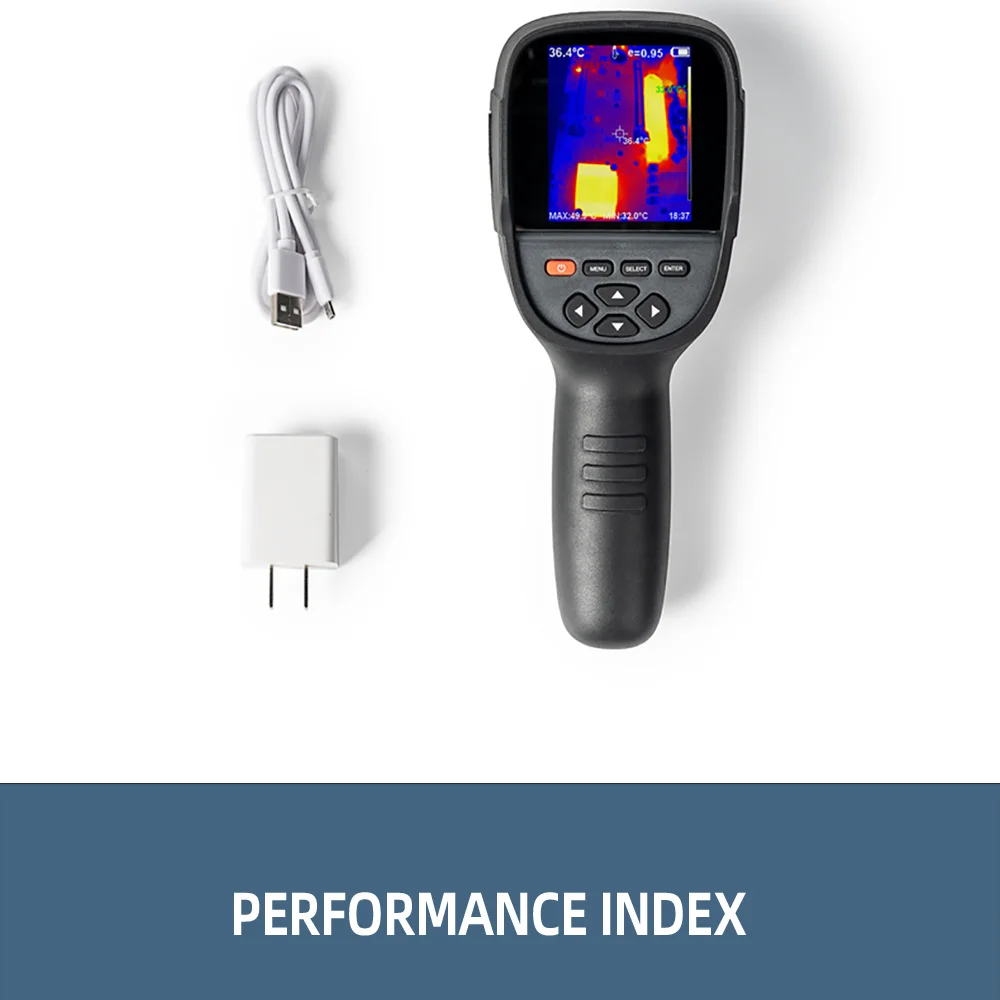

1 x Thermal Imager

1 x Type-C Cable

1 x English User Manual

1 x Box
