VIFLY ShortSaver 2 Smart Smoke Stopper Power Button Switch Electronic Fuse To Prevent Short-Circuit Over-Current 2-6S XT30 TX60

Name: VIFLY ShortSaver 2 Smart Smoke Stopper Power Button Switch Electronic Fuse To Prevent Short-Circuit Over-Current 2-6S XT30 TX60
Brand: Shipped from abroad _ Delivery in 15 days
SKU: 1005006841513022-ShortSaver 2
Price: 2985.0 KES
Availability: OutOfStock

VIFLY ShortSaver 2 Smart Smoke Stopper Power Button Switch Electronic Fuse To Prevent Short-Circuit Over-Current 2-6S XT30 TX60

KSh2,985.00

~~KSh3,038.00~~ KSh2,985.00

Sale Sold out

Shipping calculated at checkout.

Color ShortSaver 2

Product variants

Quantity

SPECIFICATIONS

Brand Name: fpvking

Model Number: VIFLY ShortSaver 2

Use: Vehicles & Remote Control Toys

For Vehicle Type: Airplanes

Material: Composite Material

Origin: Mainland China

Is Electric: No battery

Recommend Age: 14+y

Choice: yes

GET TO KNOW VIFLY ShortSaver 2

VIFLY ShortSaver2is an electronic fuse (eFuse)smoke stopper. It can provide complete protection against the short-circuit and over-current. Compared with automotive light-bulbor polyfuse products, VIFLY ShortSaver2is safer and more reliable. It would turn off the power to a device that drew in excess of the threshold within just 3ms(15ms). In addition, VIFLY ShortSaver2can cut the current completely while others still have leakage current.

Operation

- Plug the battery into the ShortSaver 2 firstly, the yellow led is on that means the ShortSaver 2 is ready to work.

lShort press 1A/2A button to select the 1A or 2A current threshold. We recommend using 1A option for most of your RC builds .

- Connect ShortSaver 2 with your device, then short press the POWER ON/OFF button. If the green led is on, it means your build is normal. If the green led is off and red led is on, it means your device is short-circuit or over-current and ShortSaver 2 gets into the overload protection status.

- Short press the POWER ON/OFF button to turn on/off the power.

- Long press to get into the trip time setting mode, short press to change different trip time and long press again to save the setting.

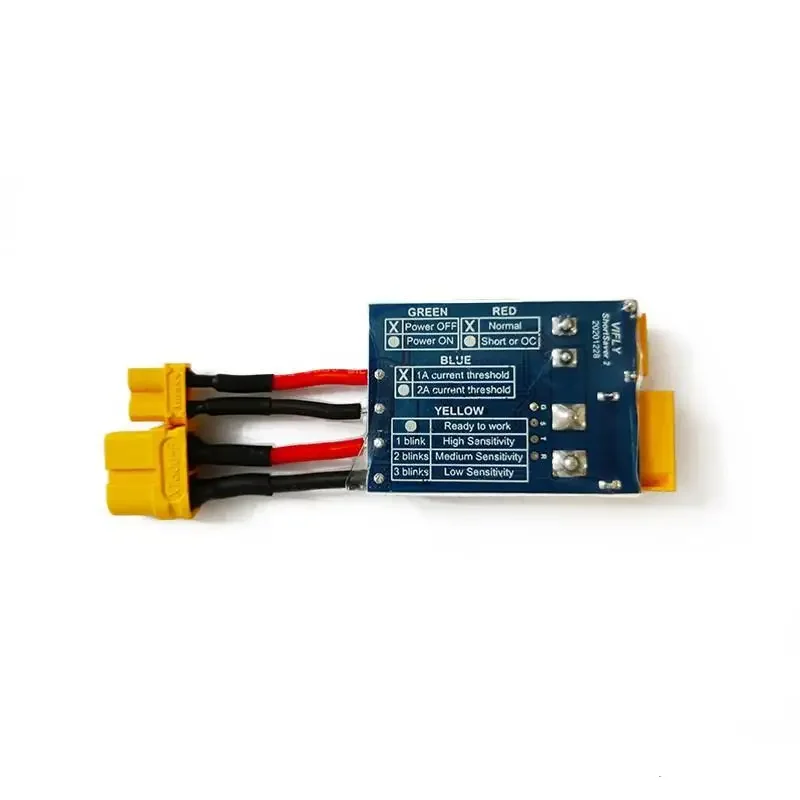

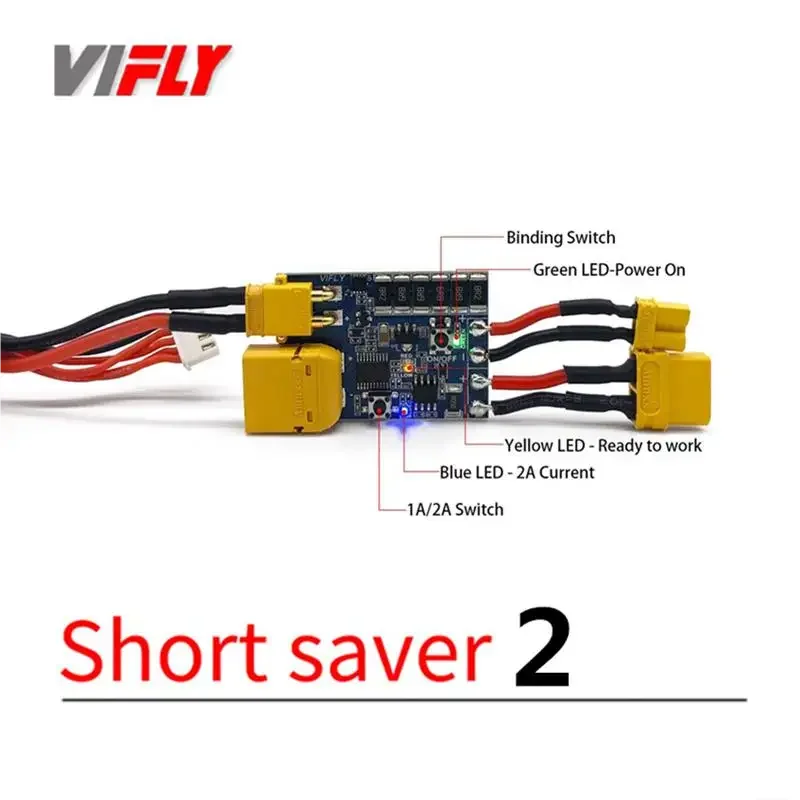

LED Indication

Red LED	Status
×	Normal
●	Short or over-current

Green LED	Status
×	Power off
●	Power on

LED Blue	Status
×	1Acurrent threshold
●	2A current threshold

Yellow LED	Status
●	Ready to work
1 blink	3ms(short-circuit)15ms(over-current)
2blinks	5ms(short-circuit)20ms(over-current)
3blinks	7ms(short-circuit)30ms(over-current)
