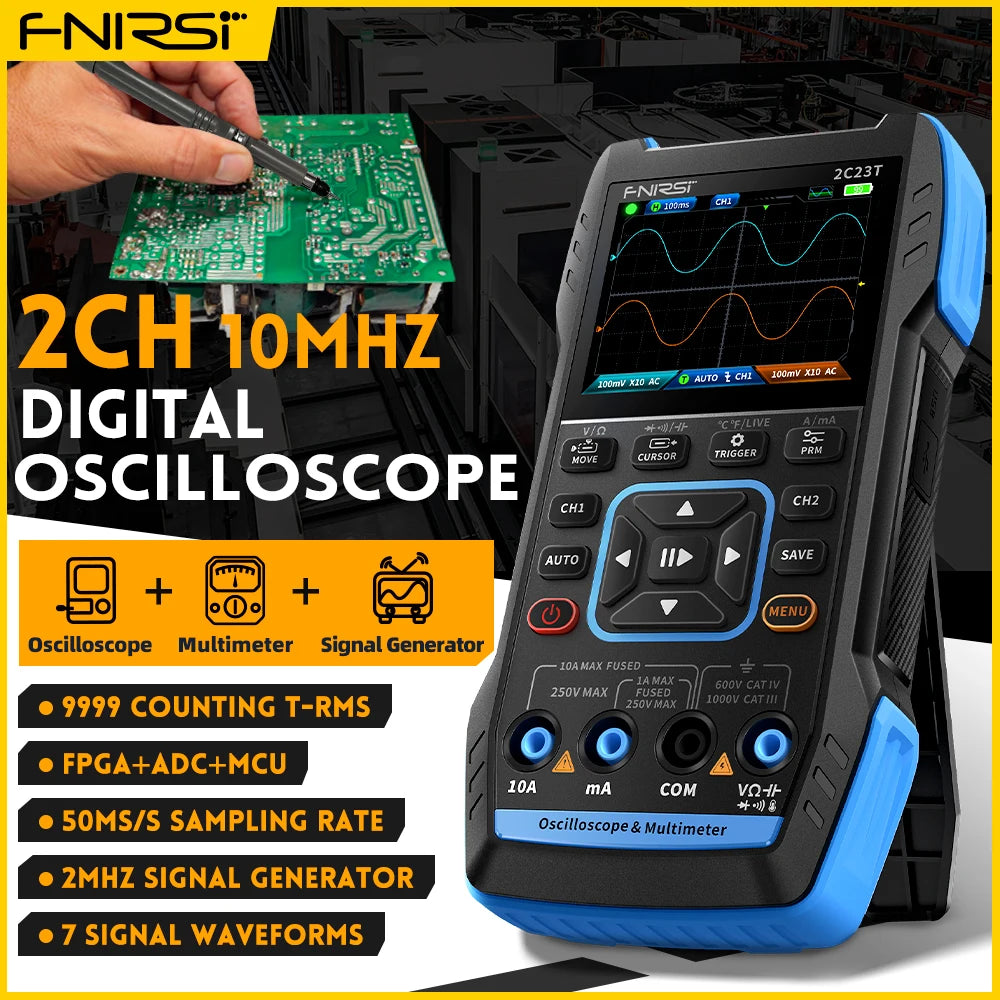

FNIRSI 2C23T Handheld Digital Oscilloscope Multimeter + Function Signal Generator 2023 Latest 3IN1 Dual Channel 10MHZ*2 50MS/s

FNIRSI 2C23T Handheld Digital Oscilloscope Multimeter + Function Signal Generator 2023 Latest 3IN1 Dual Channel 10MHZ*2 50MS/s

Regular price KSh20,241.32
Regular price KSh15,122.00 Sale price KSh20,241.32
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Brand Name: FNIRSI

FNIRSI Model: 2C23T

Origin: Mainland China

Hign-concerned Chemical: None

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 2

Model Number: 2C23T

Display Size: None

Real Time Sampling Rate: 50M

Band Width: 10M*2

Channel: Dual channel

Storage depth: 32kb

Impedance: 1MΩ

Time Base Range: 50ns-10s

Vertical sensitivity: 20mV-10V

Maximum measured voltage: ±400V

Trigger mode: AUTO/Normal/Single

Trigger type: Rising edge, Falling edge

Display mode: YT/Scroll

Coupling method: AC/DC

Save waveform screenshot: Yes

Export waveform images: Yes

Channel: Single channel

Frequency: 1Hz-2MHz

Amplitude: 0.1-3.3V

DC Voltage: 9.999V-999.9V

AC voltage: 9.999V-750.0V

DC current: 9999uA-9.999A

AC current: 9999uA-9.999A

Resistance: 999.9Ω-99.99MΩ

Capacitance: 9.999mF-999.9nF

Temperature: -55~1300℃ / -67~2372℉

Diode: Support

Continuity test: Support

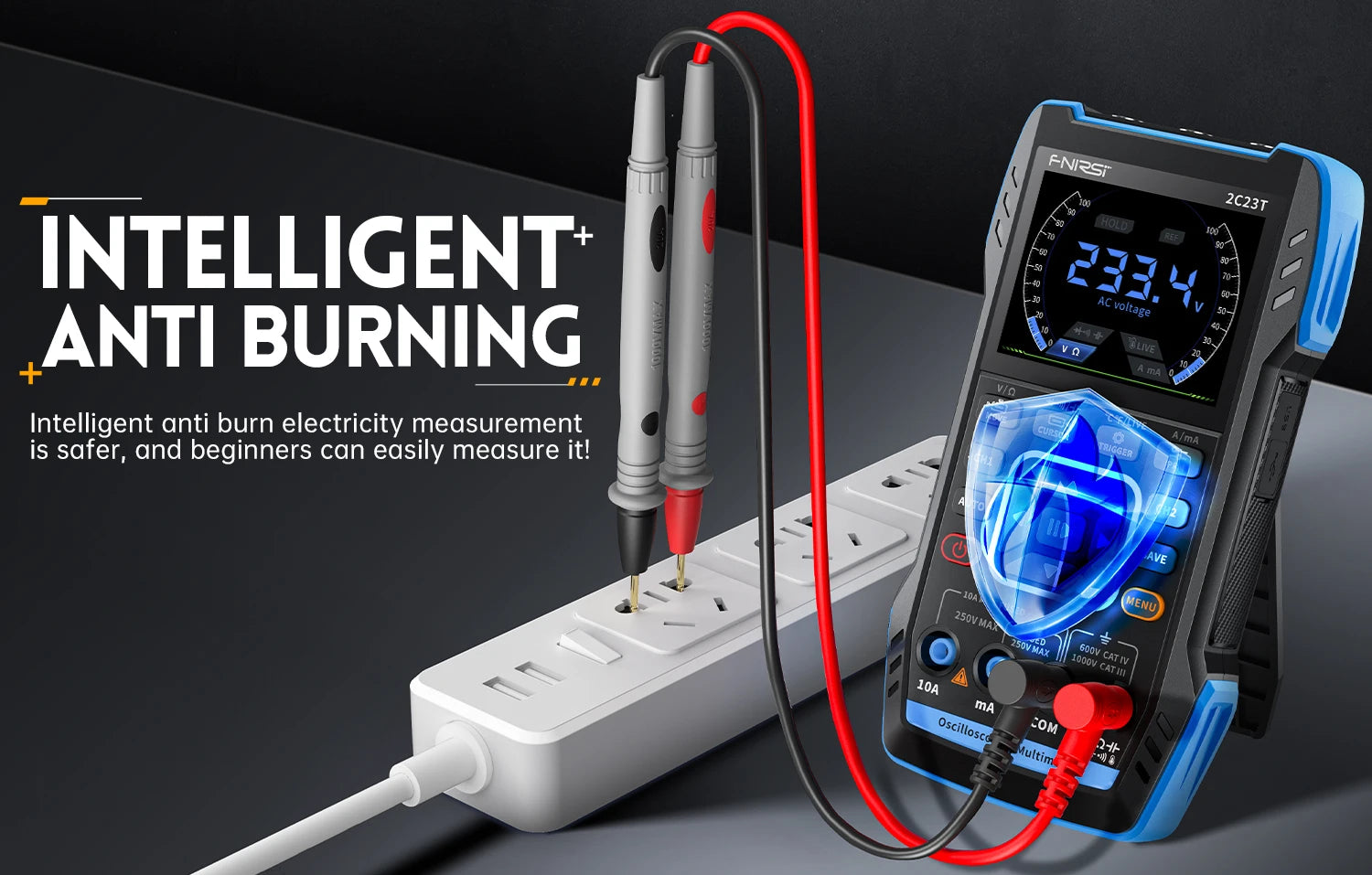

Live line detection: Support

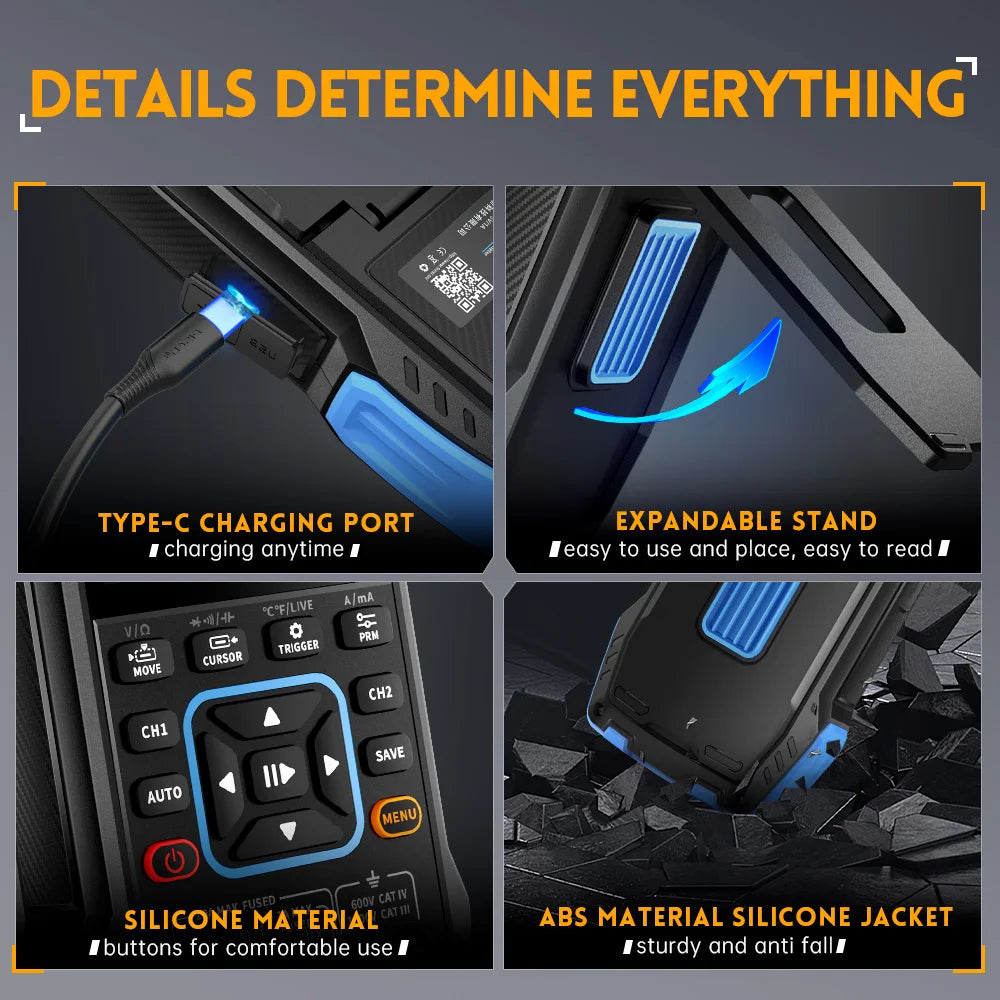

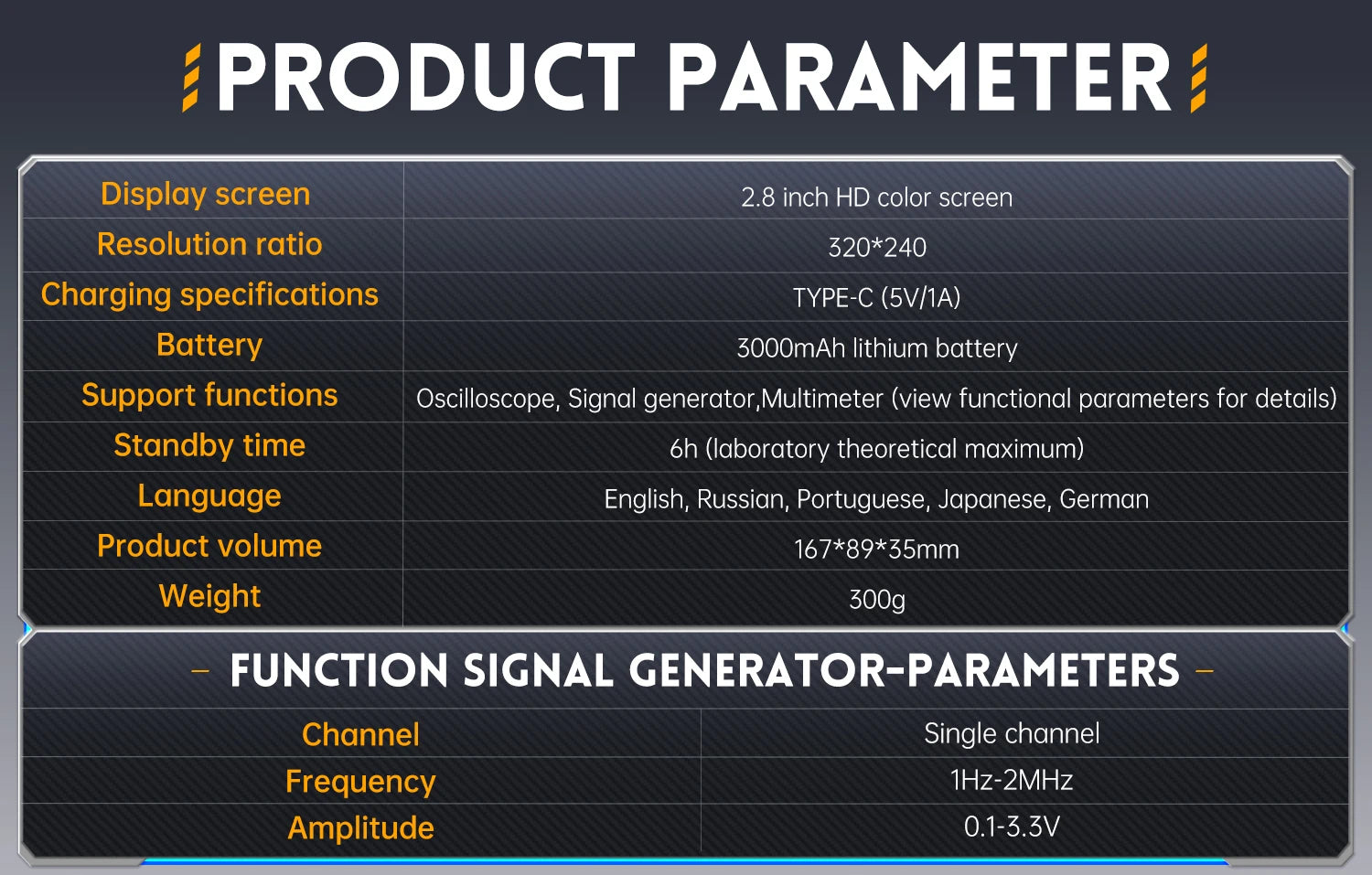

Ladeanschluss: USB TYPE-C (5V/1A)

Batterie: 3000mAh Lithium Akku

Standby Zeit: 6h (theoretisches Maximum, Laborwert)

Abmessungen: 167*89*35 mm

Gewicht: About 300g

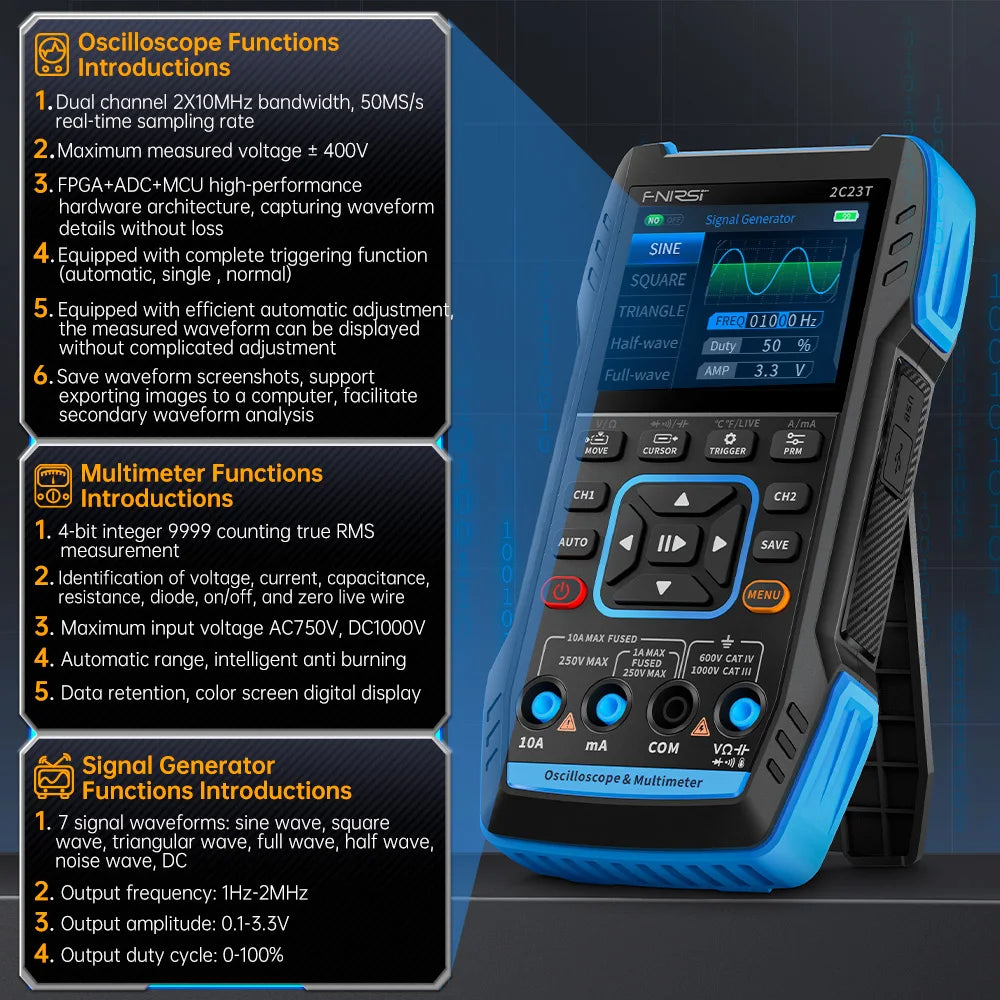

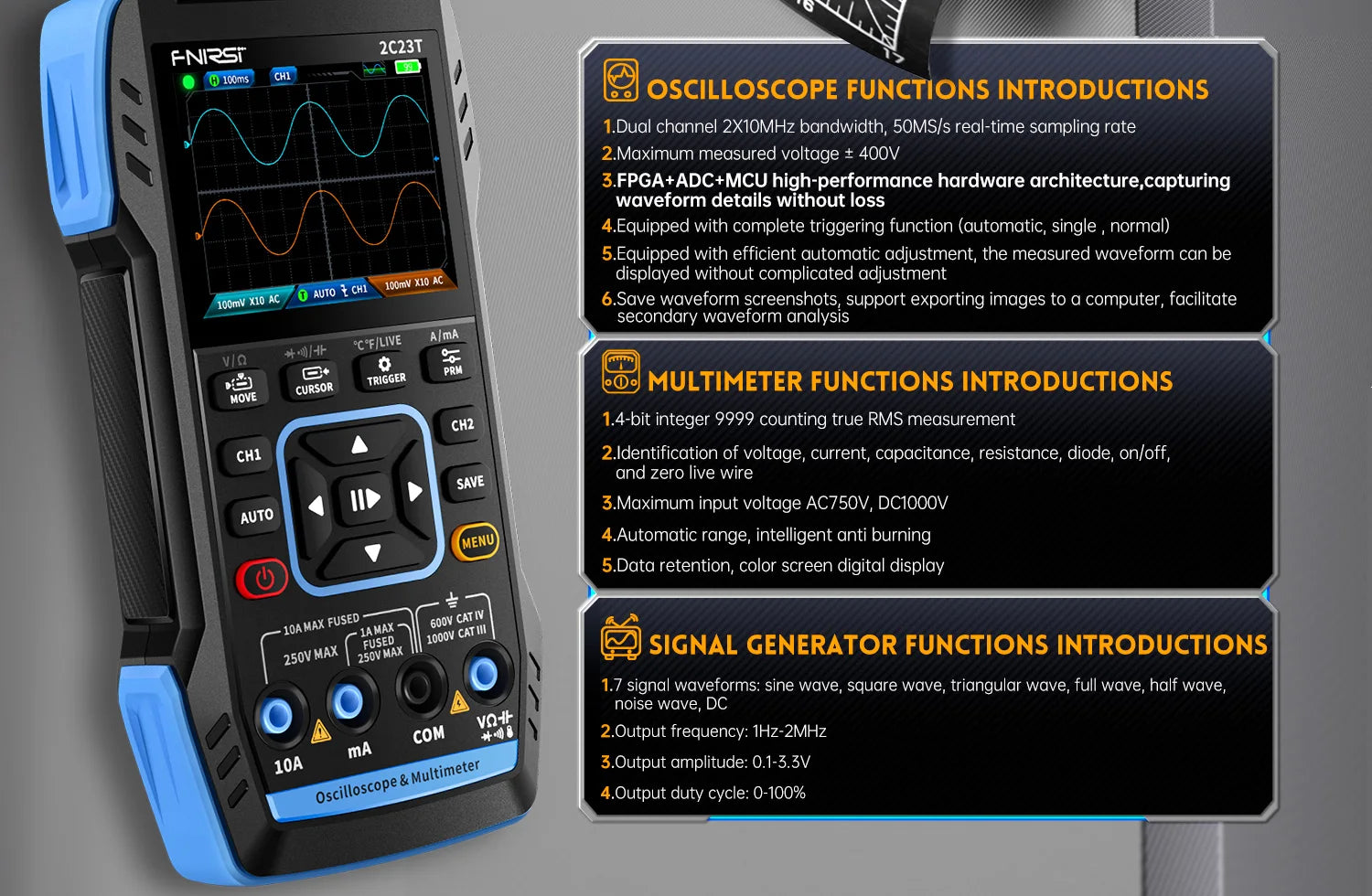

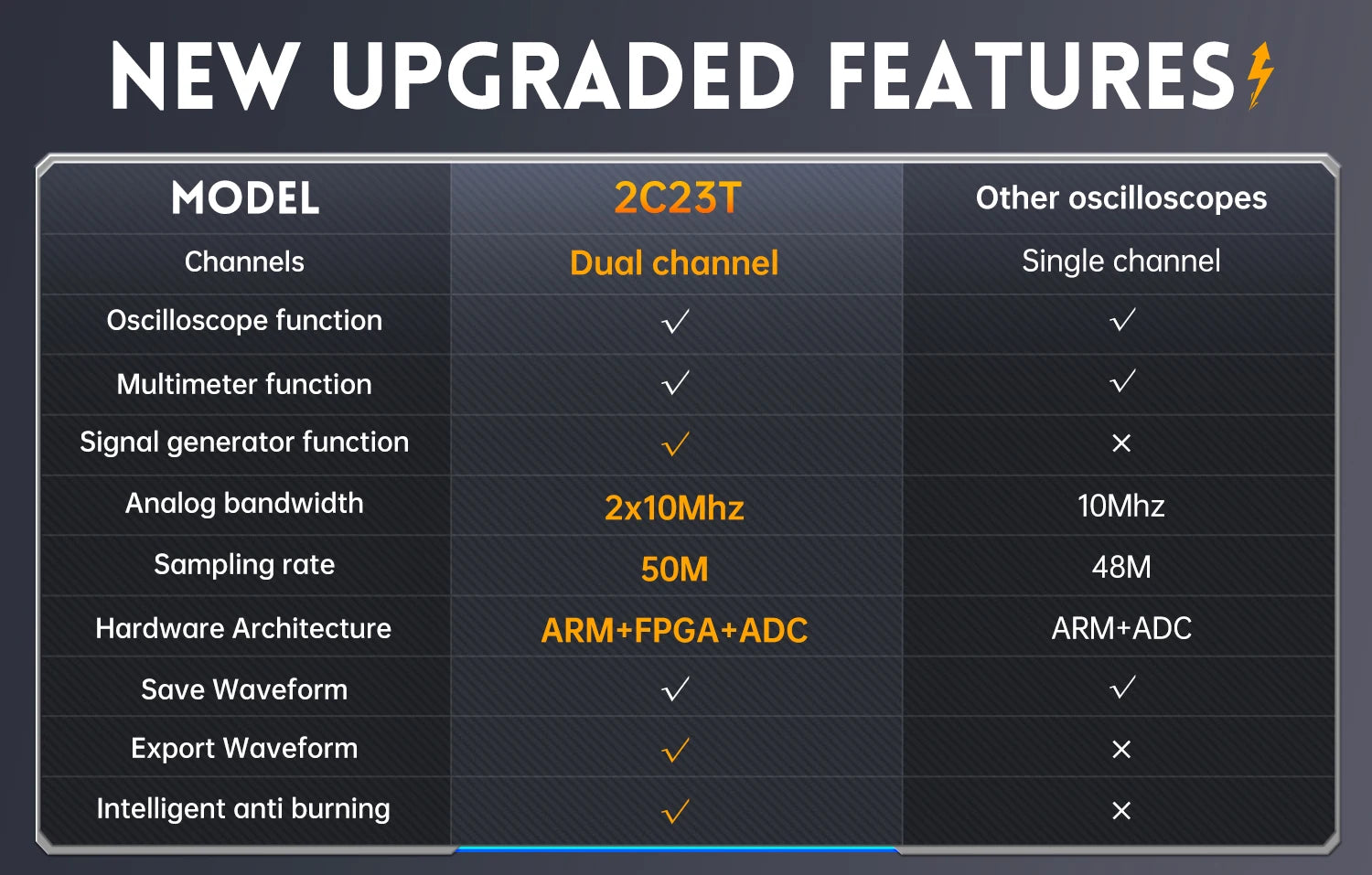

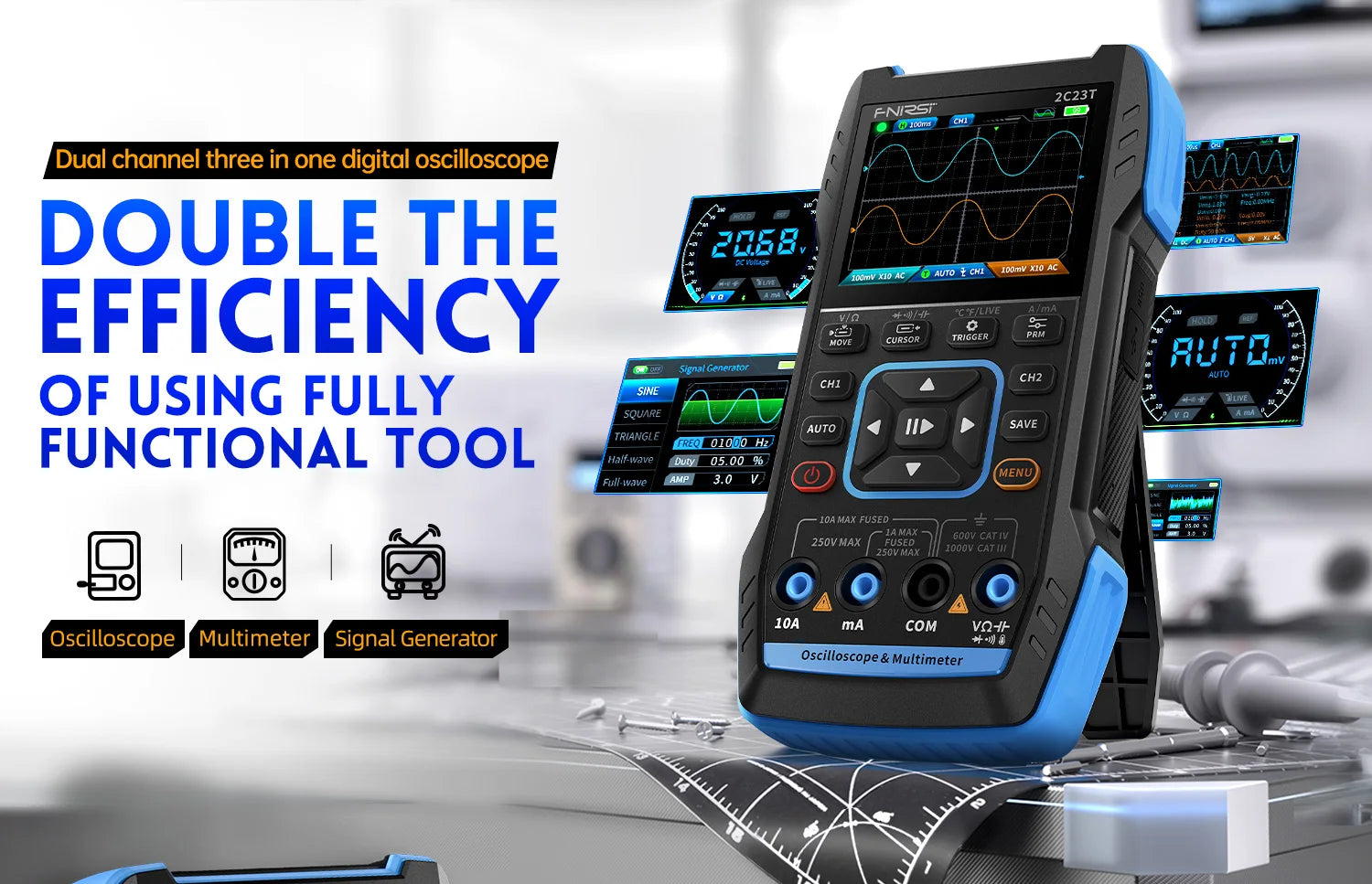

FNIRSI-2C23T is a fully functional, highly practical, three in one dual channel digital oscilloscope designed for the maintenance industry and development industry launched by FNIRSI.
This device is equipped with three main functions of oscilloscope, multimeter, and signal generator.

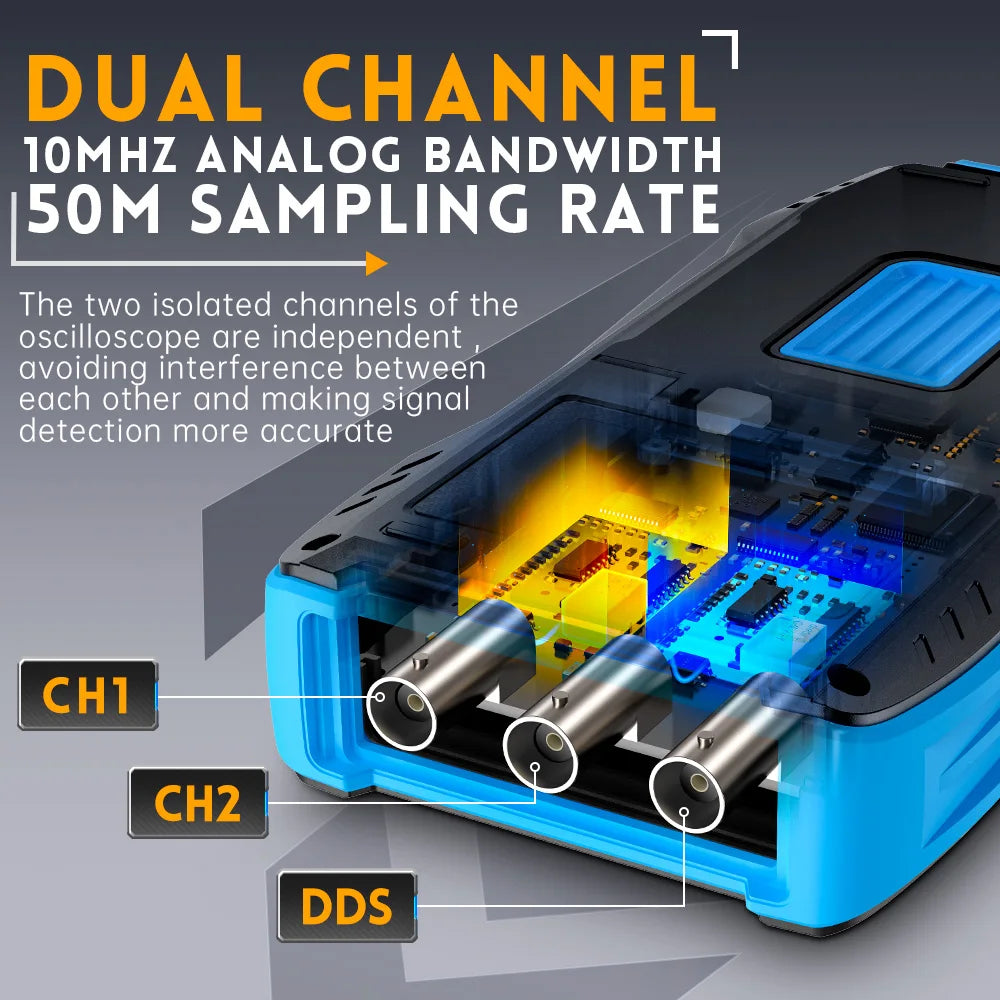

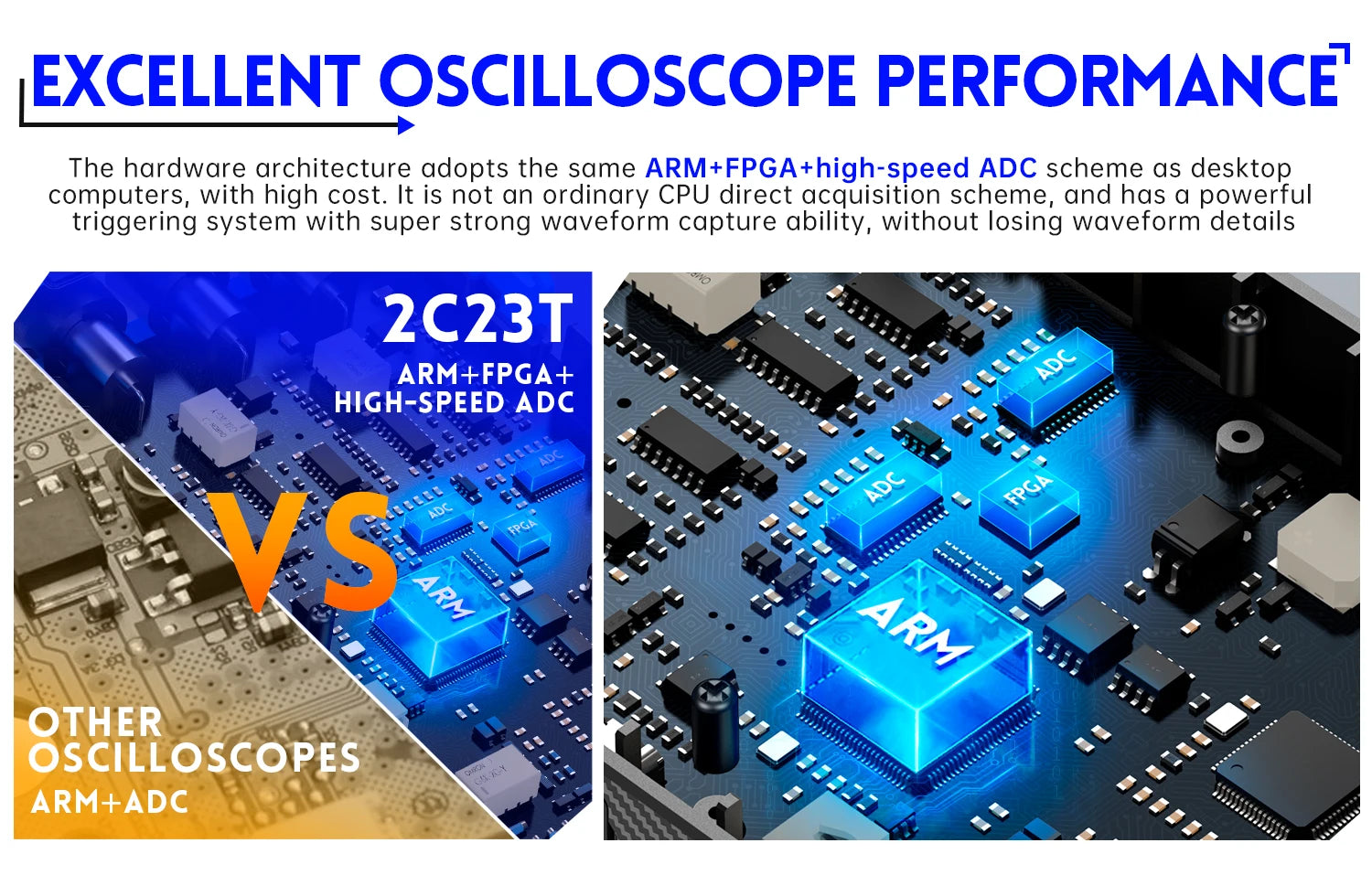

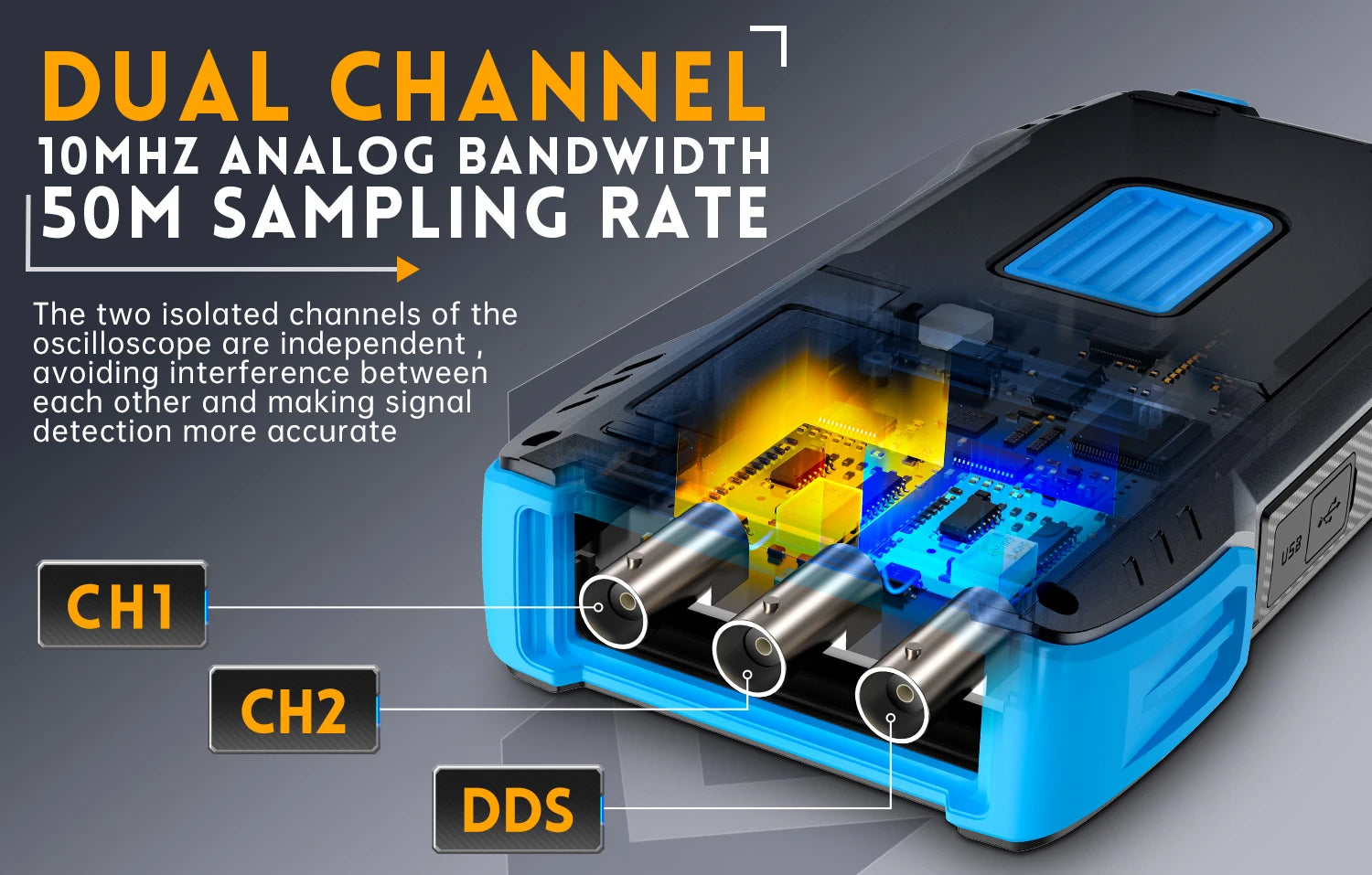

The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V;
Support for saving and viewing waveform screenshots for analysis .The multimeter has a 4-digit 10000 point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off and other measurement functions.
Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument.
Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.

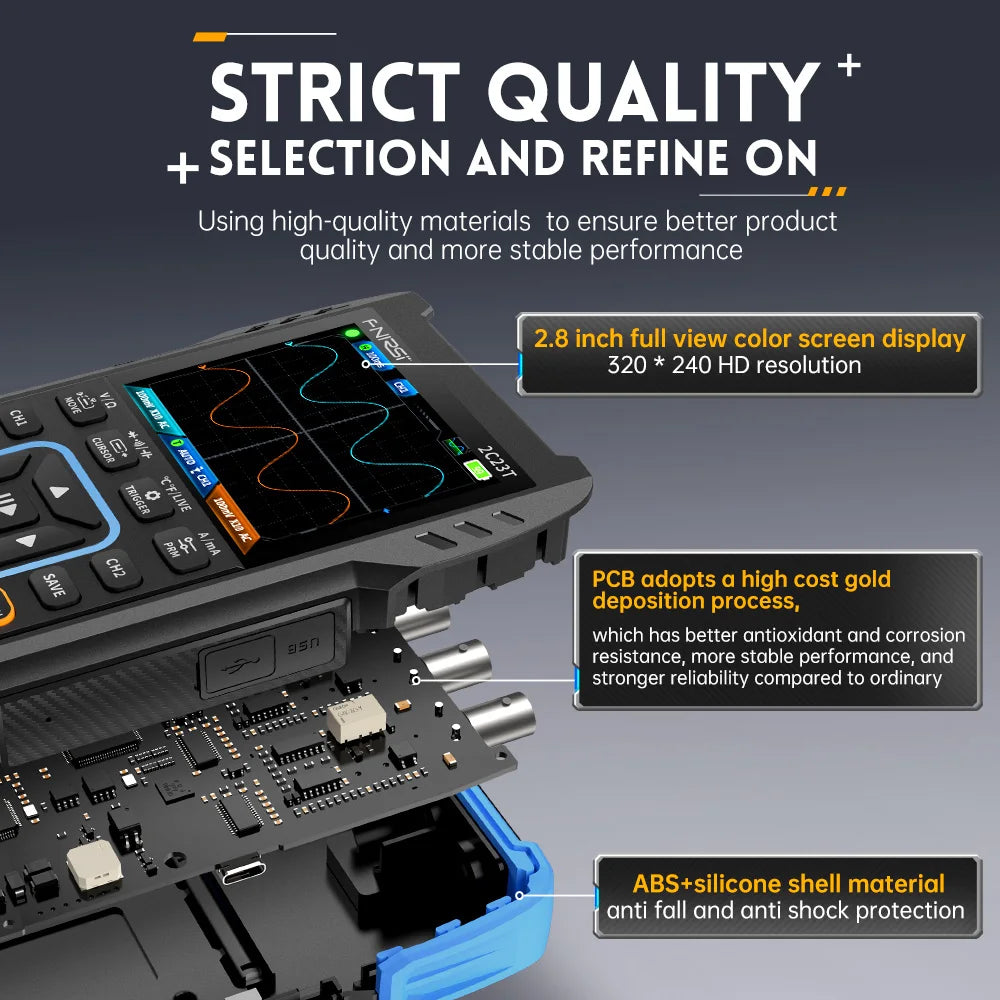

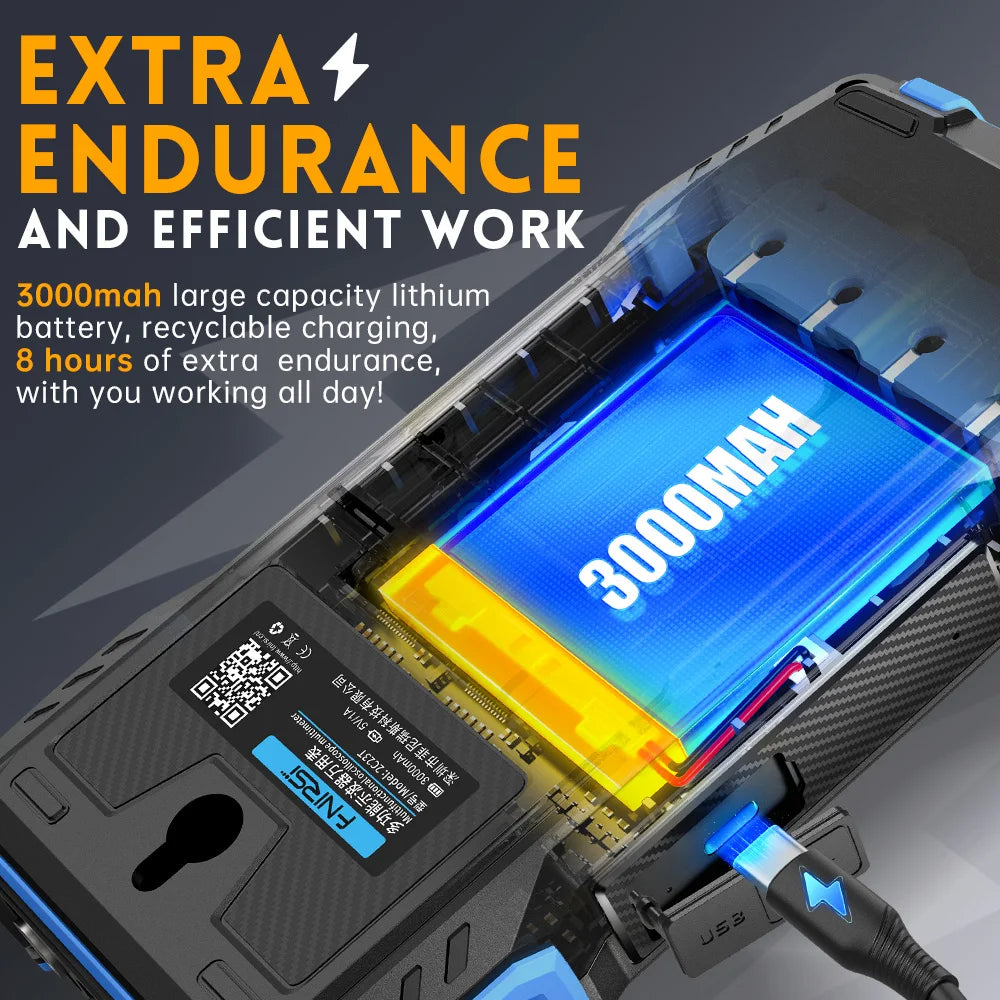

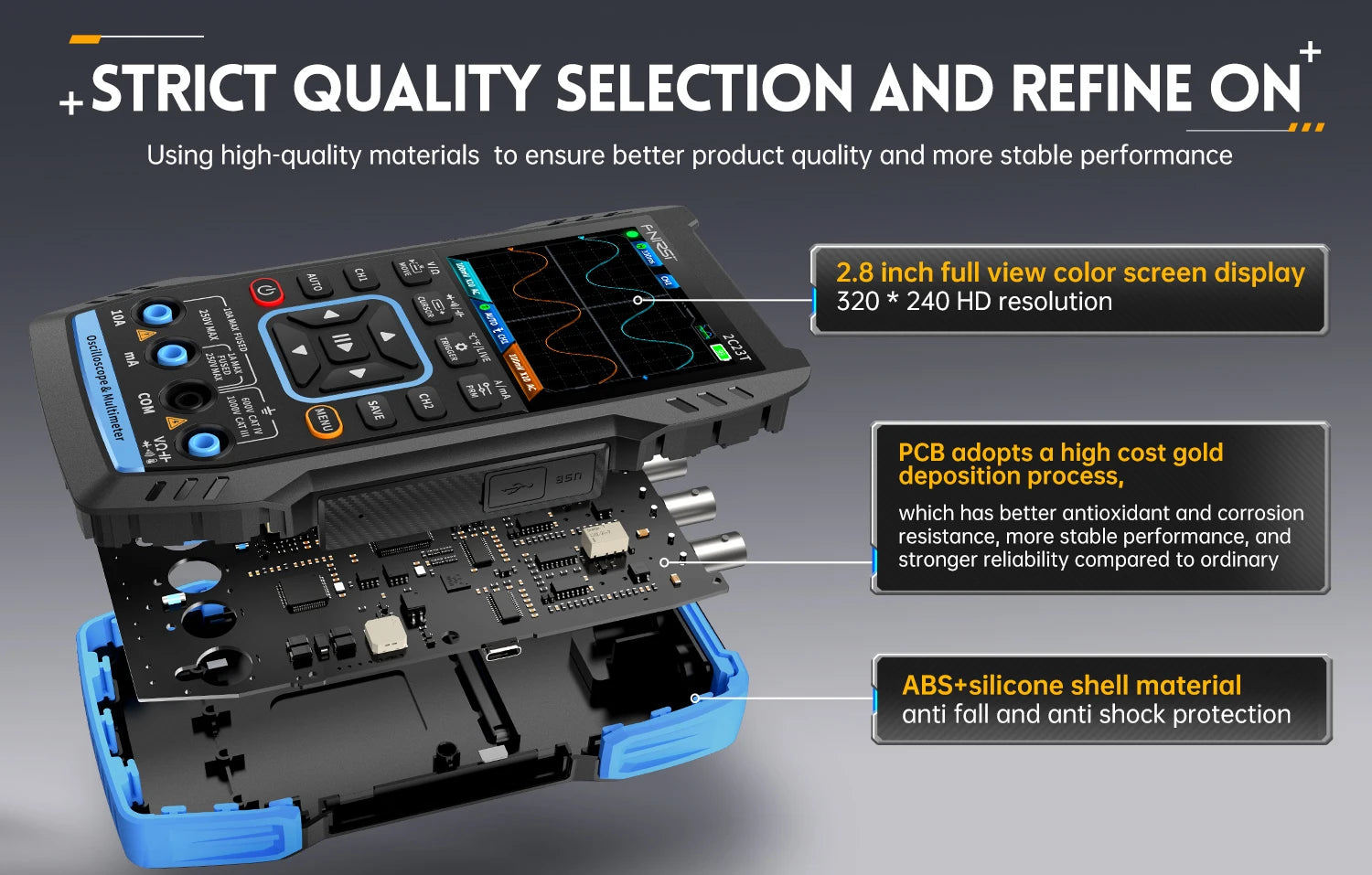

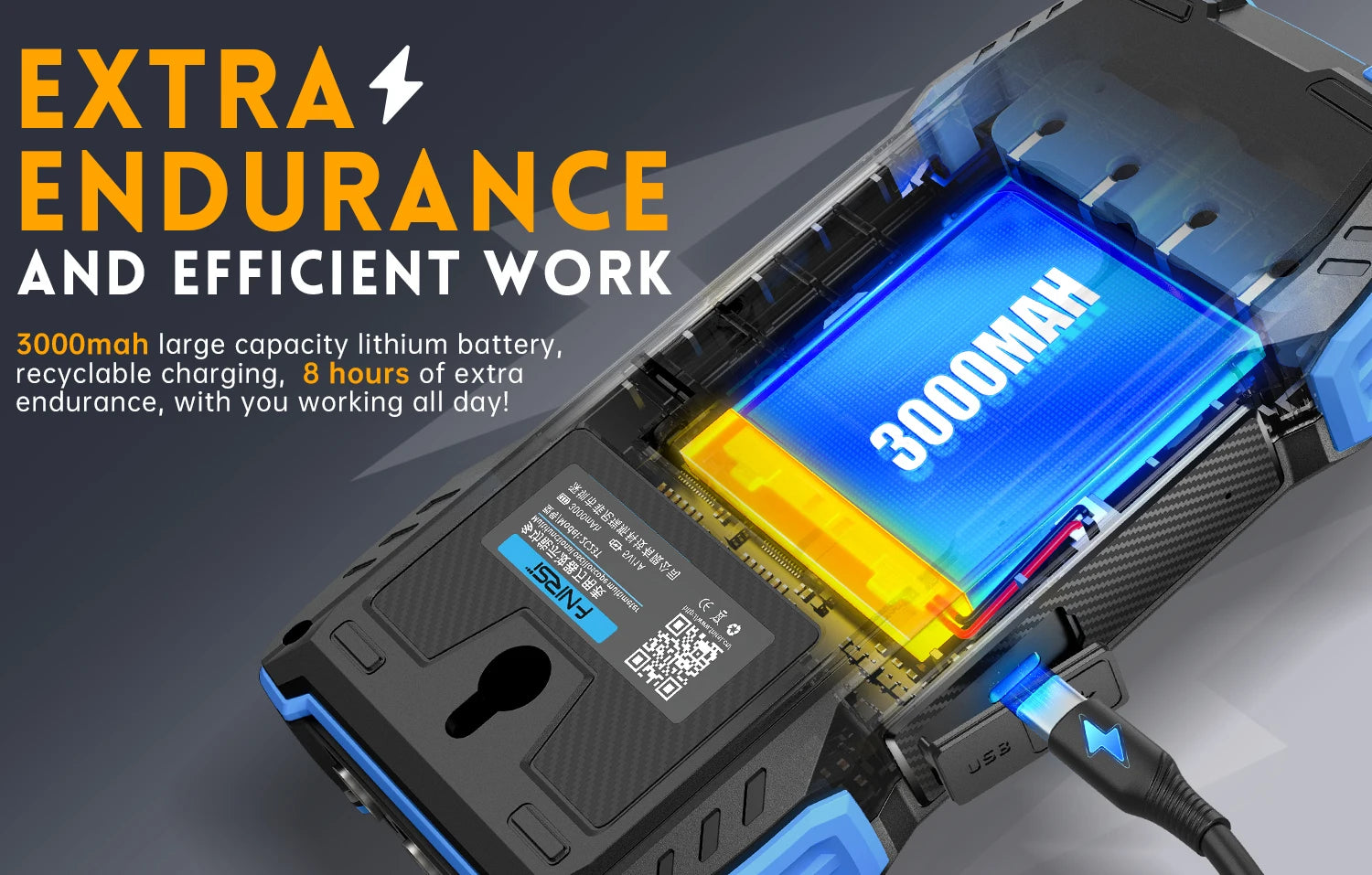

Using a 2.8 inch 320 * 240 resolution high-definition LCD display screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6 H. Provide users with more and stronger practical functions in a compact size, while also having good portability.

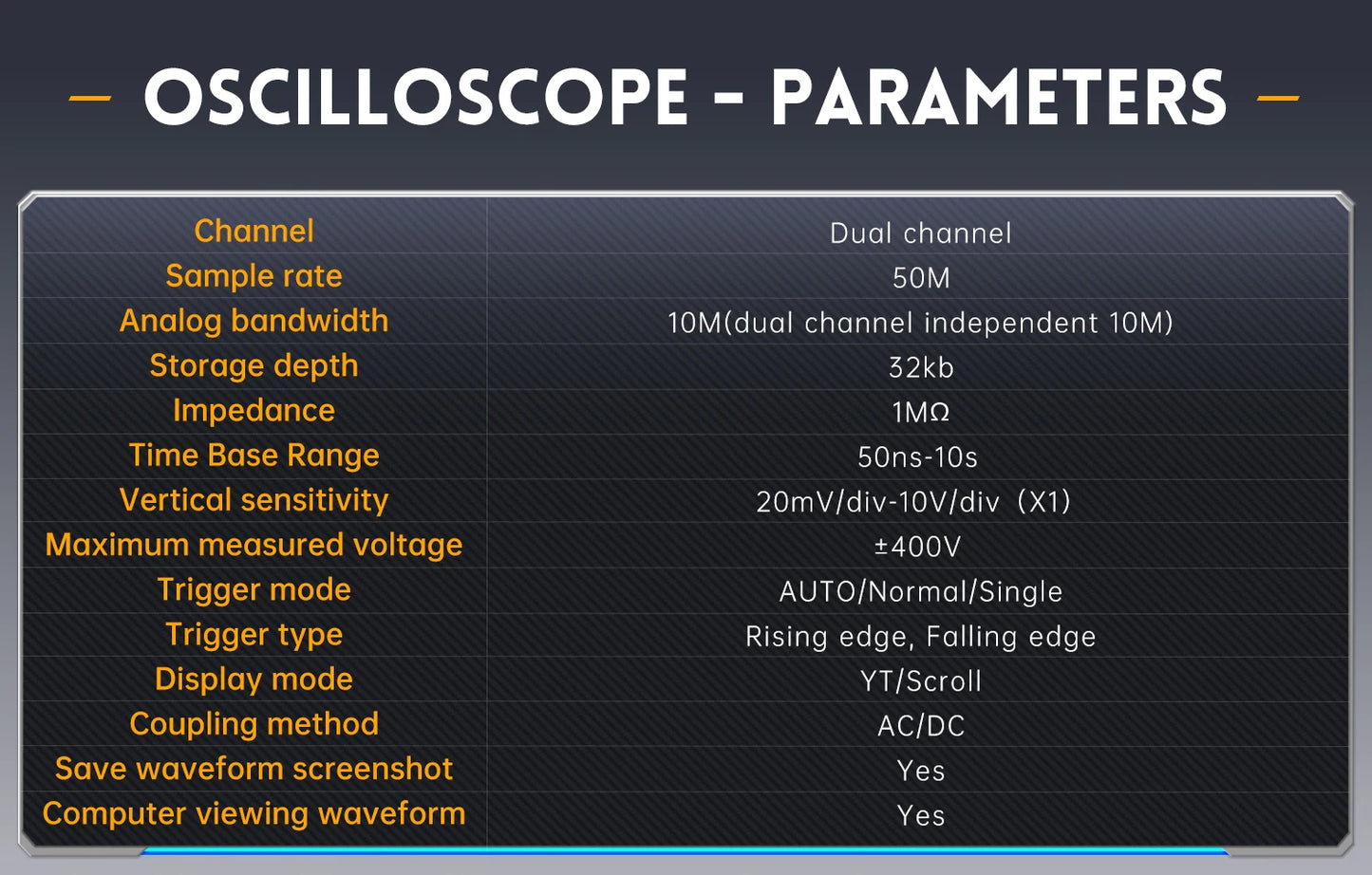

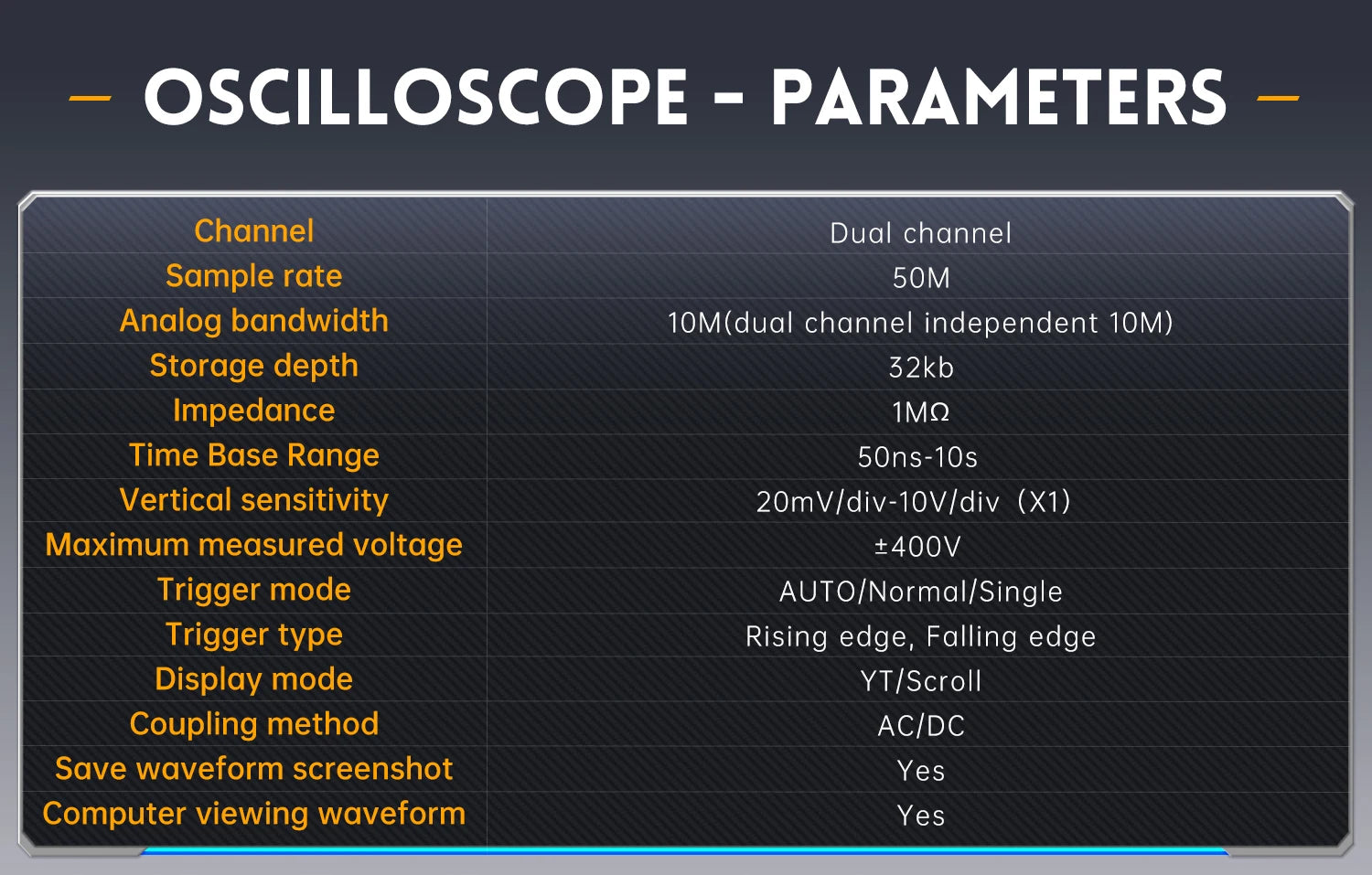

Oscilloscope

Oscilloscope
Channel:Dual channel
Sample rate:50M
Analog bandwidth:10M(dual channel independent 10M)
Storage depth:32kb
Impedance:1MΩ
Time Base Range:50ns-10s
Vertical sensitivity:20mV/div-10V/div(X1)
Maximum measured voltage:±400V

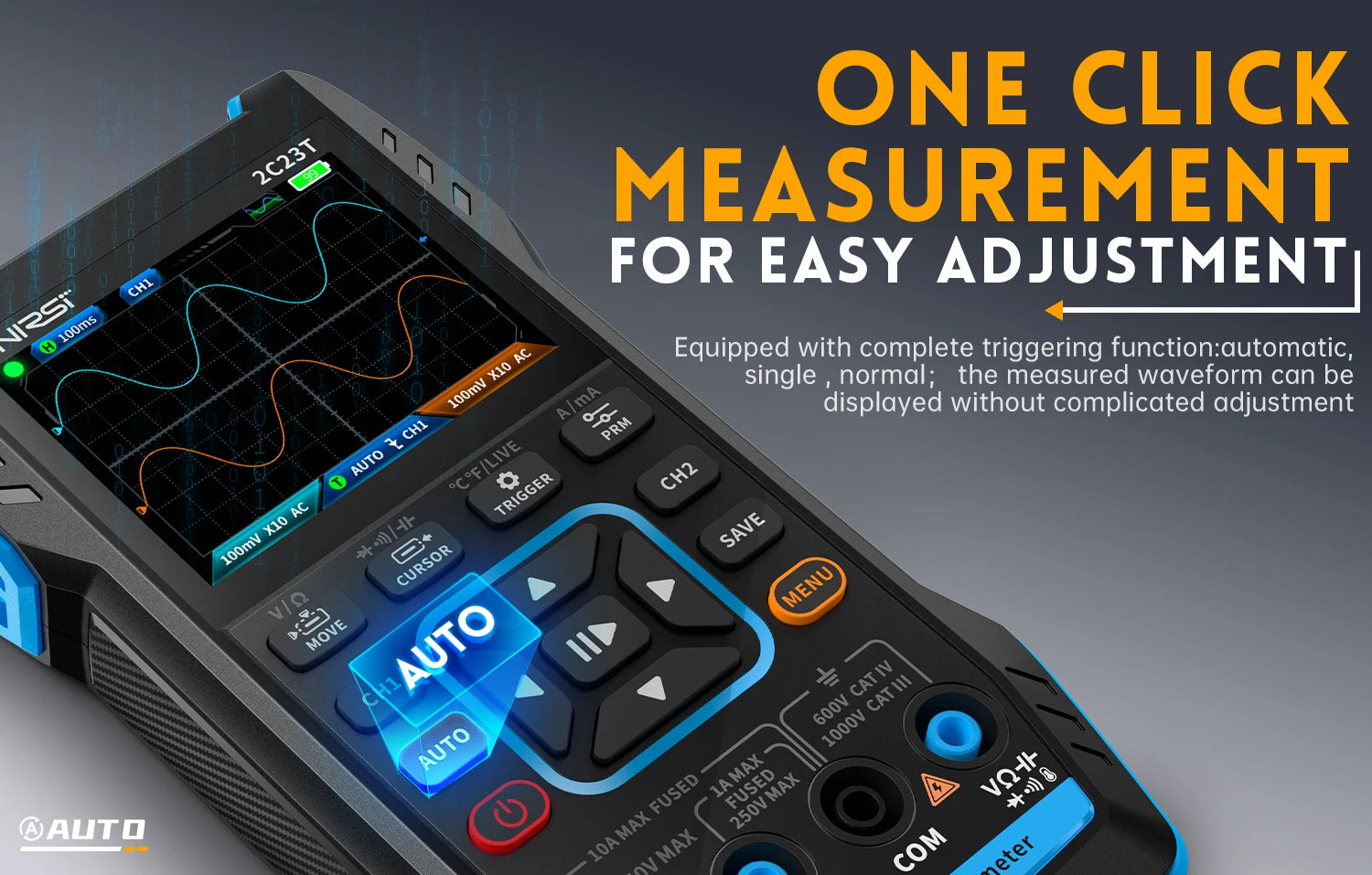

Trigger mode:AUTO/Normal/Single
Trigger type:Rising edge, Falling edge
Display mode:YT/Scroll
Coupling method:AC/DC

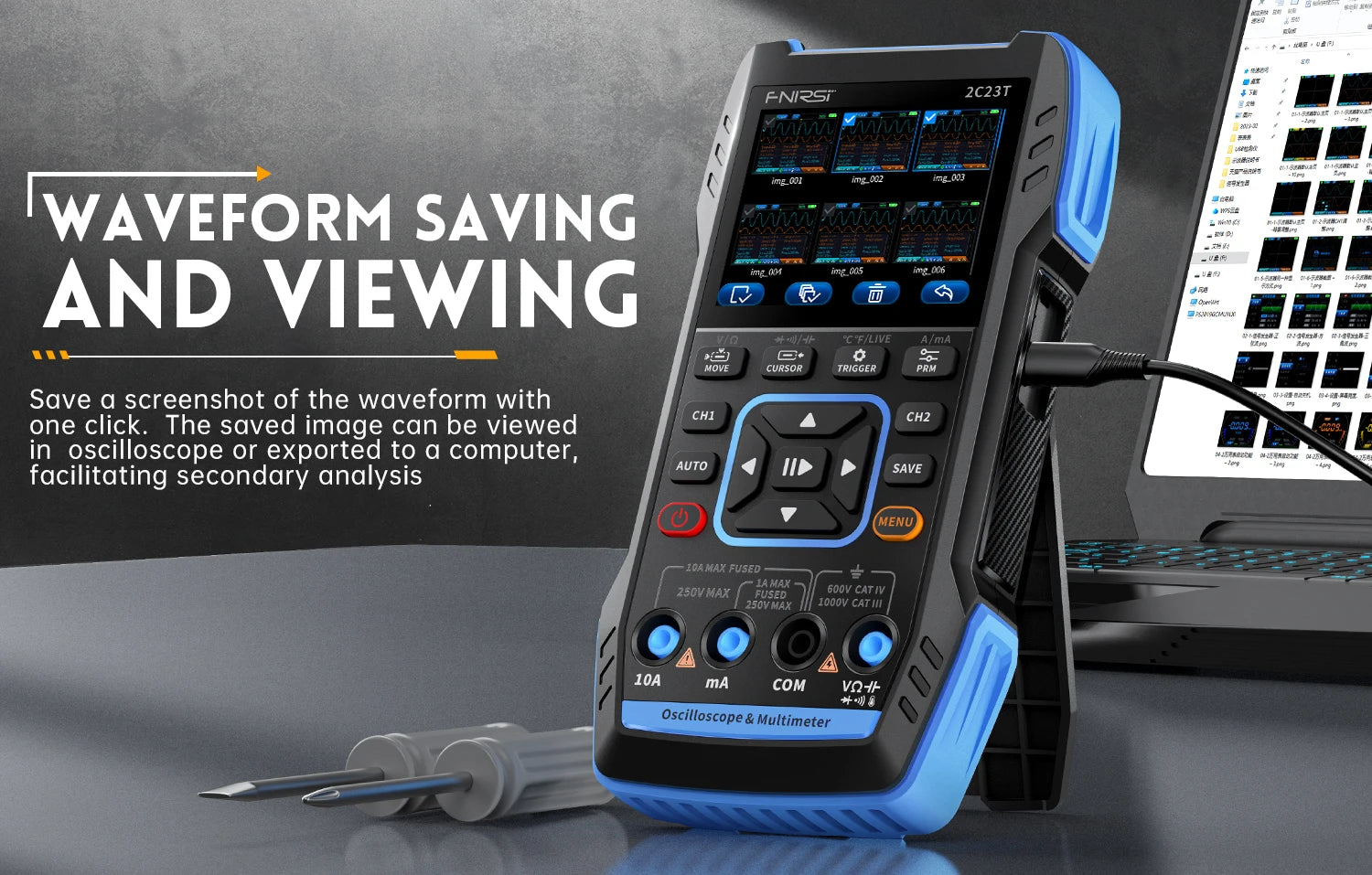

Save waveform screenshot:Yes
Export waveform images:Yes

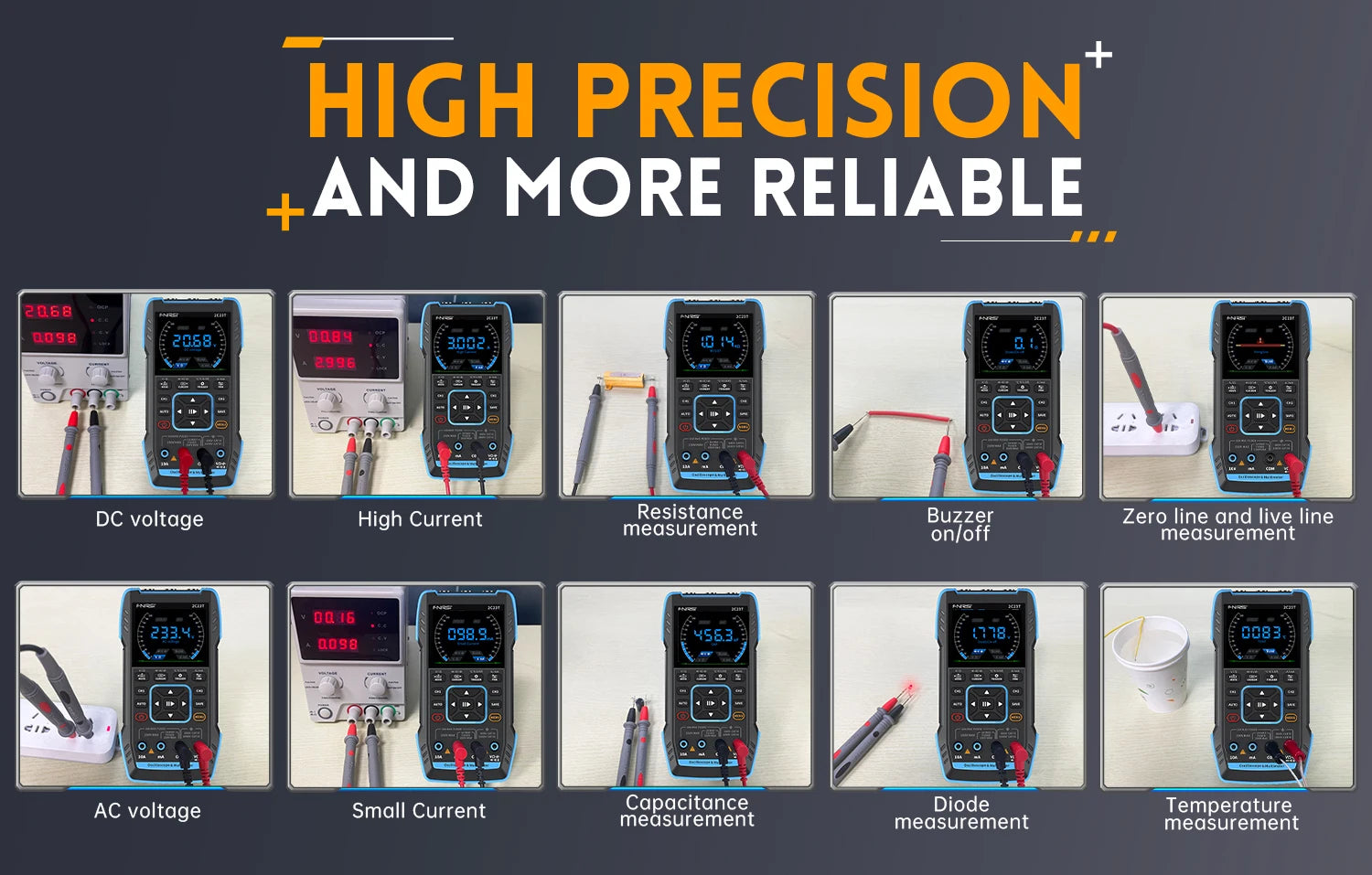

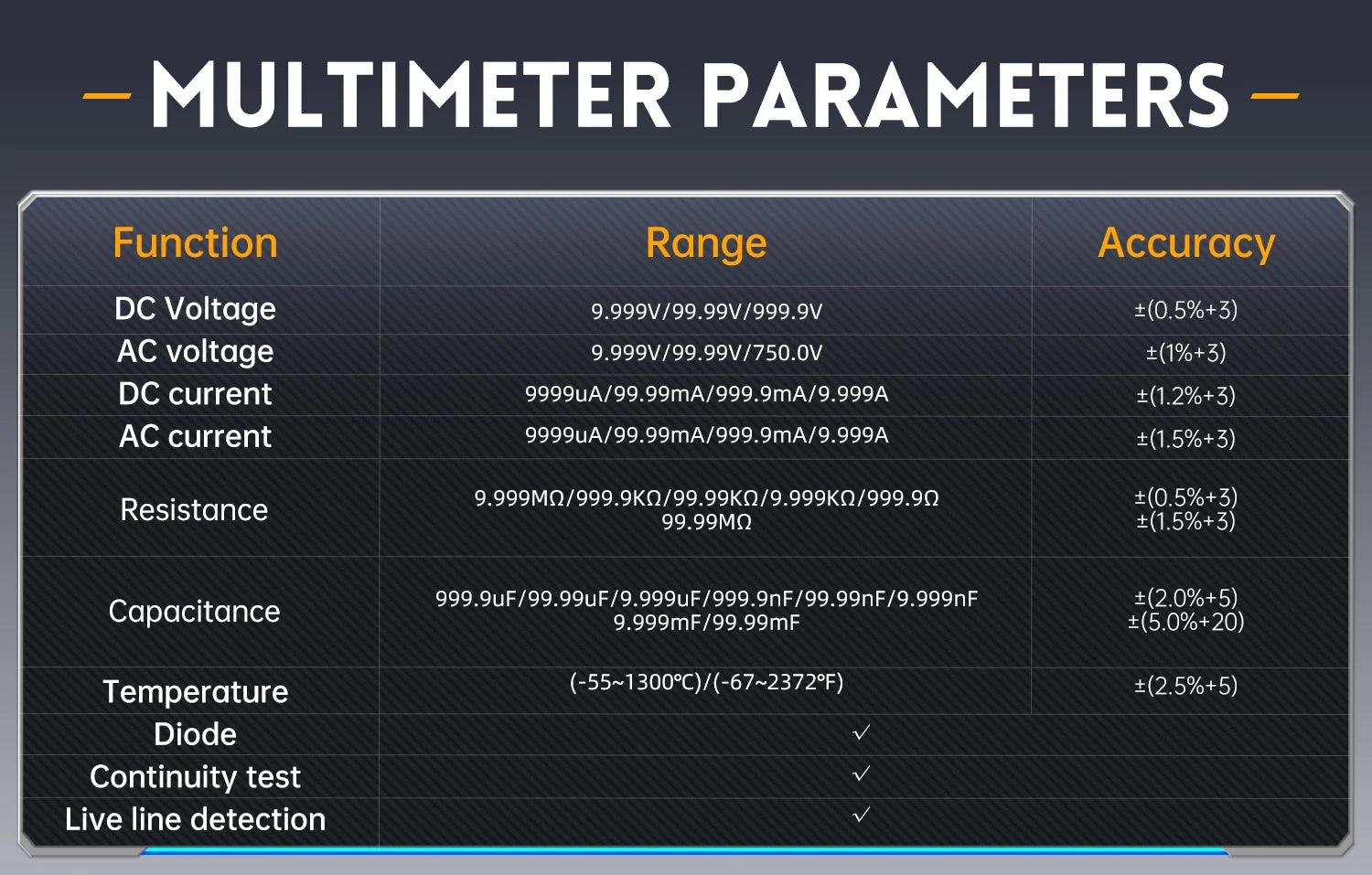

Multimeter

DC Voltage:9.999V~999.9V
AC voltage:9.999V~750.0V
DC current:9999uA~9.999A
AC current:9999uA~9.999A
Resistance:999.9Ω~99.99MΩ
Capacitance:9.999nF 99.99mF
Temperature:(-55~1300℃)/(-67~2372℉)
Diode:Yes
Continuity test:Yes
Live line detection:Yes

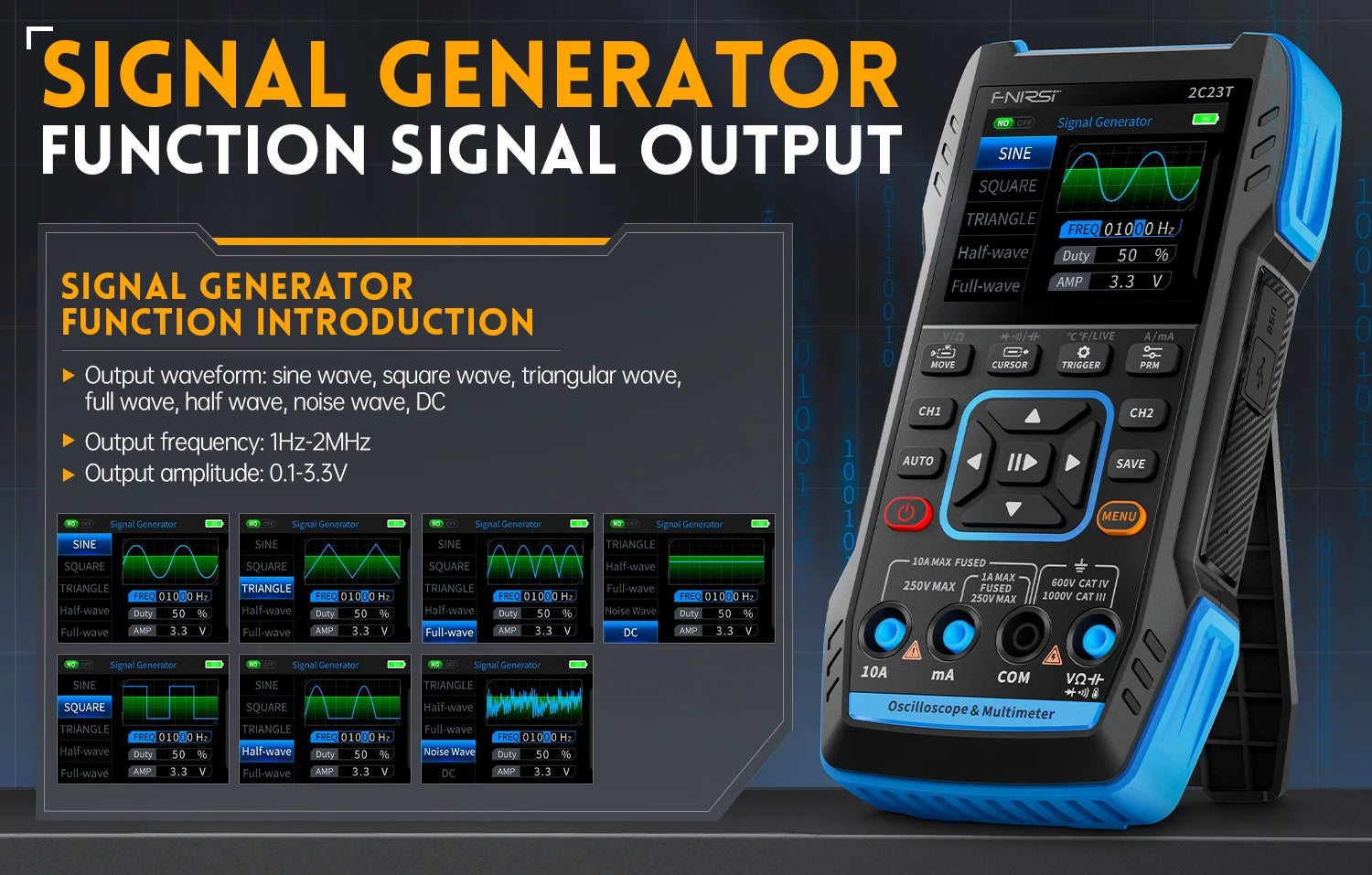

Function Signal Generator

Channel:Single channel
Frequency:1Hz-2MHz
Amplitude:0.1-3.3V

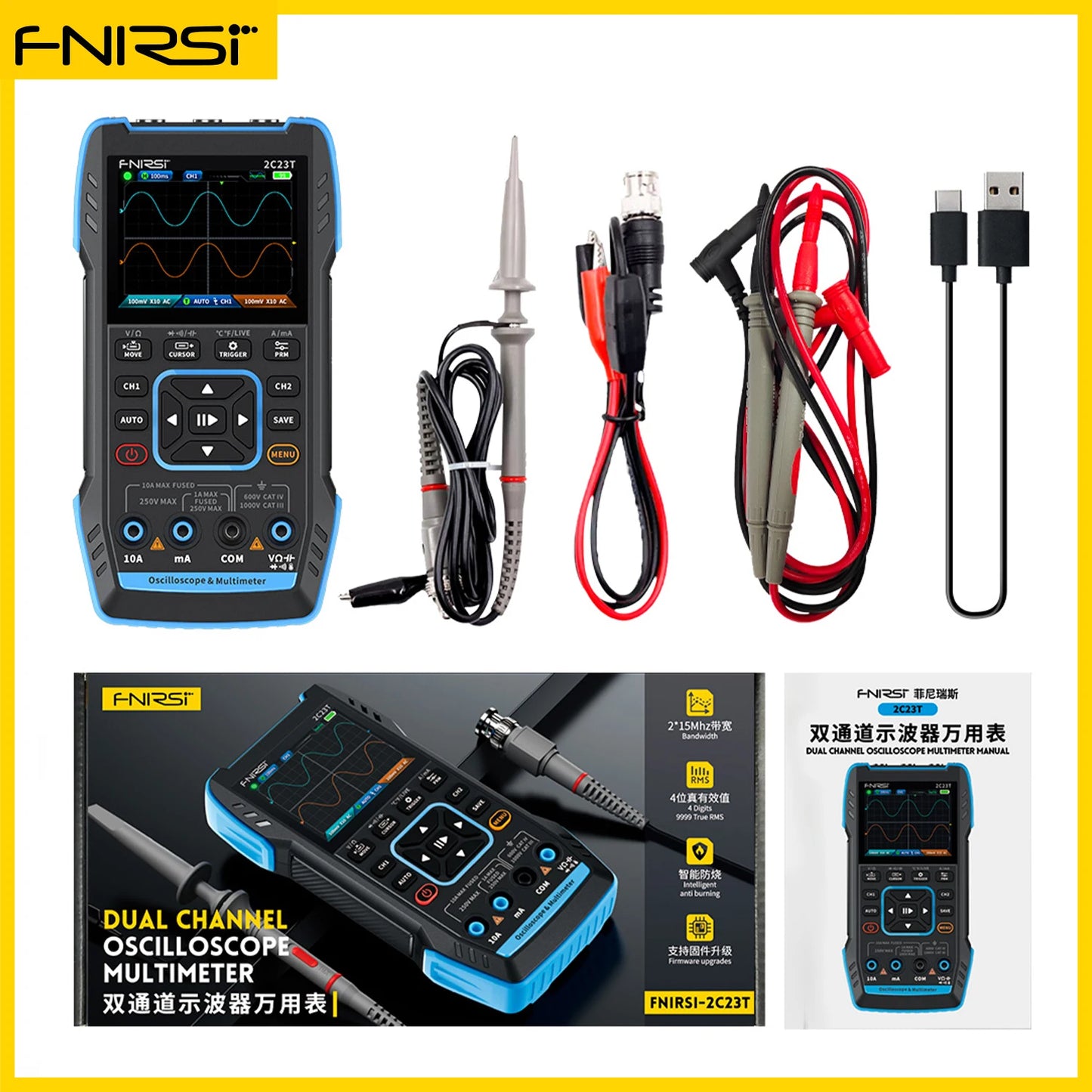

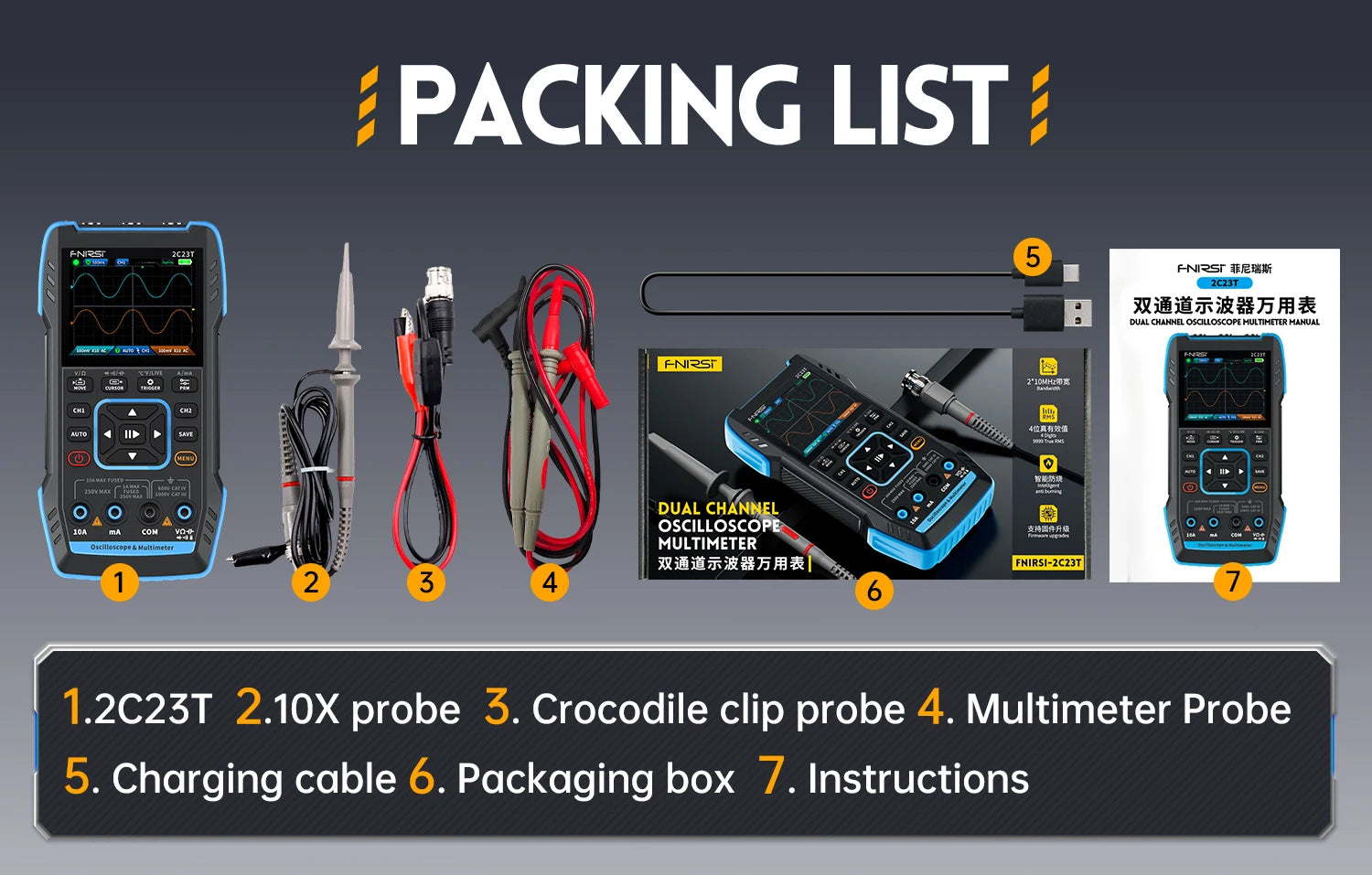

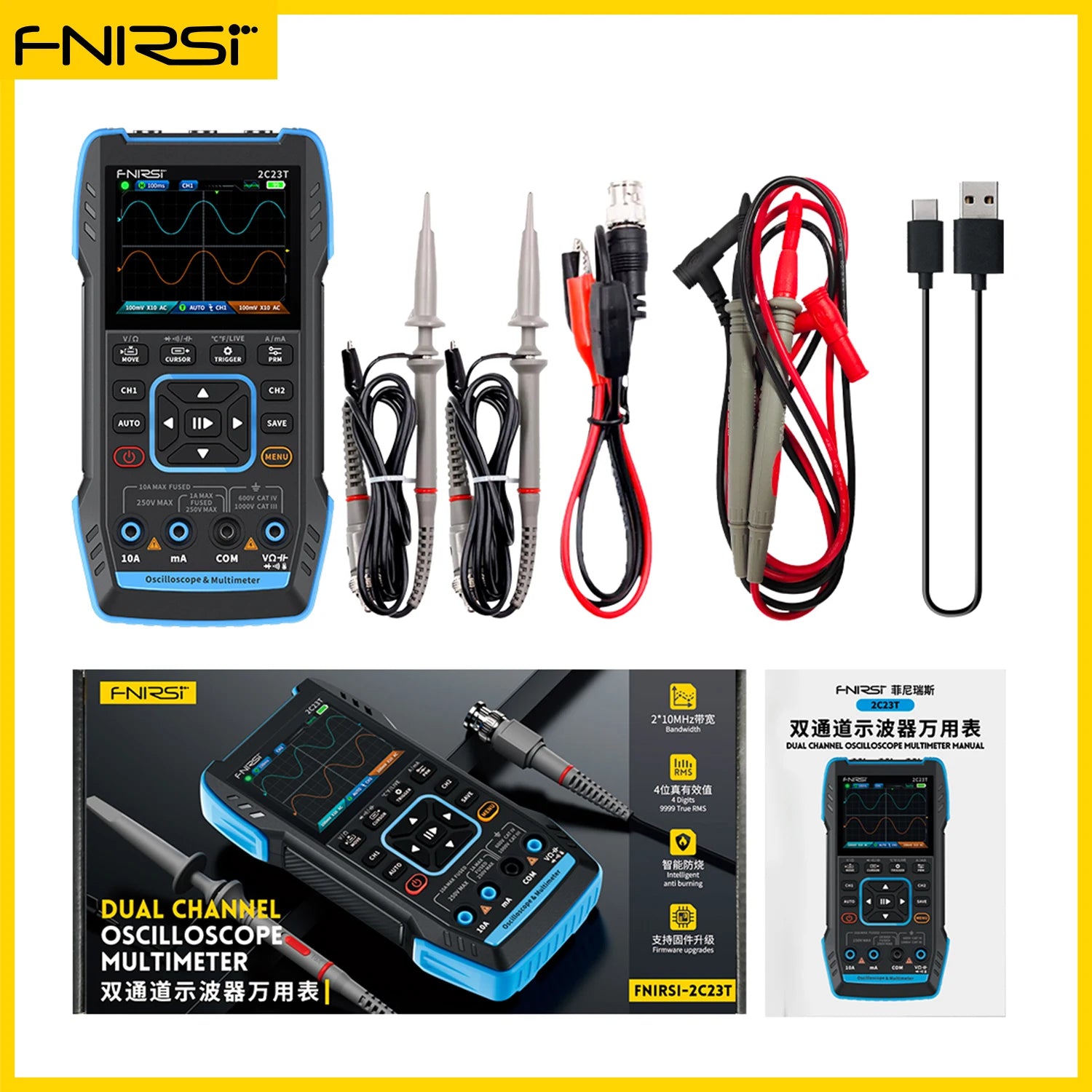

2C23T
2C23T *1
P6100 Probe *1
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1

2C23T Option
2C23T *1
P6100 Probe *2
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1
