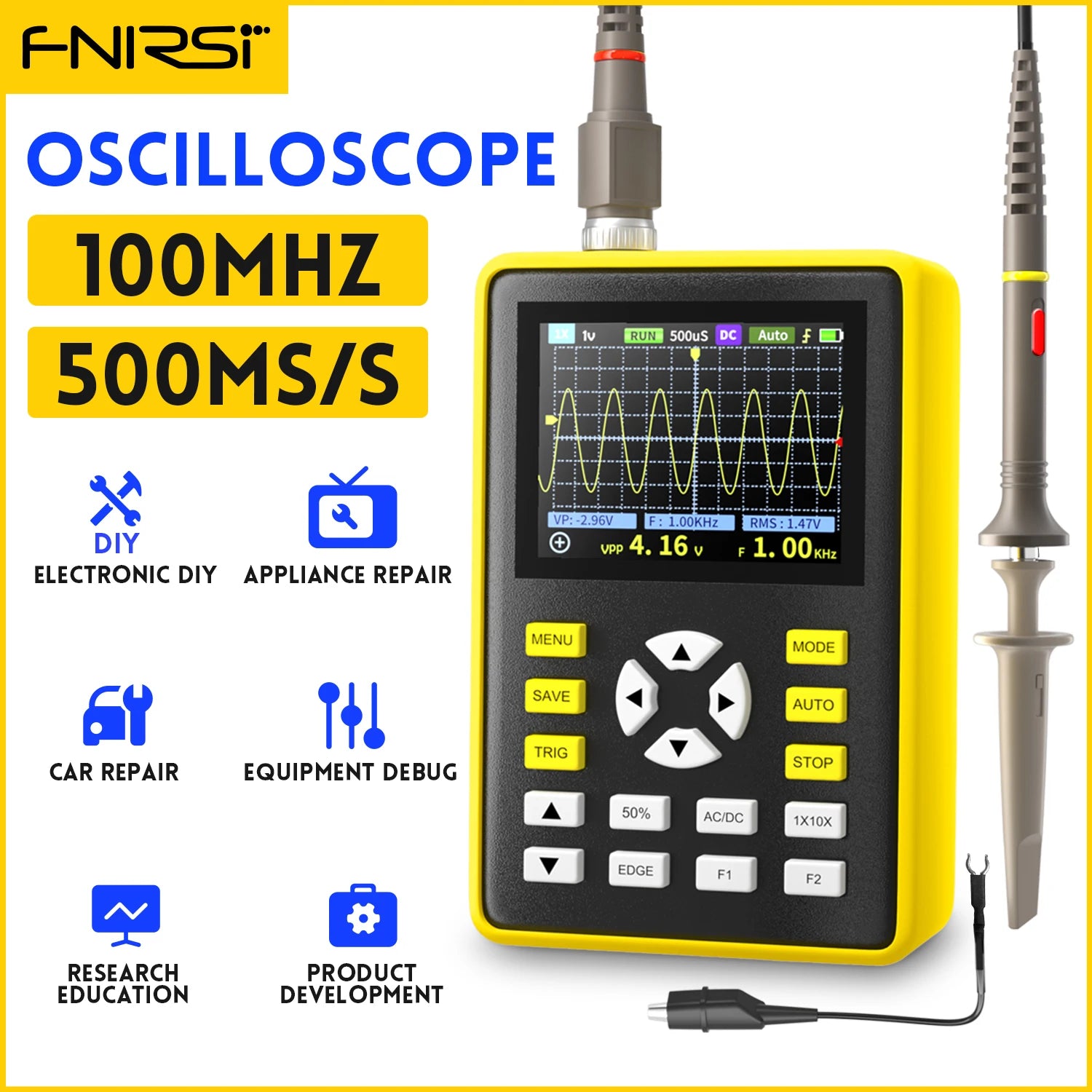

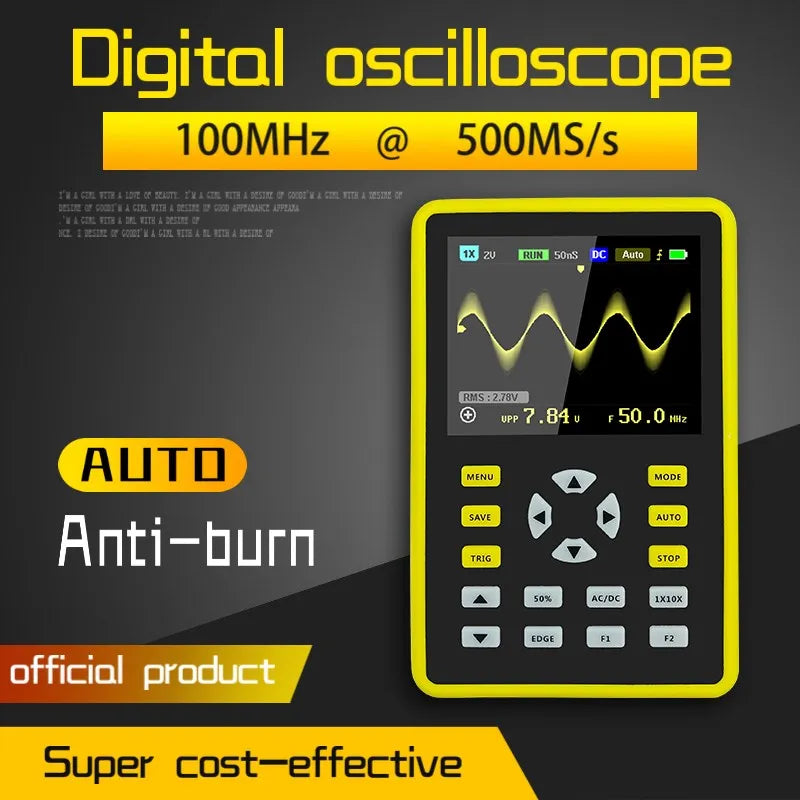

FNIRSI-5012H Handheld Digital Oscilloscope 500MS/s Sampling Rate 100MHz Analog Bandwidth 2.4 Inches Support Waveform Storage

FNIRSI-5012H Handheld Digital Oscilloscope 500MS/s Sampling Rate 100MHz Analog Bandwidth 2.4 Inches Support Waveform Storage

Regular price KSh14,937.00
Regular price KSh15,205.00 Sale price KSh14,937.00
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Brand Name: FNIRSI

FNIRSI Model: FNIRSI-5012H

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 1

Model Number: FNIRSI-5012H

IS Battery Demountable: Yes

Display Size: 2.9 Inches & Under

Certification: CE

Real Time Sampling Rate: Other

Band Width: 100-349MHz

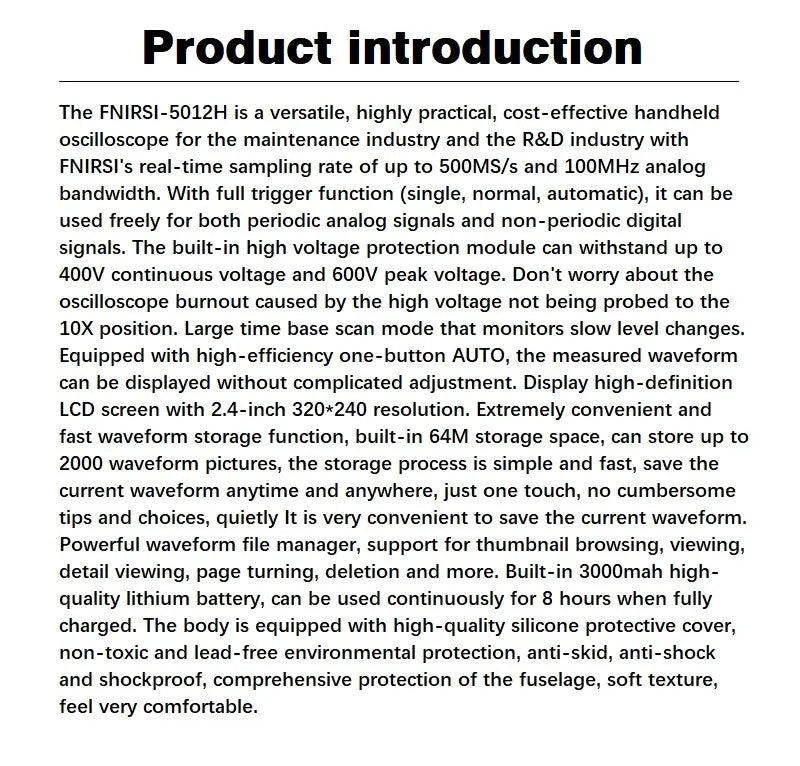

The FNIRSI-5012H is a versatile, highly practical, cost-effective handheld oscillograph for the maintenance industry and the R&D industry with FNIRSI's real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth. With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. Don't worry about the oscillograph burnout caused by the high voltage not being probed to the 10X position. Large time base scan mode that monitors slow level changes. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices, quietly It is very convenient to save the current waveform. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 3000mah high-quality lithium battery, can be used continuously for 8 hours when fully charged. The body is equipped with high-quality silicone protective cover, non-toxic and lead-free environmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable.

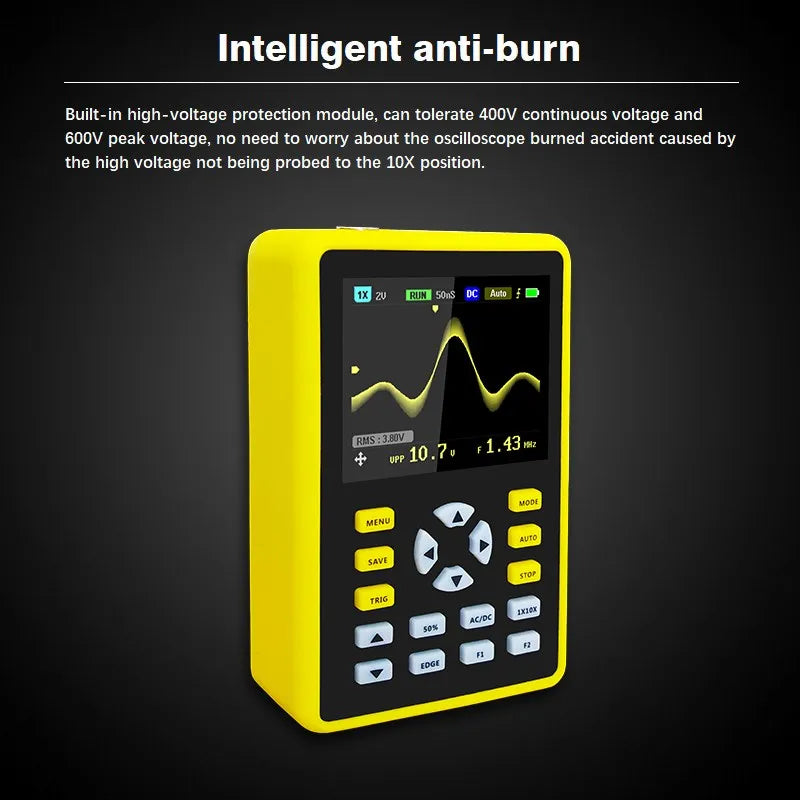

1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage

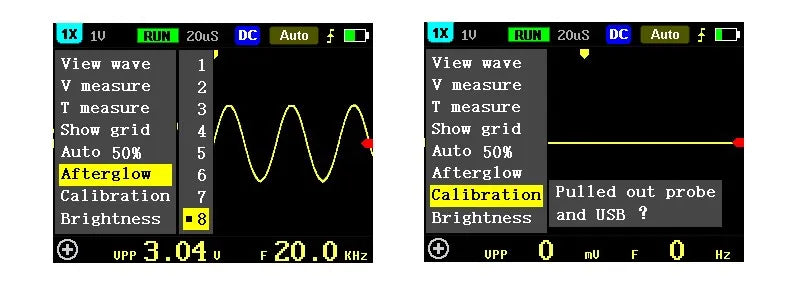

2:Afterglow display technology

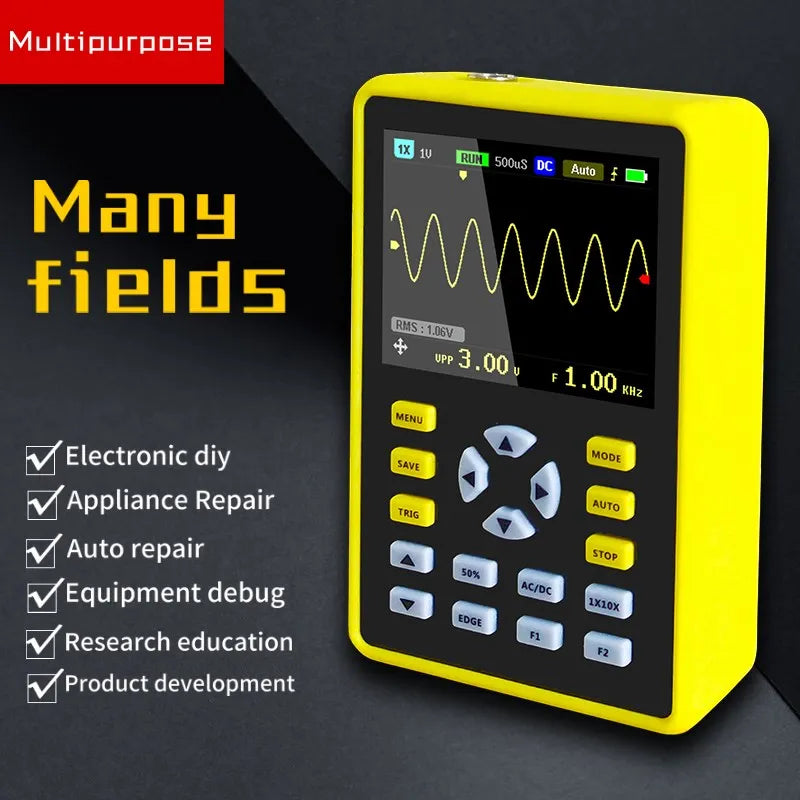

3:2.4 inch color display screen

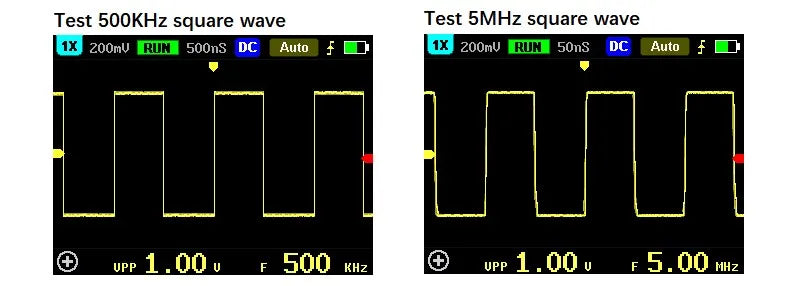

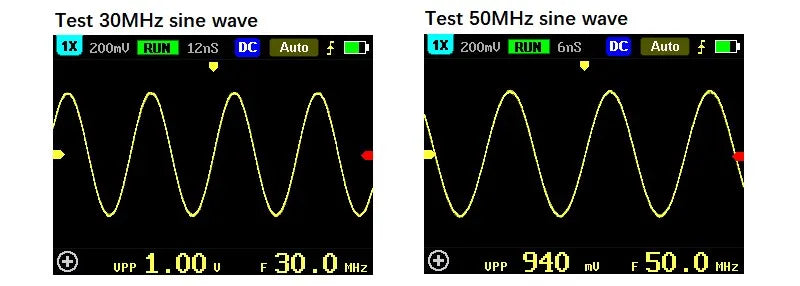

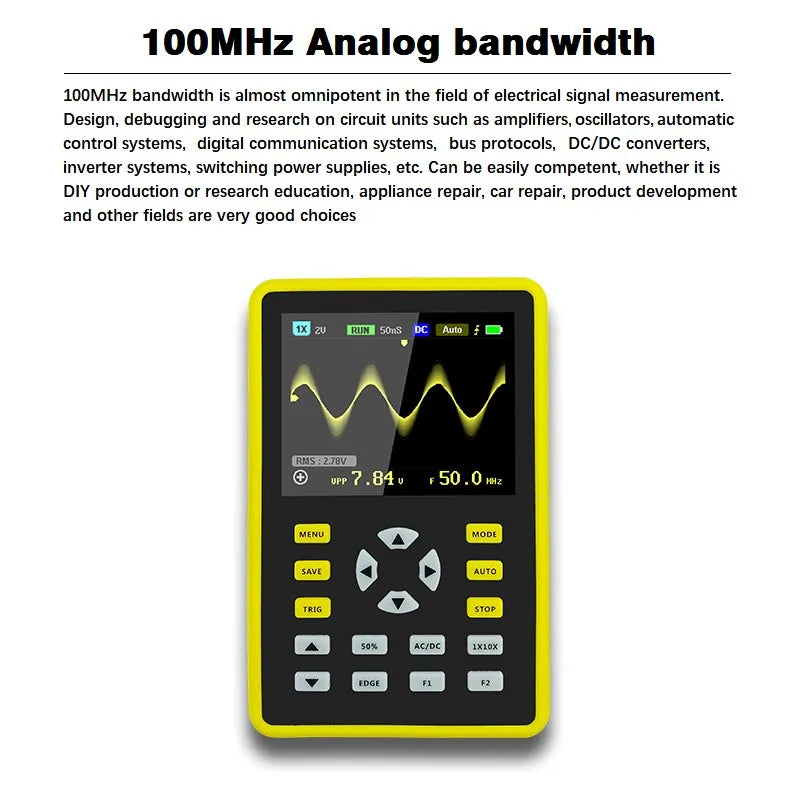

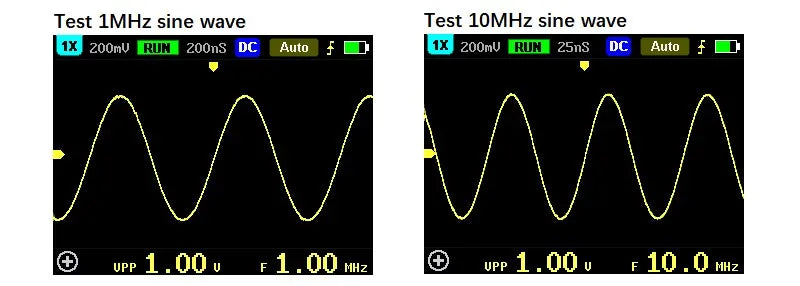

4:100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz)

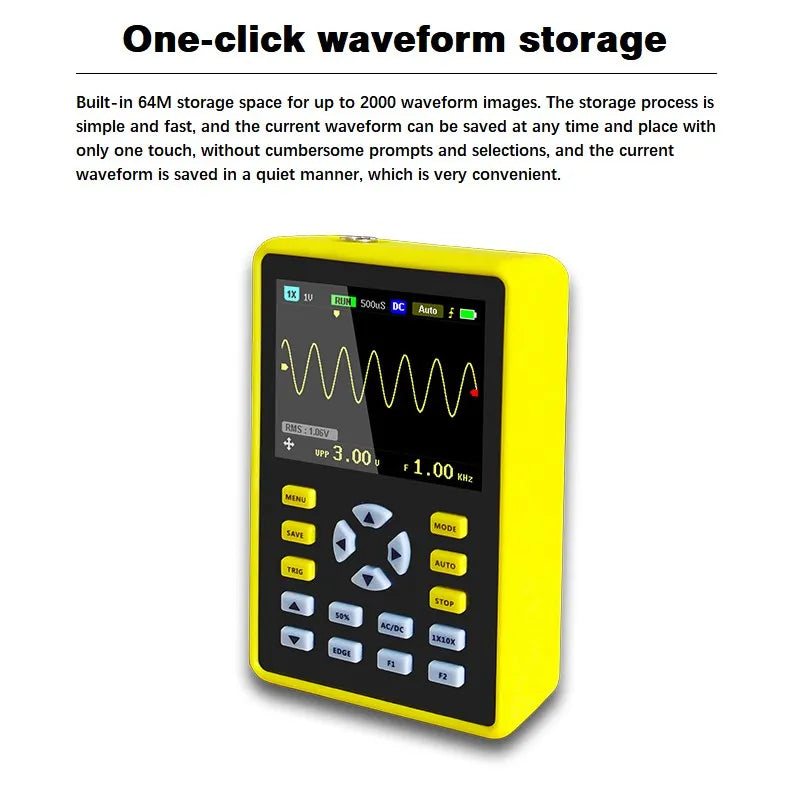

5:One-button waveform storage

6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures

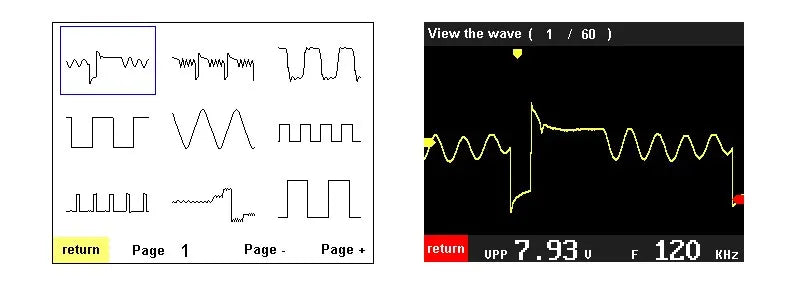

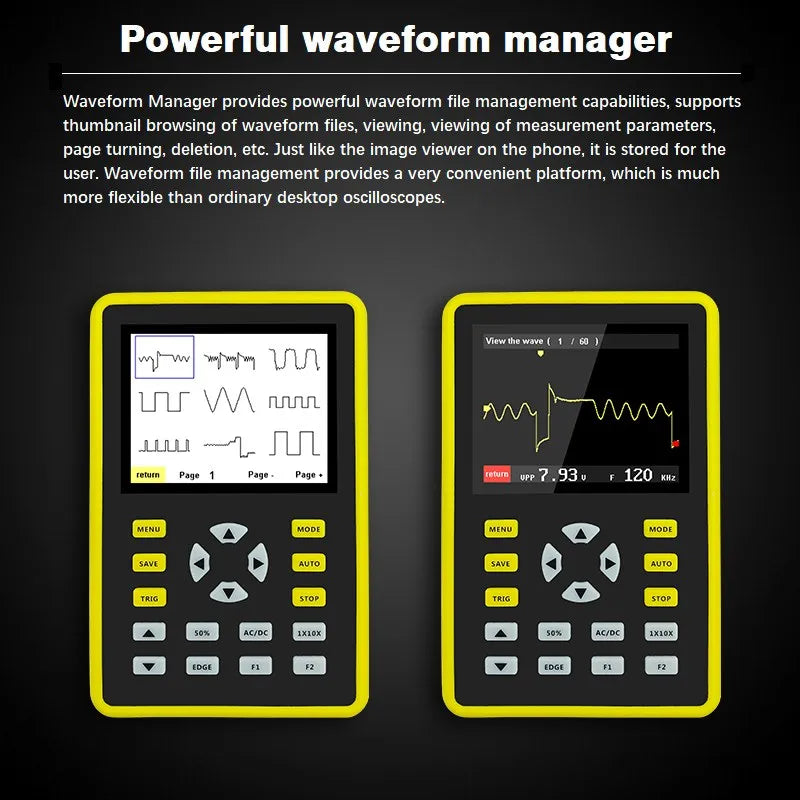

7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V

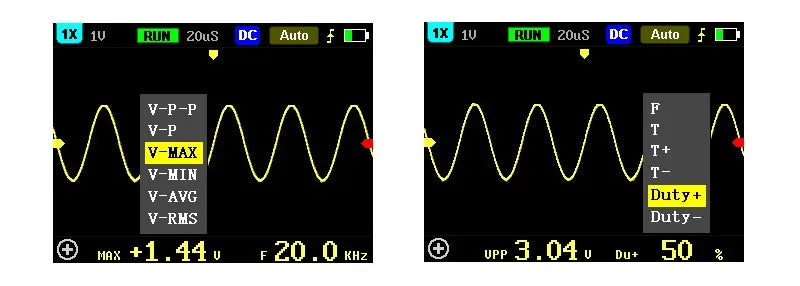

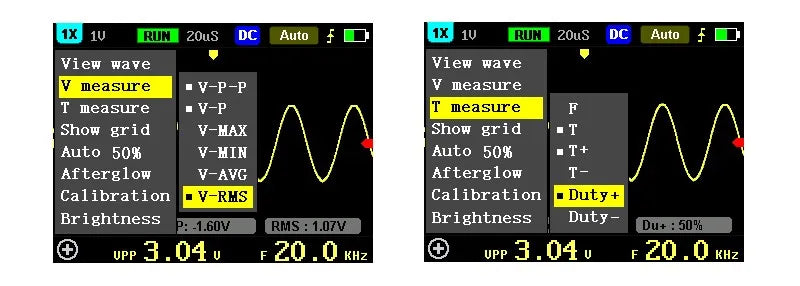

9:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time

10:At any time, the waveform display (pause function) is frozen

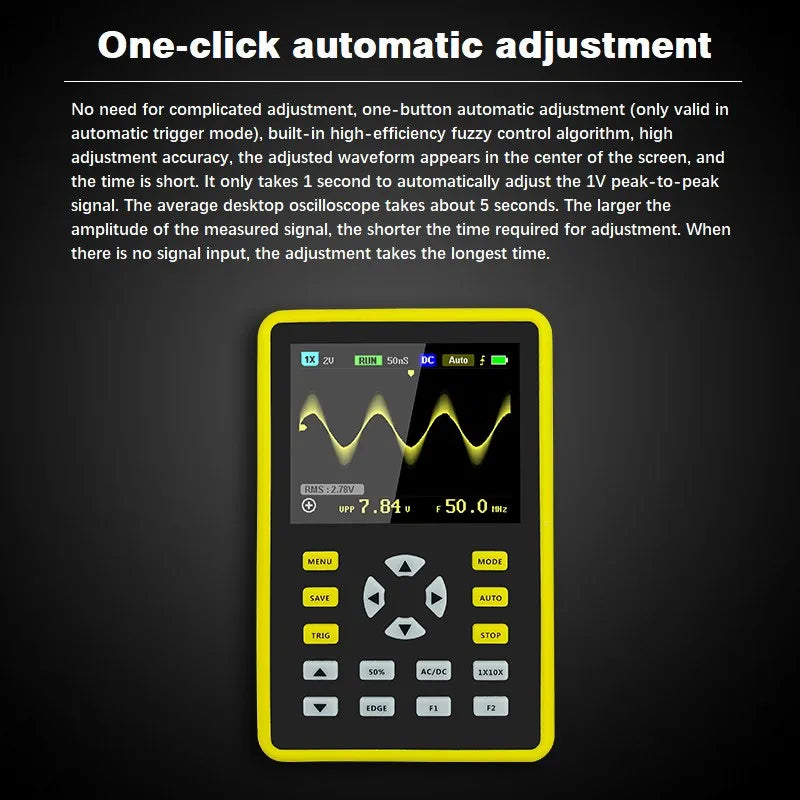

11:Equipped with high efficiency One-button AUTO

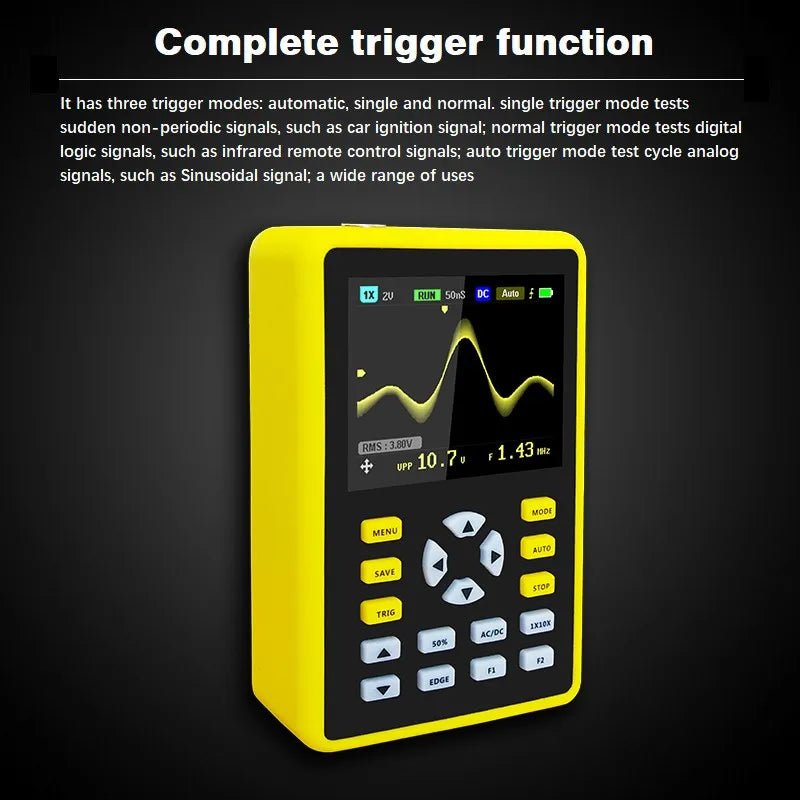

12:Complete triggering function (single, normal, automatic)

13:Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use

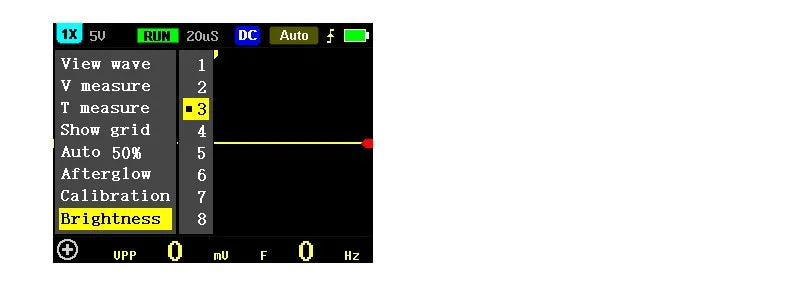

14:Screen brightness adjustment

15:Memory compression technology, waveform refresh screen does not flicker

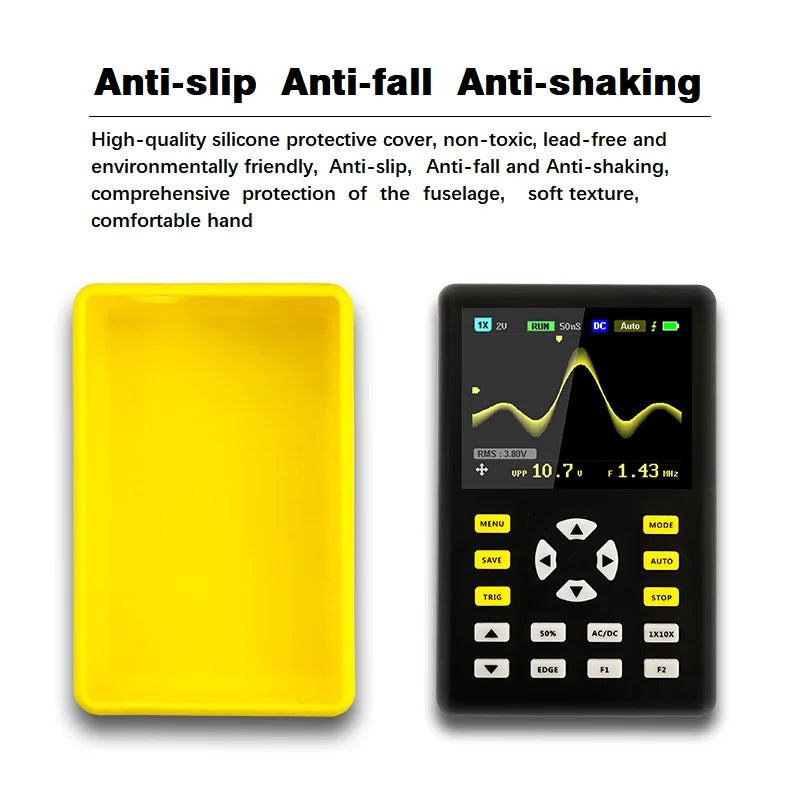

16:Anti-slip anti-drop silicone sleeve

17:Ultra small volume, easy to carry

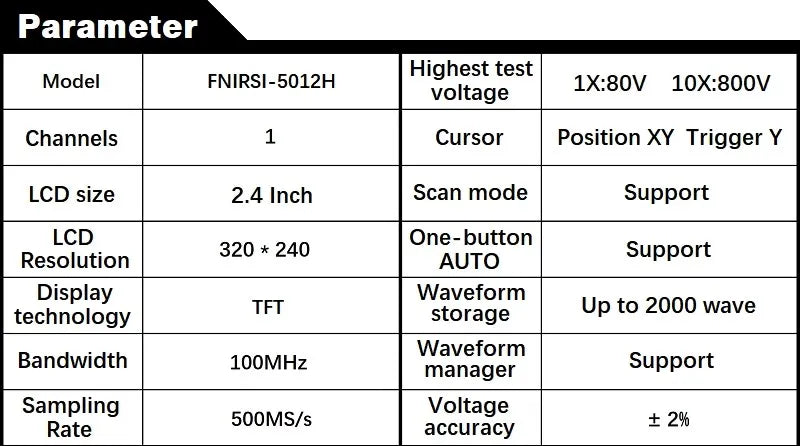

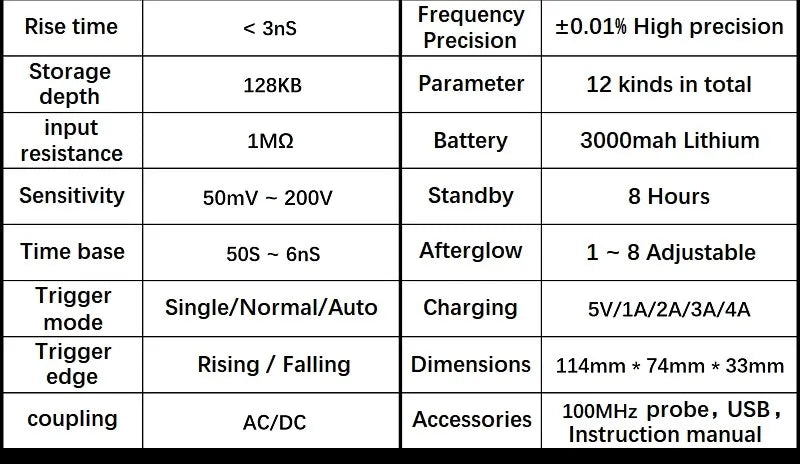

Specifications:

1:Analog band width: 100MHz

2:Maximum real time sampling rate: 500MS/s

3:Vertical sensitivity: 50 mV/div ~ 100 V/div

4:Horizontal time base range: 50S/div ~ 6nS/div

5:Maximum test voltage: 80 V (1X probe), 800 V (10X probe)

6:Storage depth: 128KB

7:Input resistance: 1M

8:ADC precision: 8bits

9:Coupling mode: AC/DC

10:Trigger mode: Single, Normal, Auto

11:Trigger edge: Ascending/descending edge

12:External trigger voltage 0-80 V

13:Display: 2.4 inch - 320*240

14:Power supply: 3000 mAh lithium battery

15:Size: 114mm x 74mm x 33mm

16:Weight: 250g

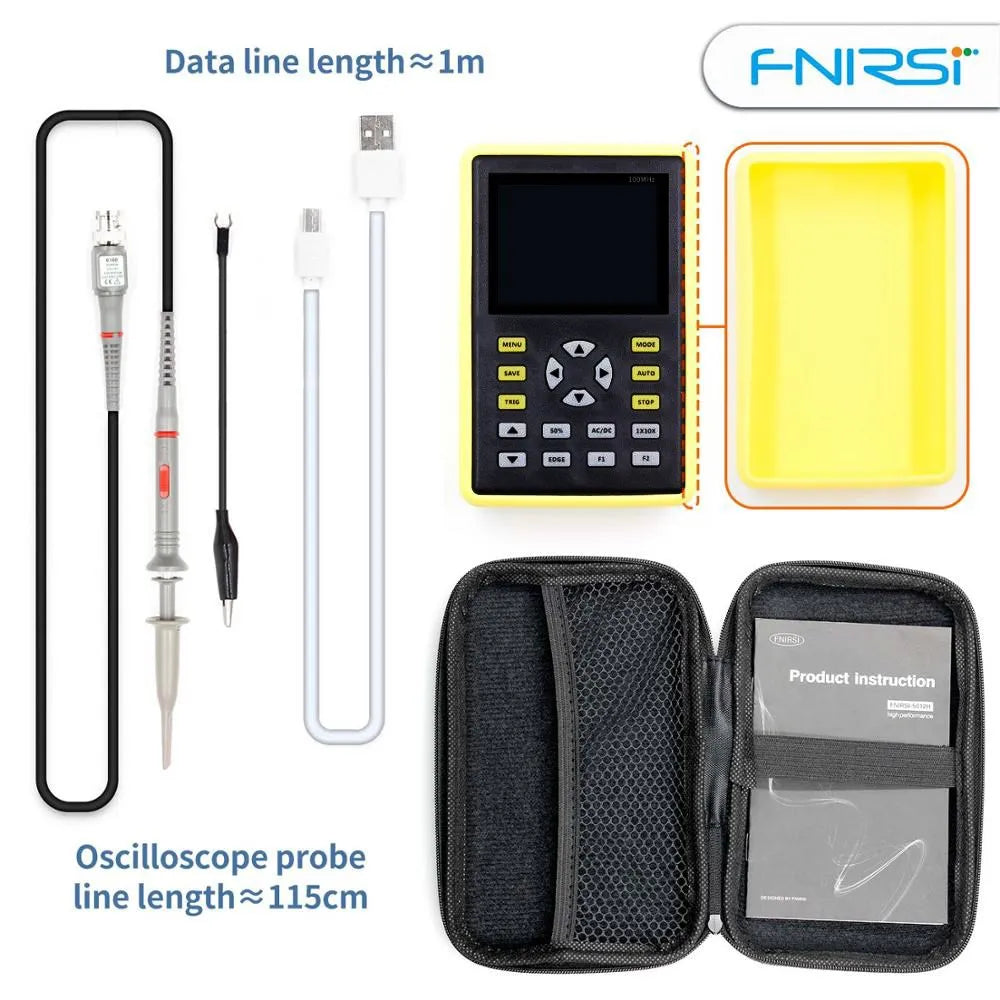

1 x FNIRSI-5012H oscillograph host

1 x Matching 100MHz probe(1X and 10X)

1 x Micro USB data line

1 x User manual (English)

1 x High quality package
