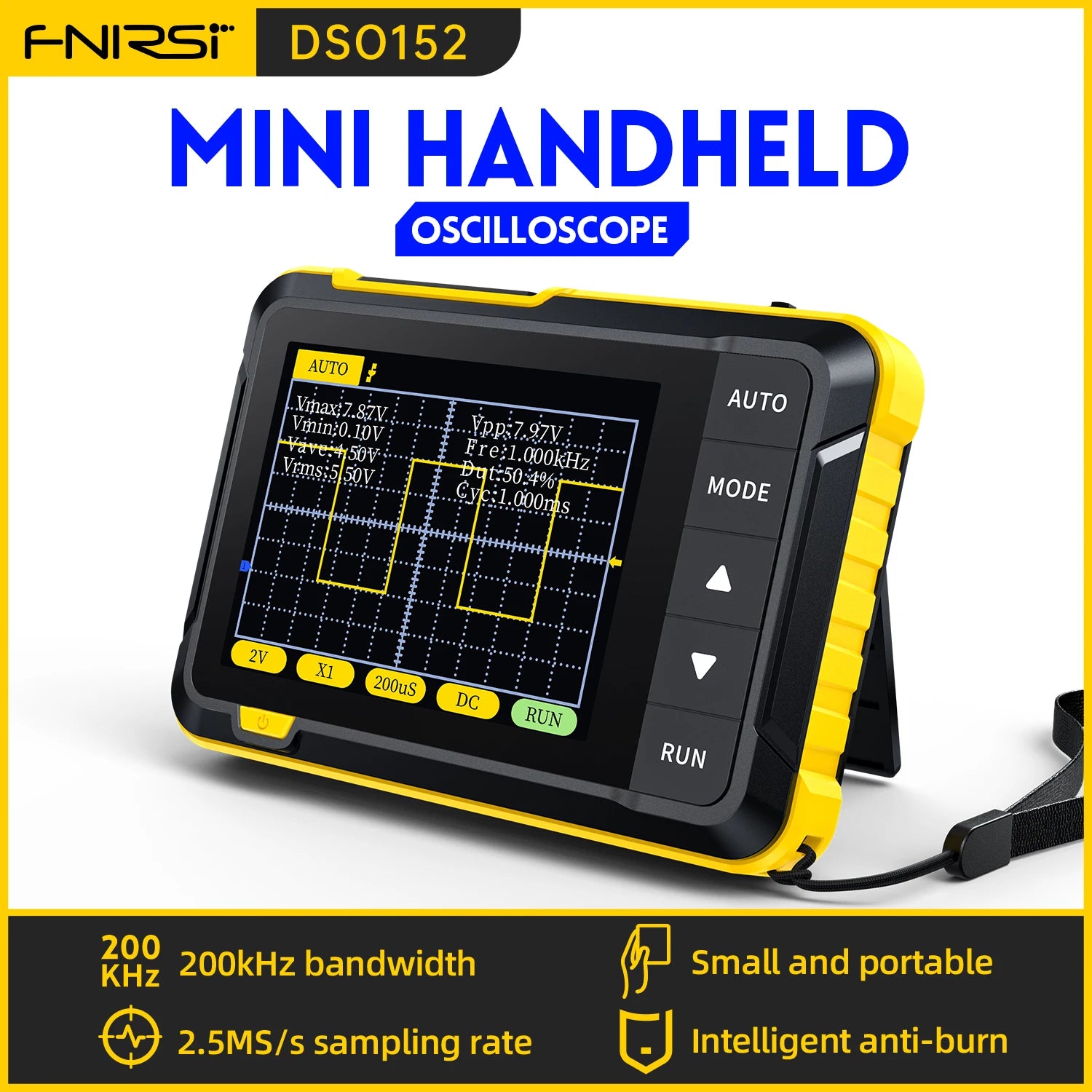

FNIRSI DSO152 DSO153 New Mini Handheld Digital Oscilloscope Portable 2.5MSa/s 200KHz Analog Bandwidth 800 VPP with PWM Output

FNIRSI DSO152 DSO153 New Mini Handheld Digital Oscilloscope Portable 2.5MSa/s 200KHz Analog Bandwidth 800 VPP with PWM Output

Regular price KSh7,847.30
Regular price KSh6,146.00 Sale price KSh7,847.30
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

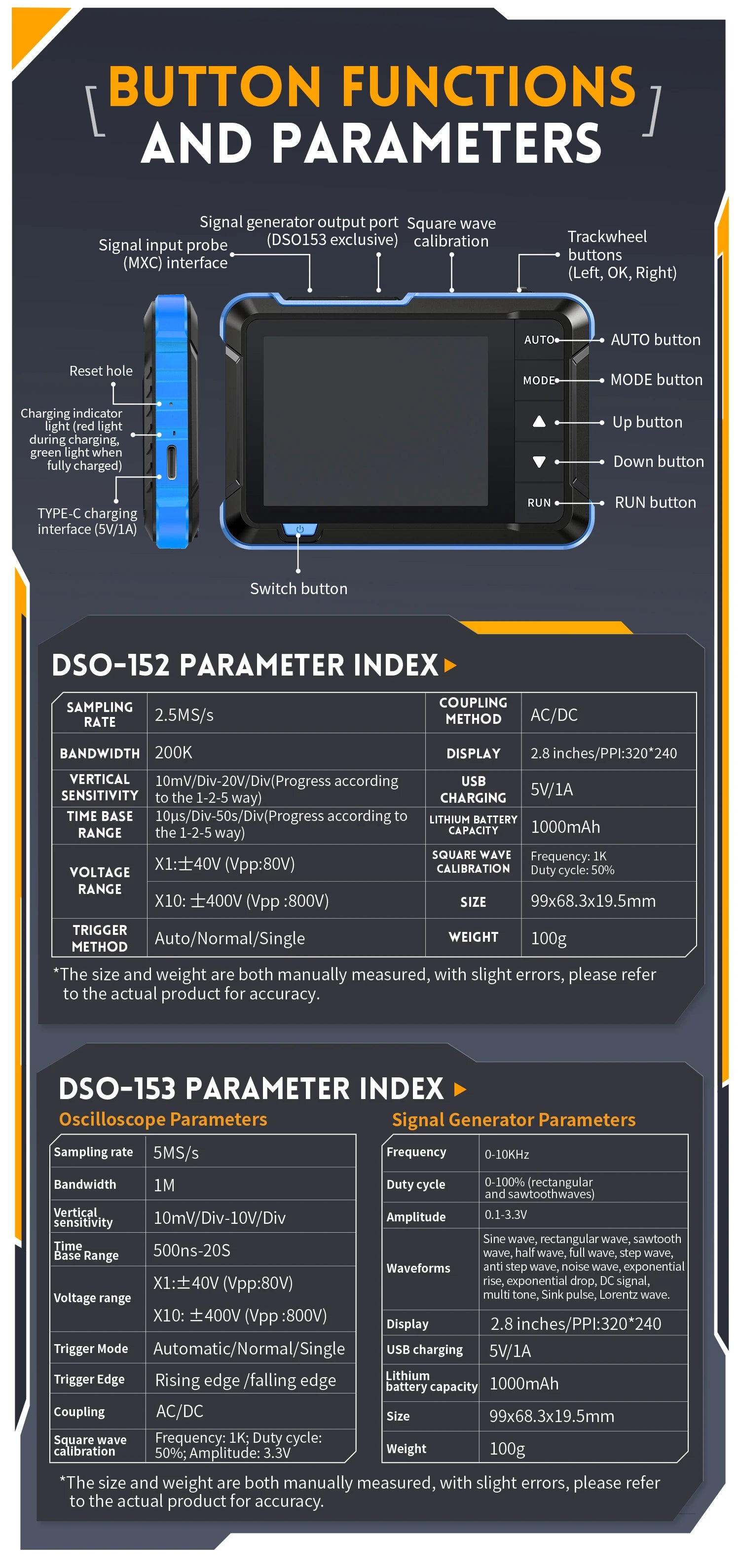

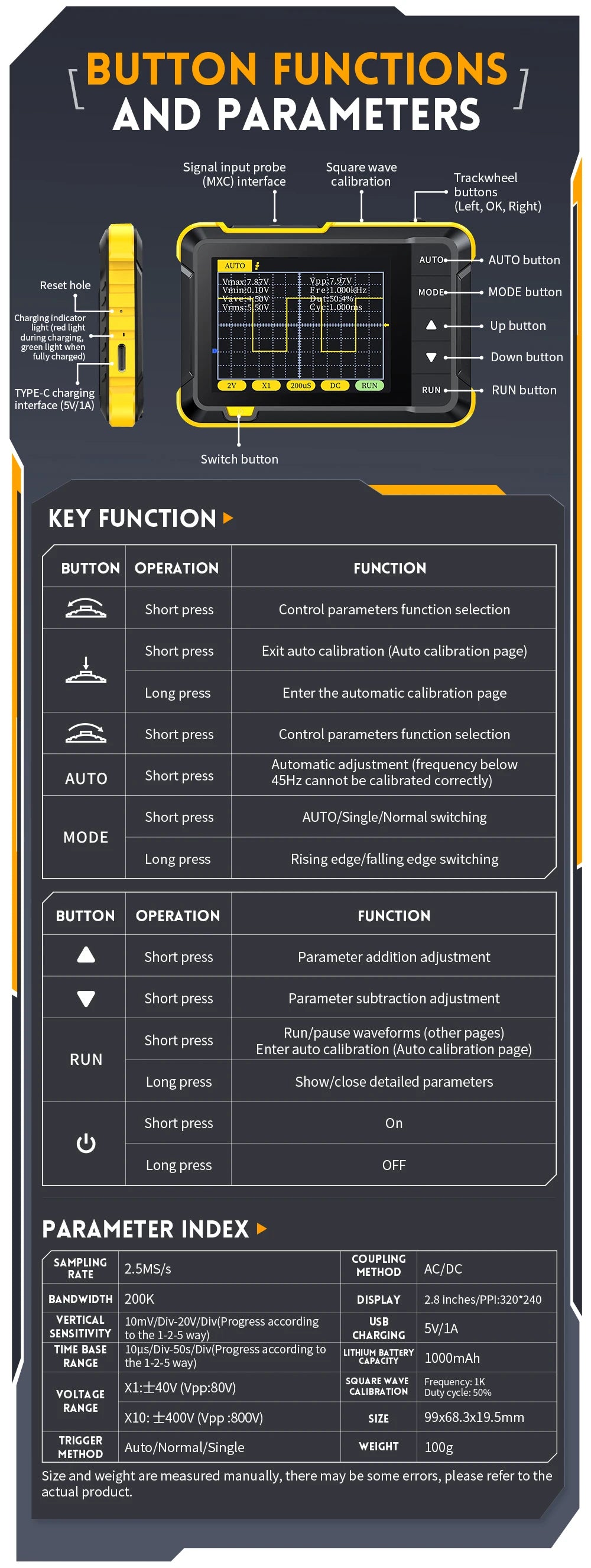

SPECIFICATIONS

Brand Name: FNIRSI

FNIRSI Model: DSO152

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 1

Model Number: DSO152

Display Size: None

Certification: CE

Real Time Sampling Rate: 2.5MSa/s

Band Width: 200KHz

Vertical sensitivity: 10mV/Div-20V/Div(Progress according to the 1-2-5 way)

Time base range: 10μs/Div-50s/Div(Progress according to the 1-2-5 way)

Voltage range: 1X 400VPP 10X 800VPP

Trigger method: Auto/Normal/Single

Coupling method: AC/DC

Display: 2.8 inches/PPI:320*240

USB charging: 5V/1A

Lithium battery capacity: 1000mAh

Square wave calibration: Frequency: 1K Duty cycle: 50%

Size: 99mmx68.3mmx19.5mm

Weight: 100g

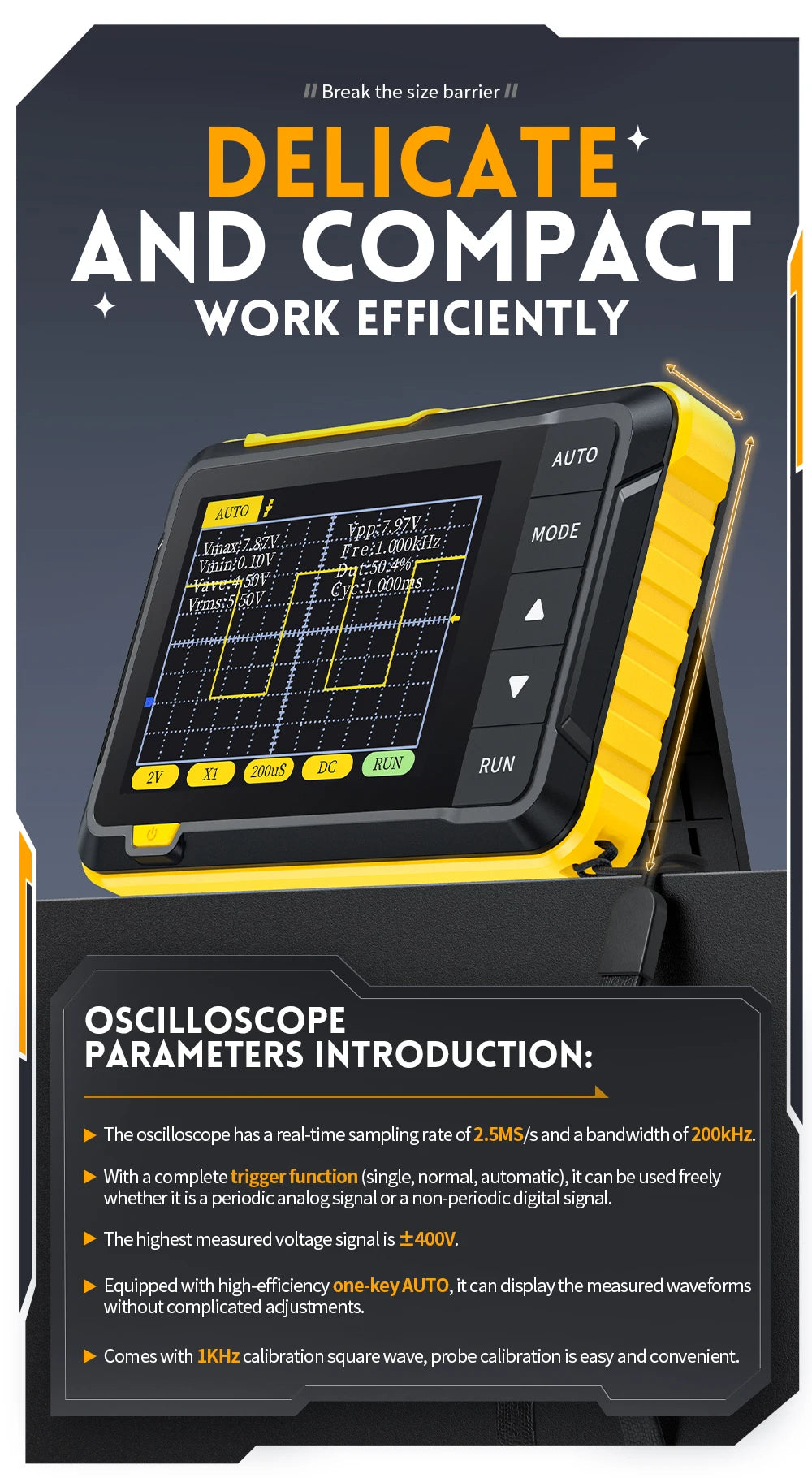

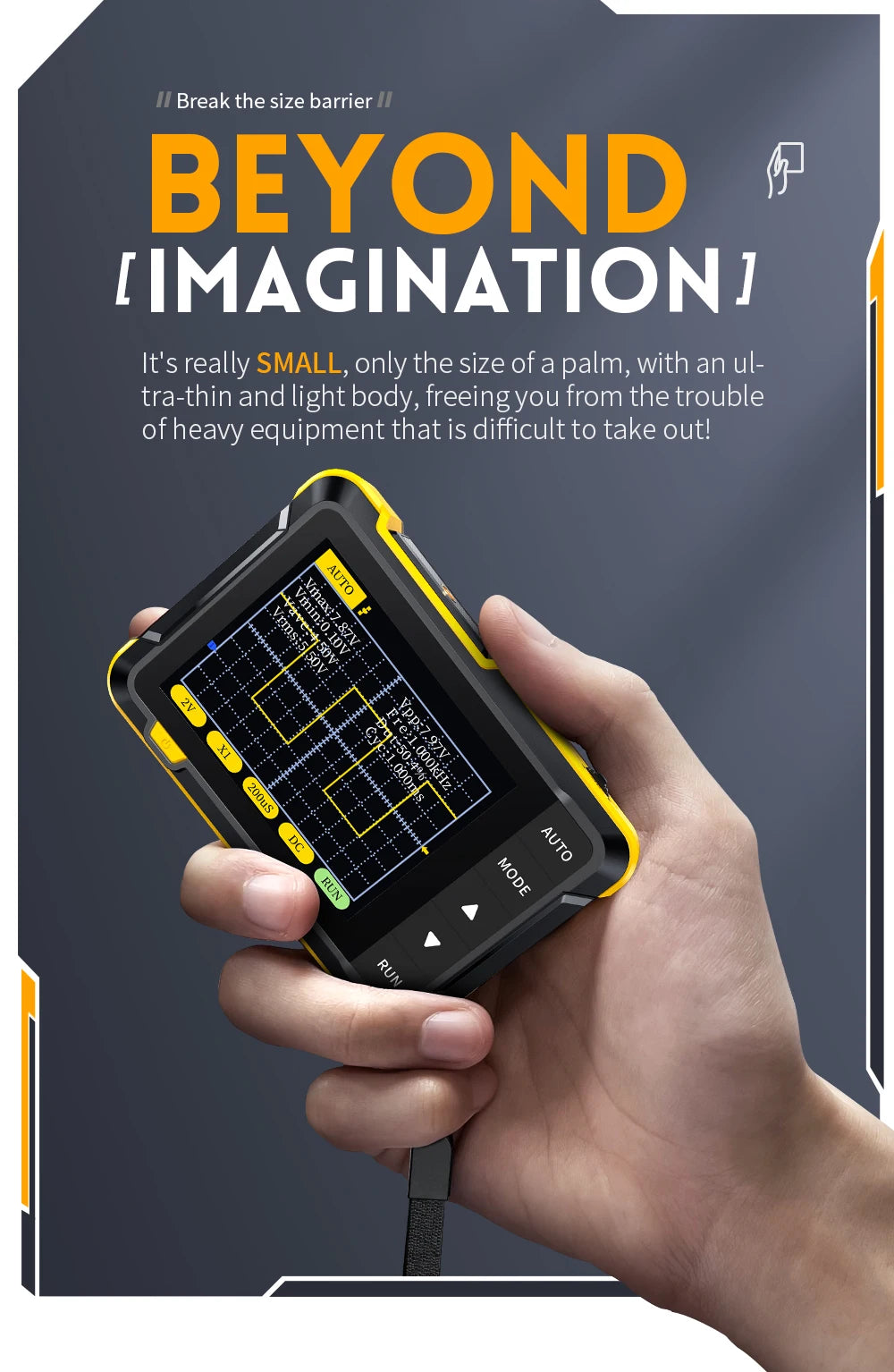

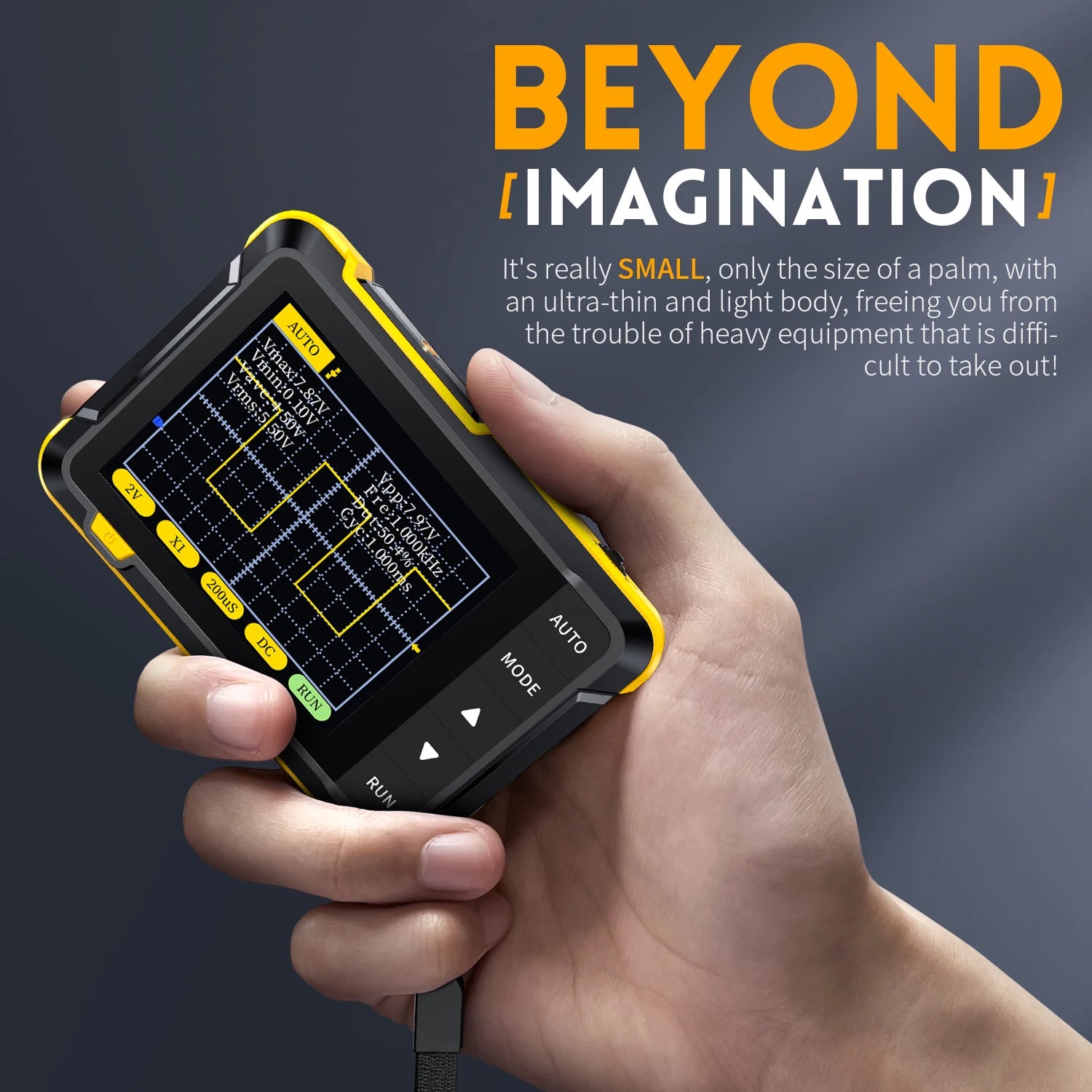

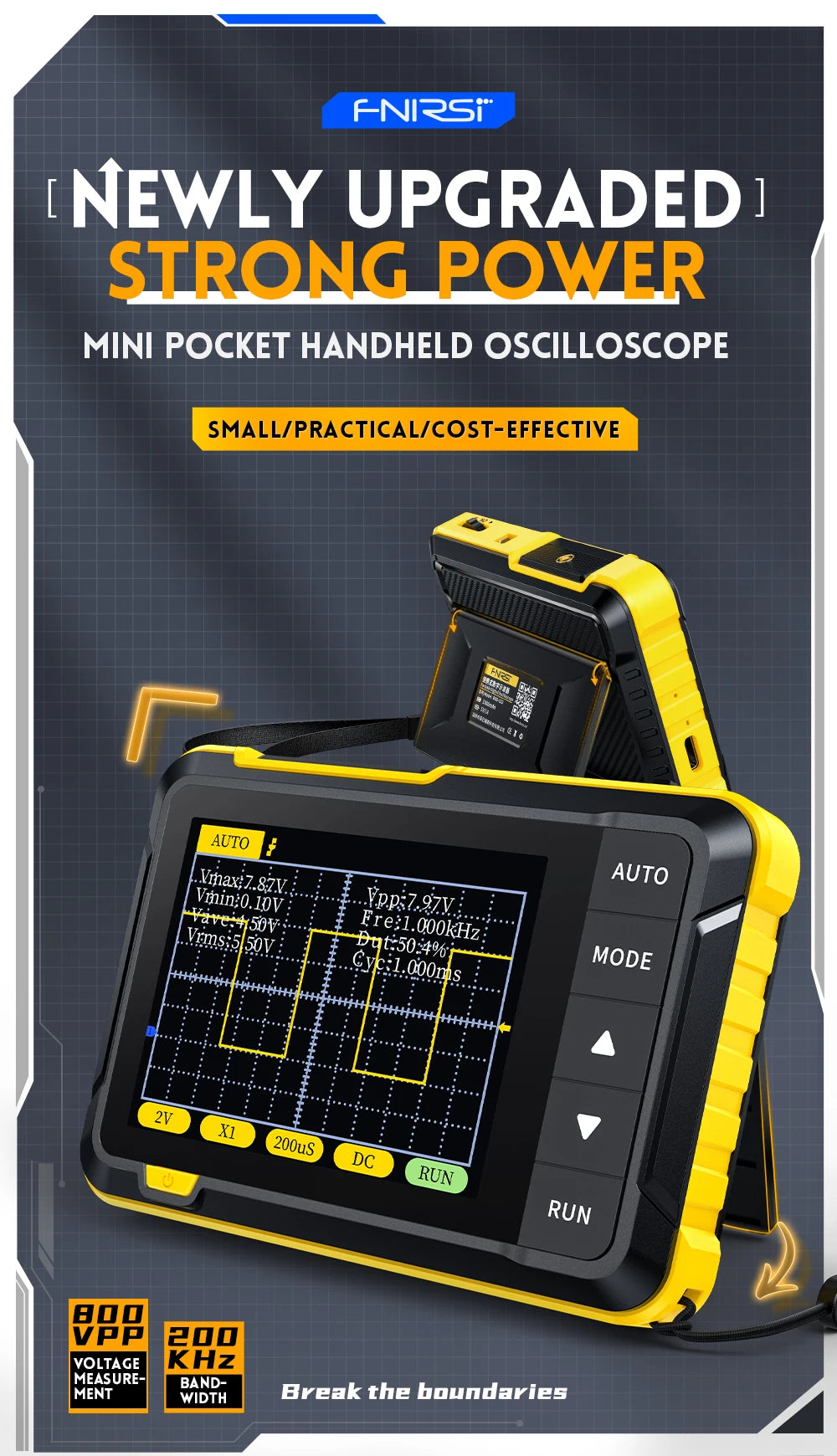

"DSO152" is a highly practical and cost-effective handheld oscilloscope launched by our company, which is aimed at the maintenance industry and the research education industry.
The oscilloscope has a real-time sampling rate of 2.5MS/s, abandwidth of 200KHz, and complete trigger functions (single, normal, and automatic).

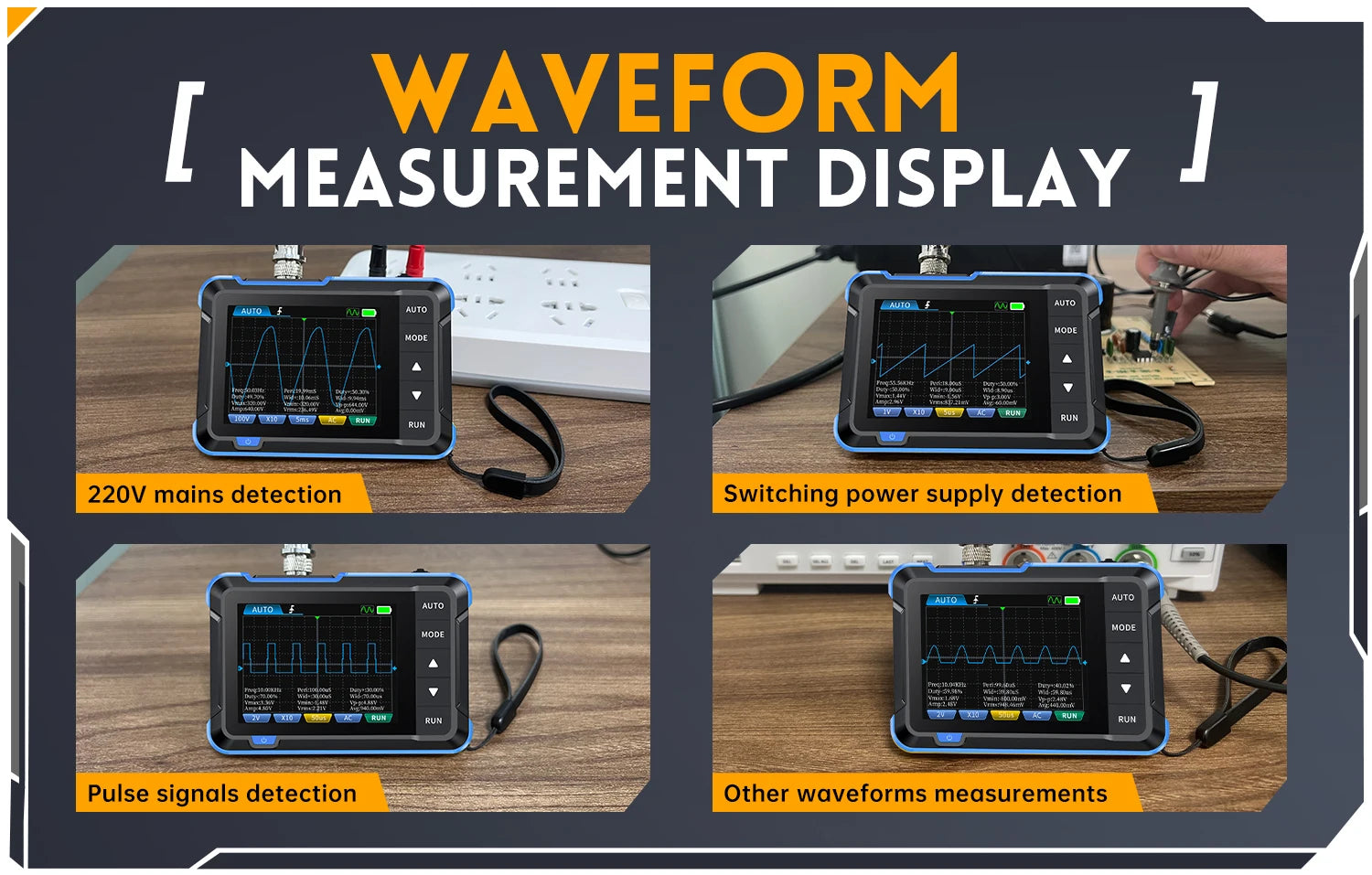

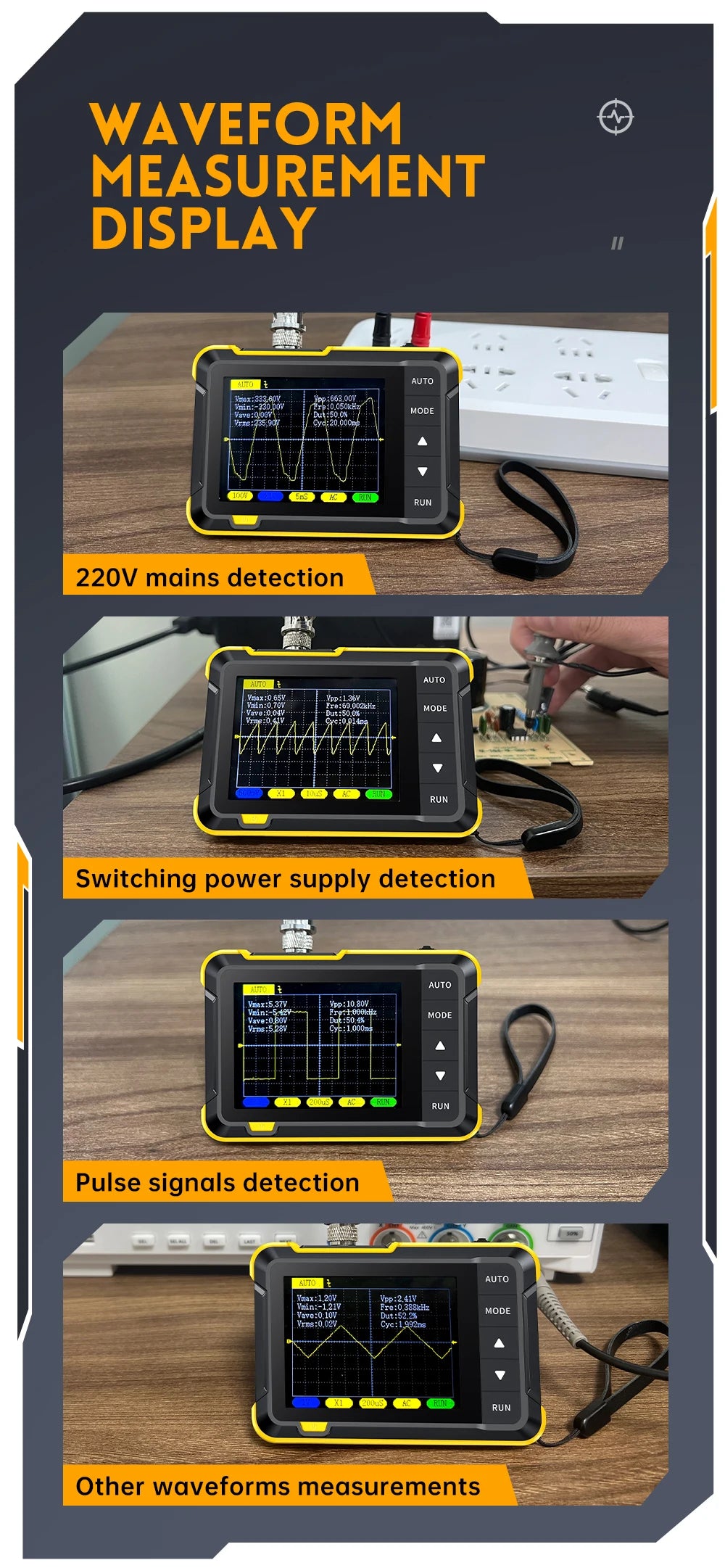

It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure voltages up to ±400V.
Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments.
Equipped with a 2.8-inch 320*240 resolution high-definition LCD screen.

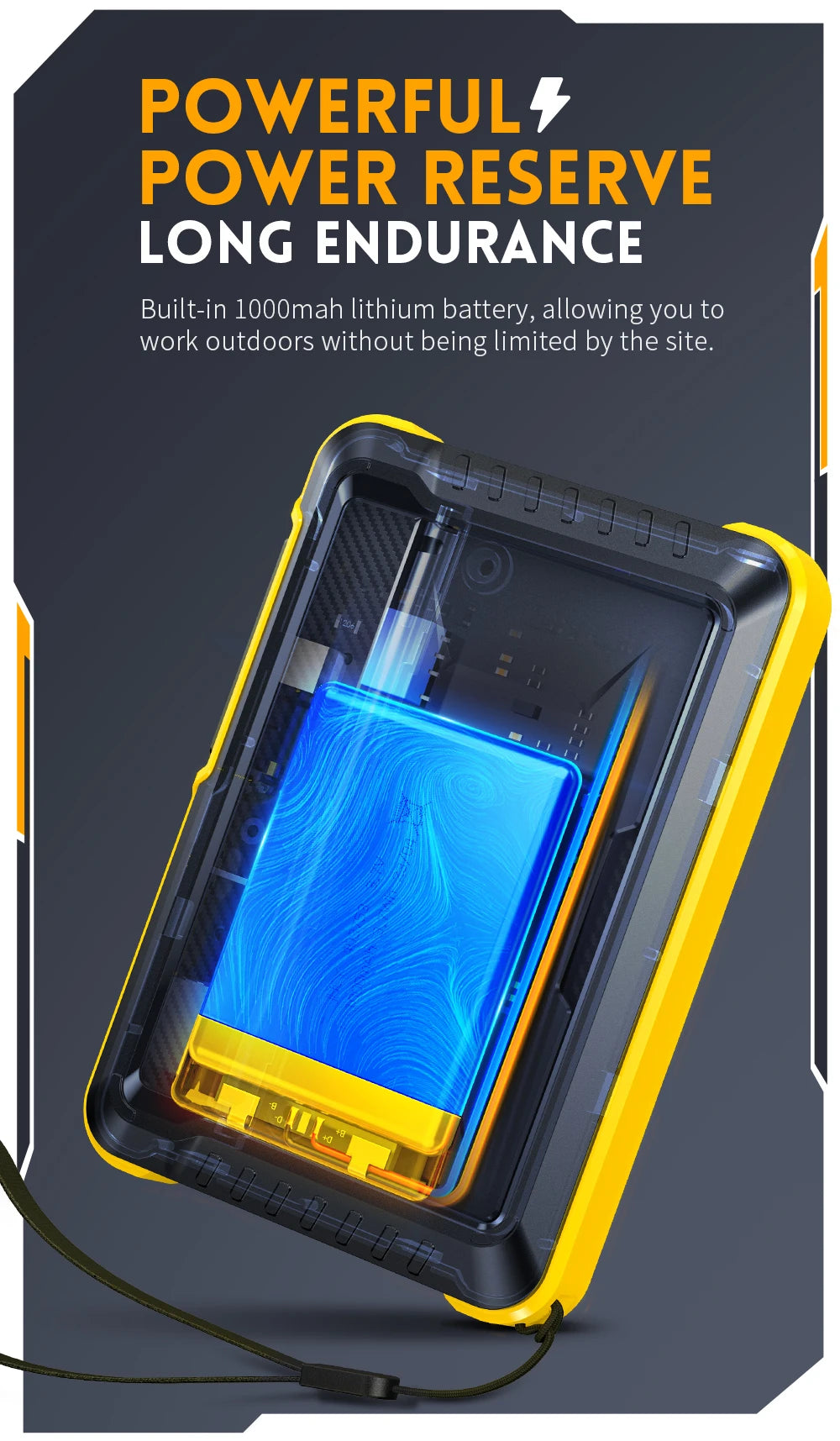

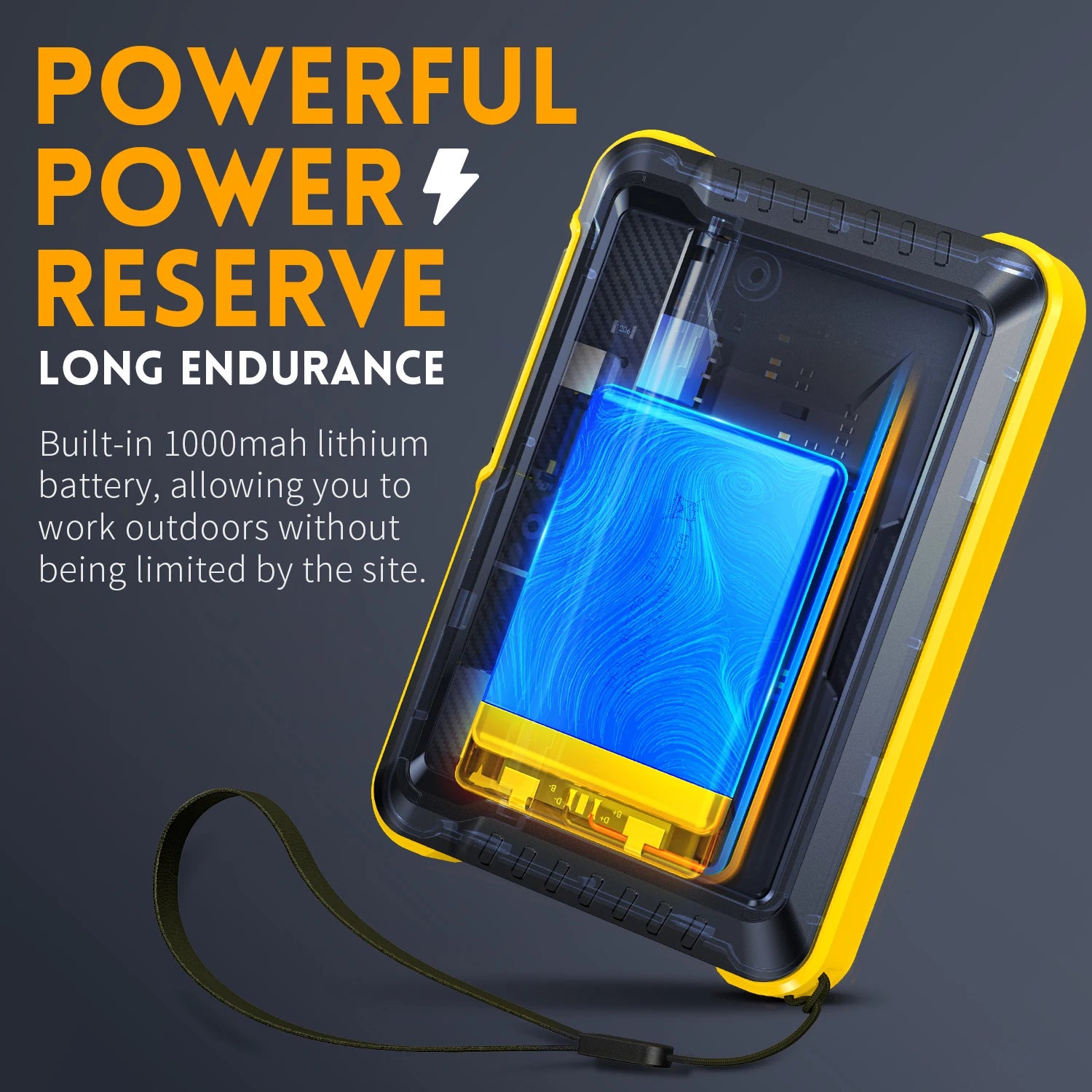

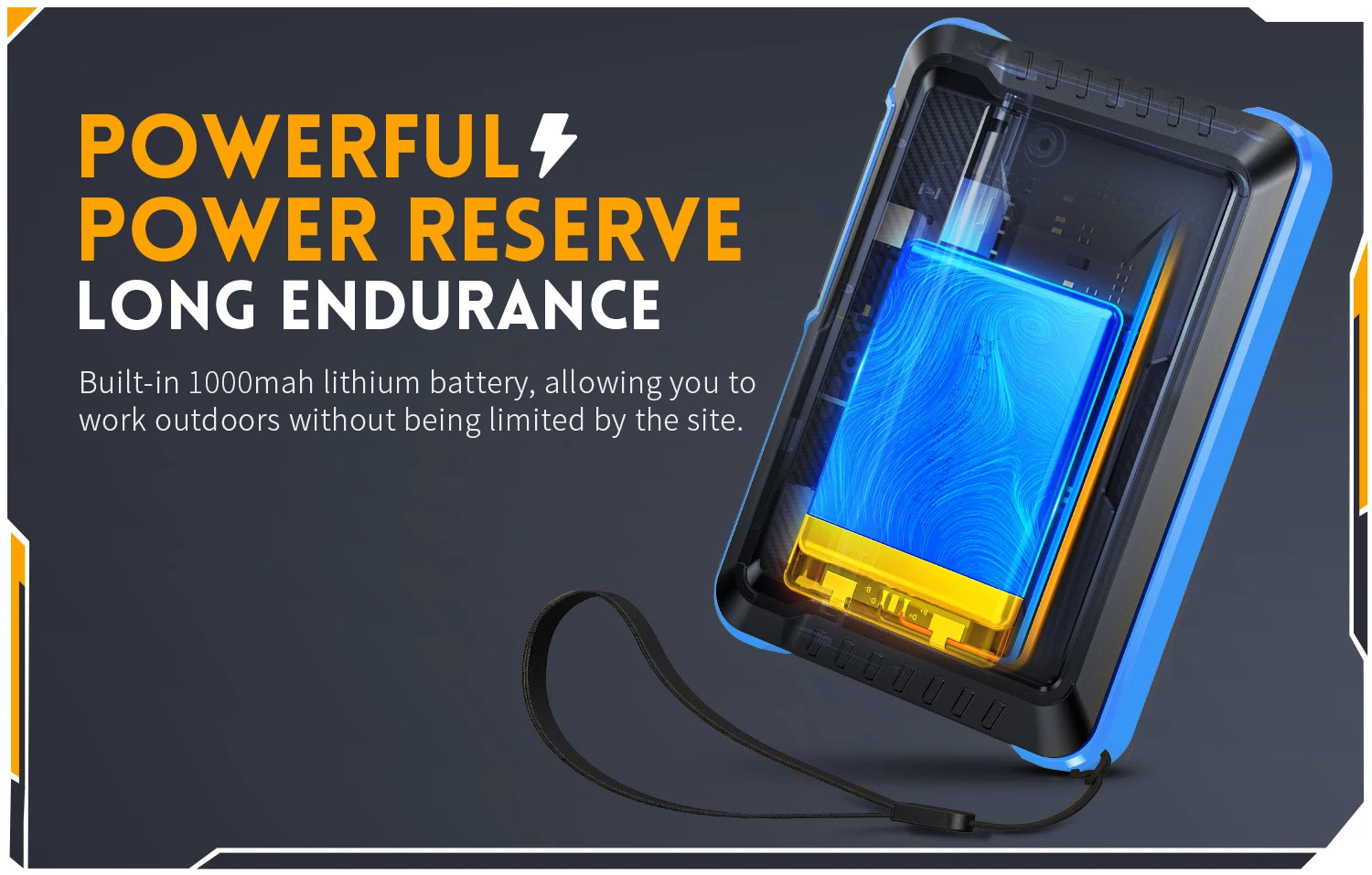

Built-in 1000mAh high-quality lithium battery, can be used continuously for about 4 hours after fully charged.

Sampling rate:2.5MS/s
Bandwidth:200K
Vertical sensitivity:10mV/Div-20V/Div(Progress according to the 1-2-5 way)
Time base range:10μs/Div-50s/Div(Progress according to the 1-2-5 way)
Voltage range:X1:40V (Vpp:80V) X10: 400V (Vpp :800V)
Trigger method:Auto/Normal/Single
Coupling method:AC/DC
Display:2.8 inches/PPI:320*240
USB charging:5V/1A
Lithium battery capacity:1000mAh
Square wave calibration:Frequency: 1K Duty cycle: 50%
Size:99x68.3x19.5mm
Weight:100g

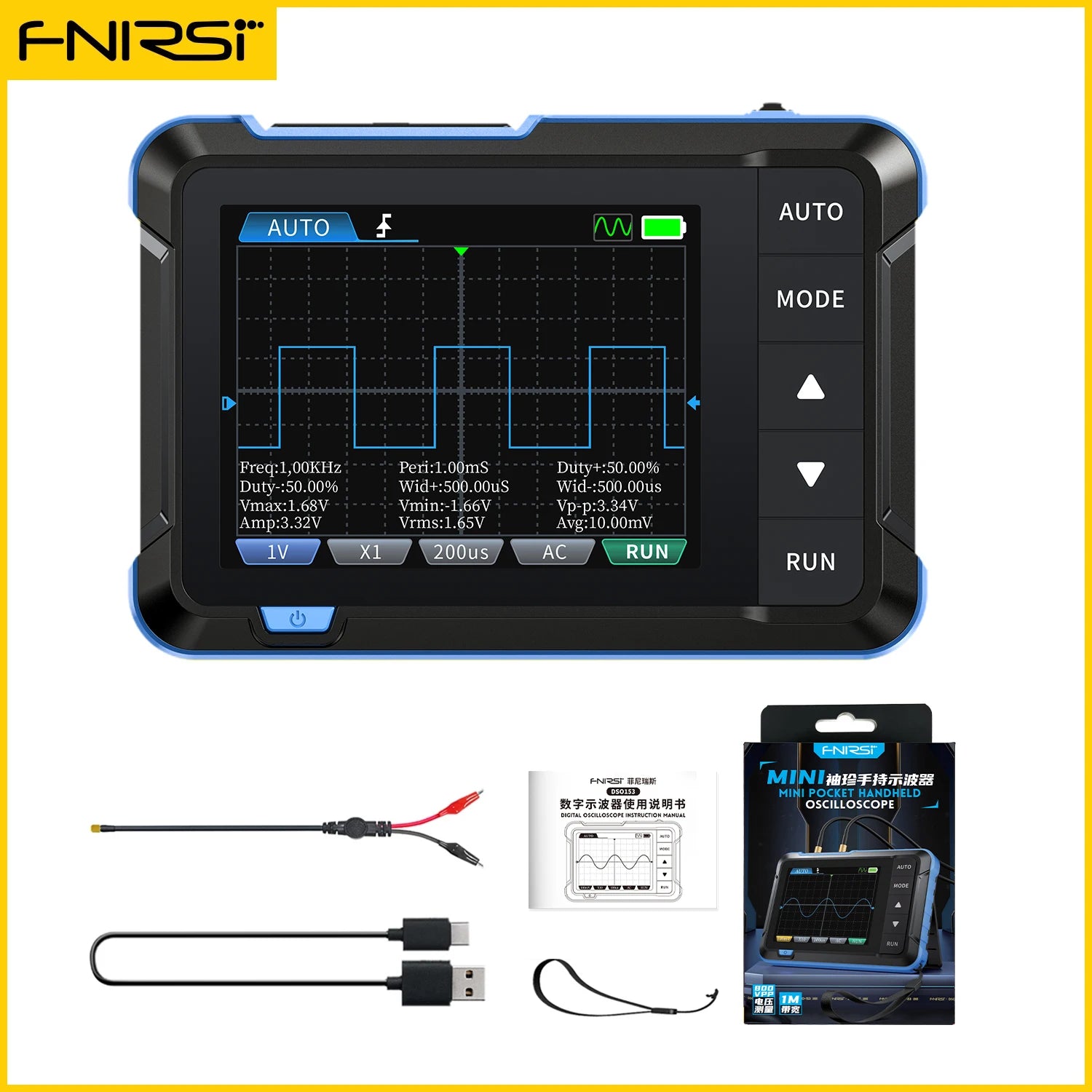

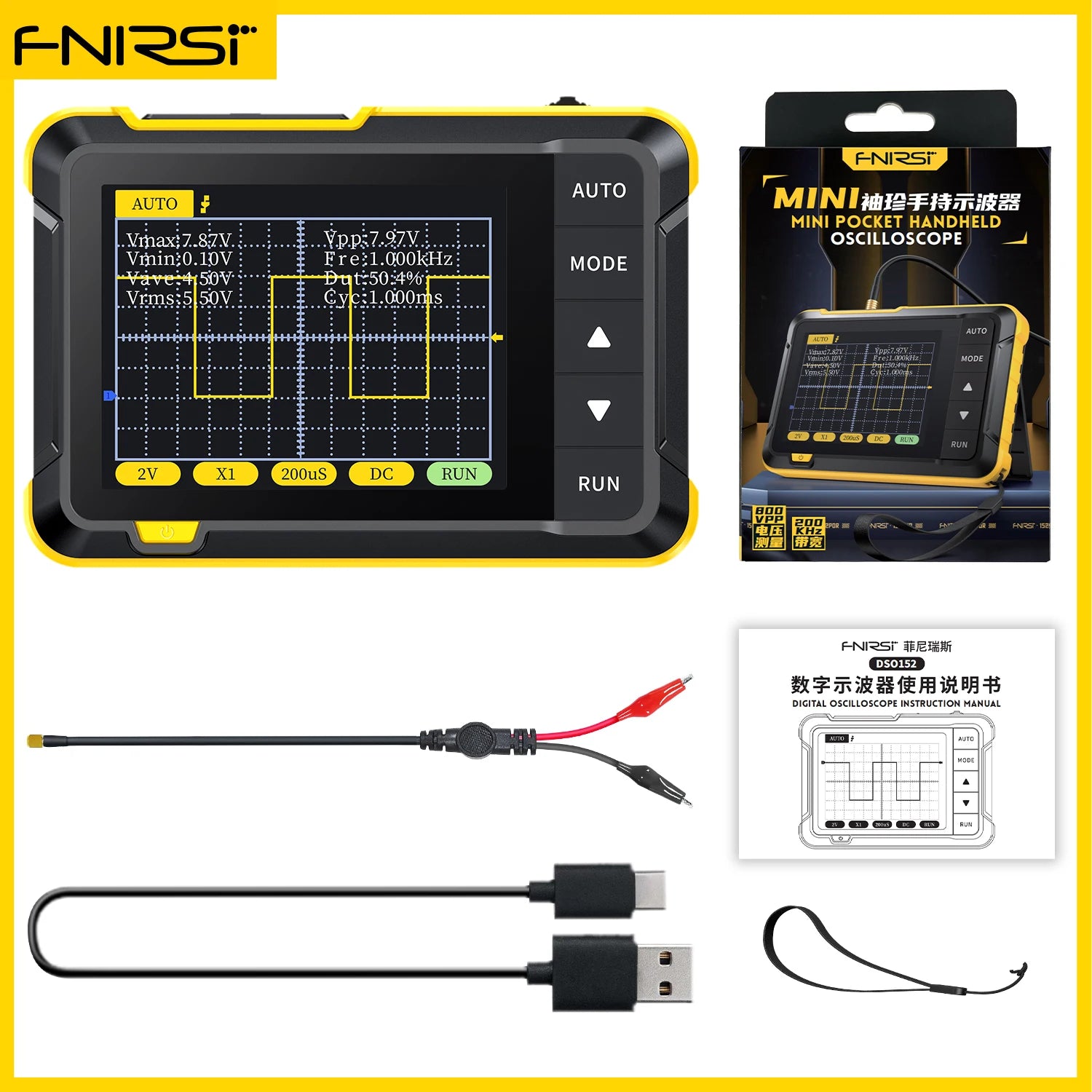

DSO152

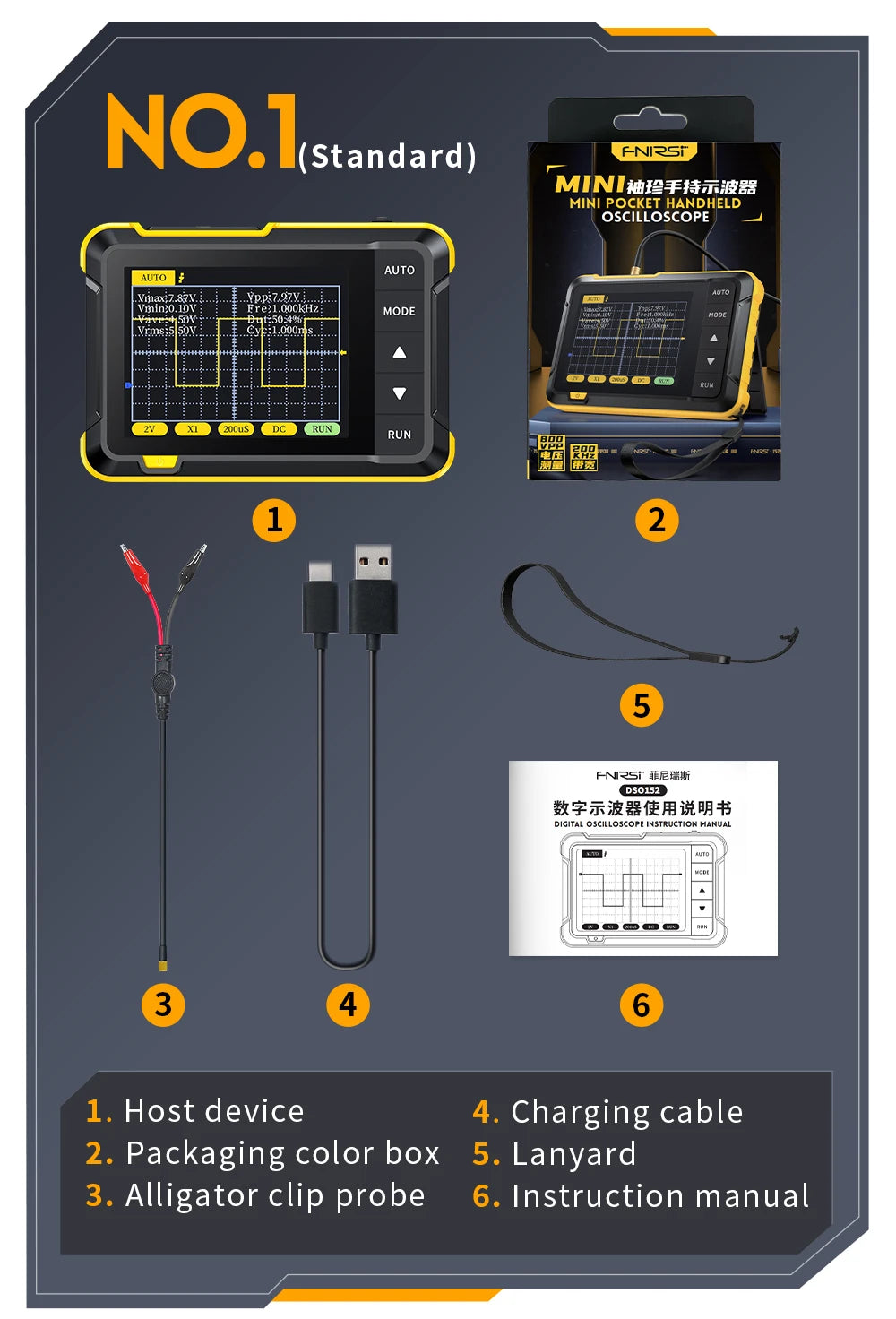

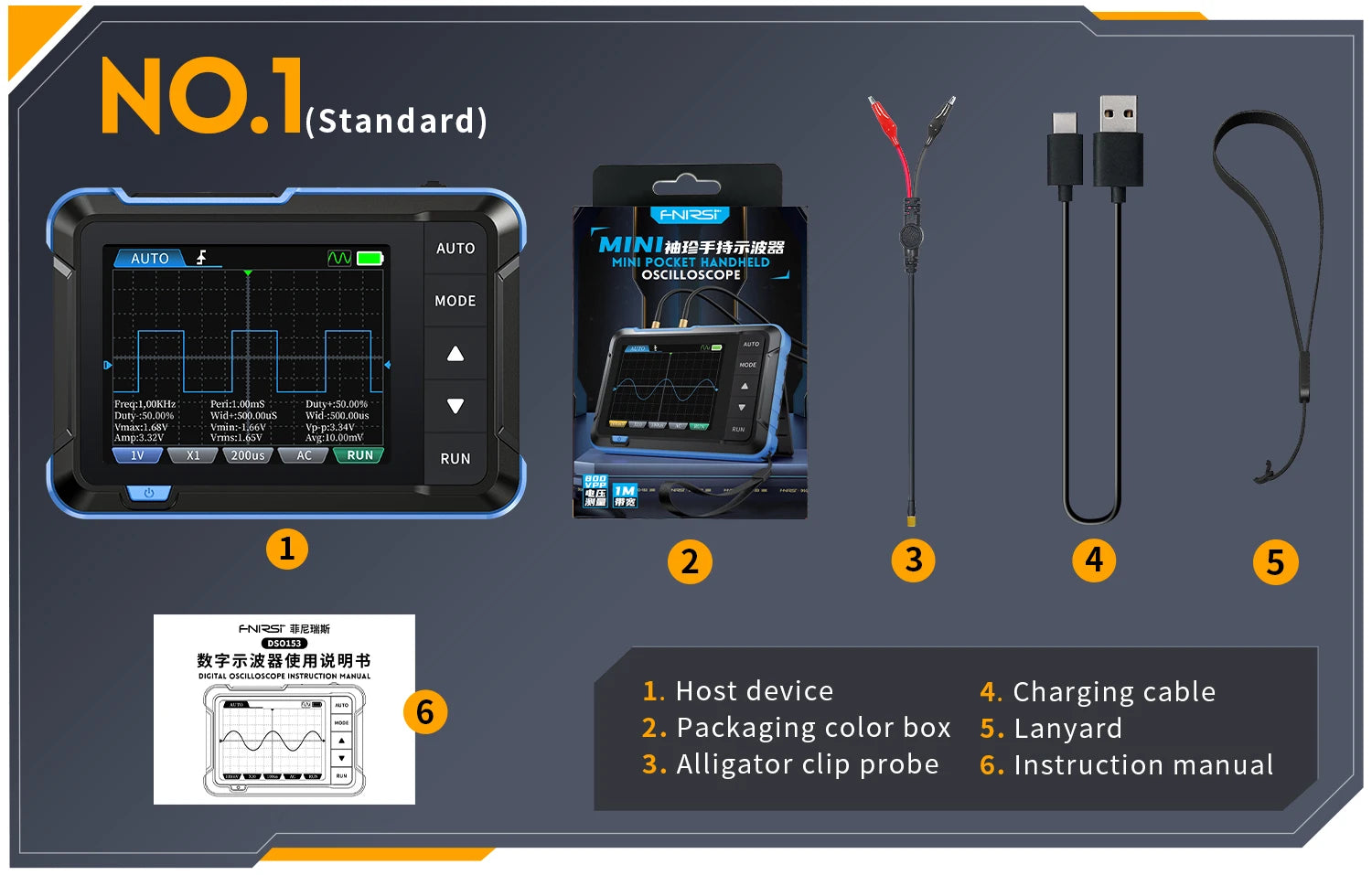

NO.1(Standard)
DSO152 Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1

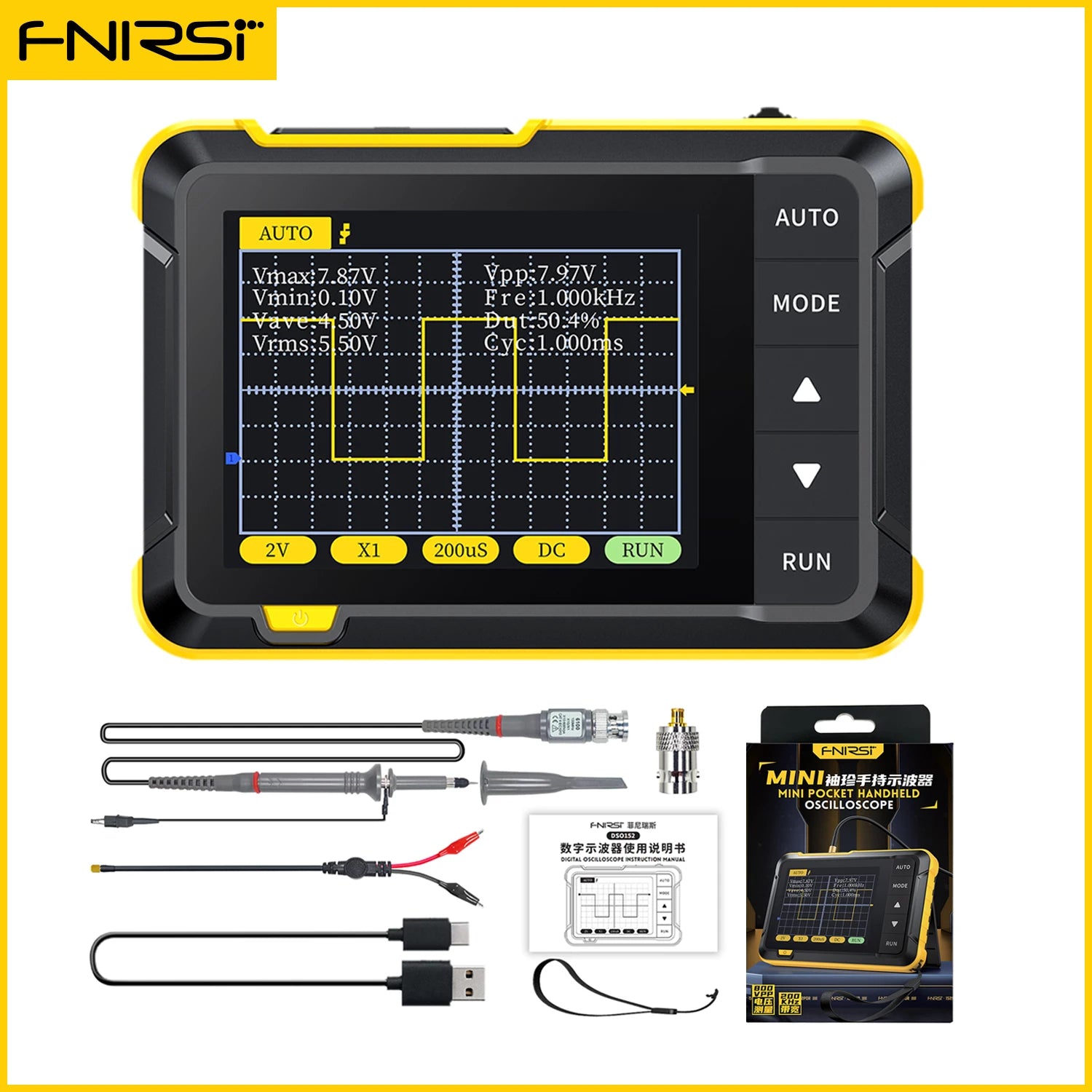

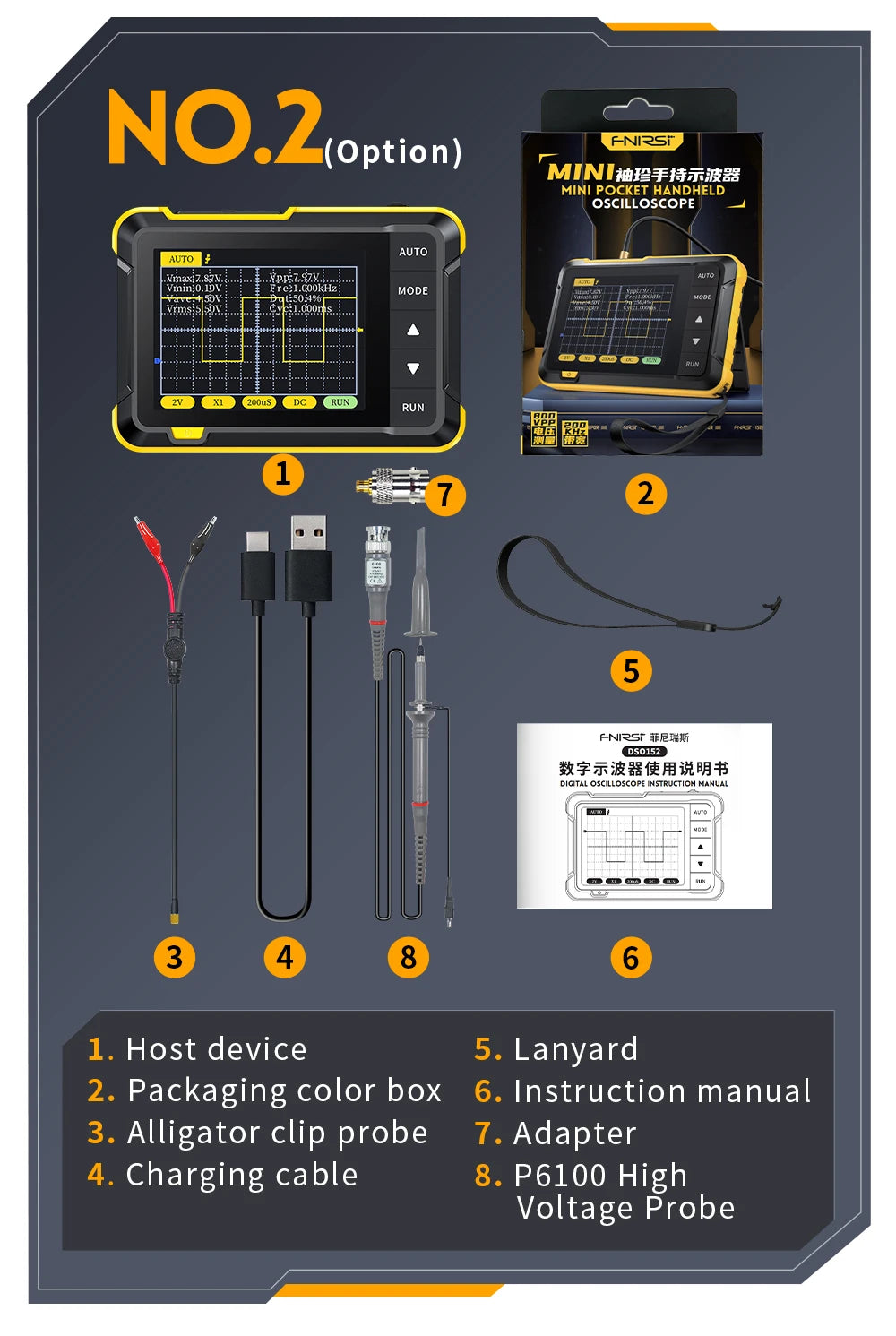

NO.2(Option)
DSO 152 Host device *1
P6100 High Voltage Probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1
